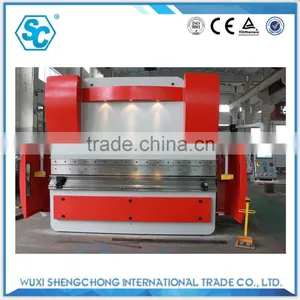

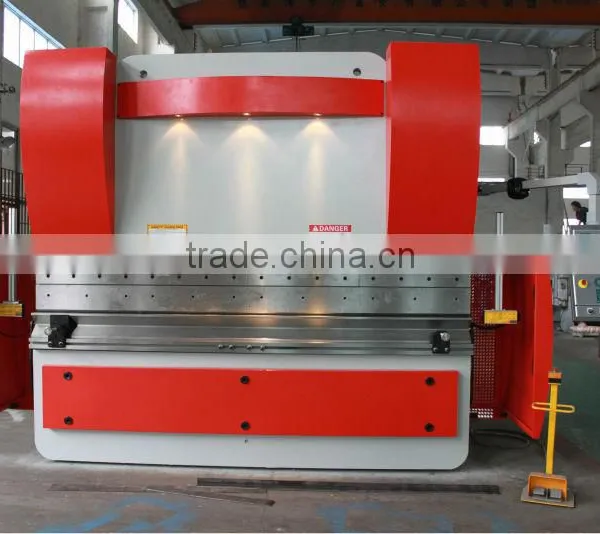

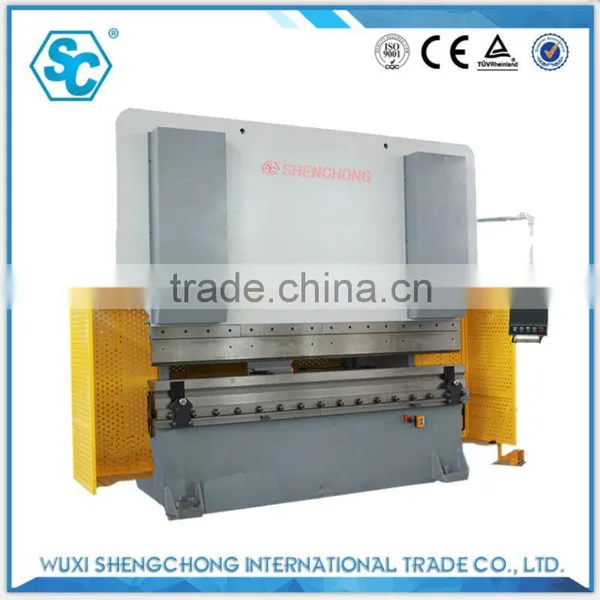

Help CenterWE67K 300/3200 Cnc Heavy Duty Hydraulic Press Brake for Industrial Chassis
Related Products
-
CNC Press Brake,hydraulic Press Brake,metal Plate Bending MachineUS$ 70,000 - 80,000MOQ: 1 Set -
Hydraulic CNC Press Brake,bending Machine ,CNC Control SystemUS$ 57,960 - 58,060MOQ: 1 Set
-
Hydraulic Guillotine Shears Machine,metal Plate Cutting Machine,plates Hydraulic Plate Guillotine Machine 8mmUS$ 15,750 - 22,500MOQ: 1 Set
-
WC67Y E10 Digital Screen Hydraulic Press BrakeUS$ 8,980 - 12,830MOQ: 1 Set
-
WC67Y Estun E10 Digital Readout Hydraulic Press BrakeUS$ 15,860 - 22,660MOQ: 1 Set
The Main Structure Character
Welded steel plate, the frame consists of right and left wall boards, working table, oil box, groove steel etc. Work table consist of 3 plates. The stress of the parts has been eliminated by vibration. The machine enjoys high accuracy and high strength and good rigidity.
Feature and Advantages:
The elctrolyte servo system of this machine is an inner closing ring control system.It can check out the synchro discrepancies of the slide by the movement of the light ruler.And the electrolyte servo valve can correct the slide discrepancies. This can make the slide always be parallel to the working table.

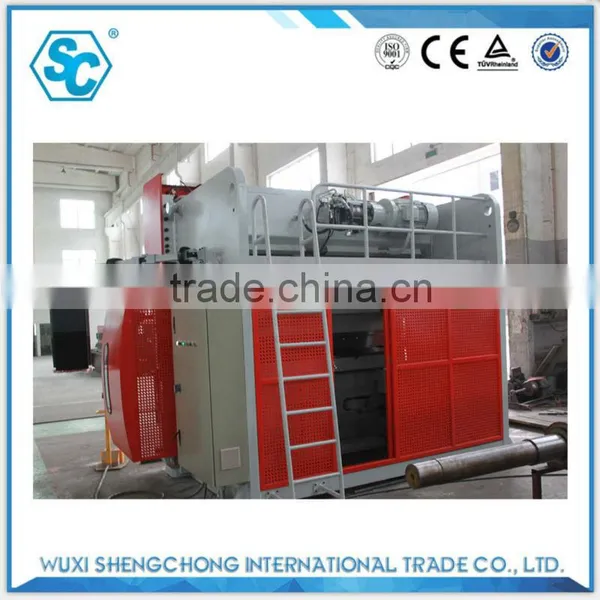

1. Hydraulic system
It is a complete electrolyte servo synchro CNC controlled press brake.
It adopts the most world advanced electrolyte servo system.The hydralic force is very reasonabley designed and also easy for installation.It minimizes the quantities of oil passages and connectings in which way the reliability and safety can be guaranteed.
2.Mechanical system
(1) It adopts the electrolyte synchro control system whose acuracy is very high.
(2) It adopts the working table compensation structure in which way the accuracy can be improved.
(3)Ball screw on the backgauge, moving without gap enhancing the accuracy of positioning.
3. Synchro control system

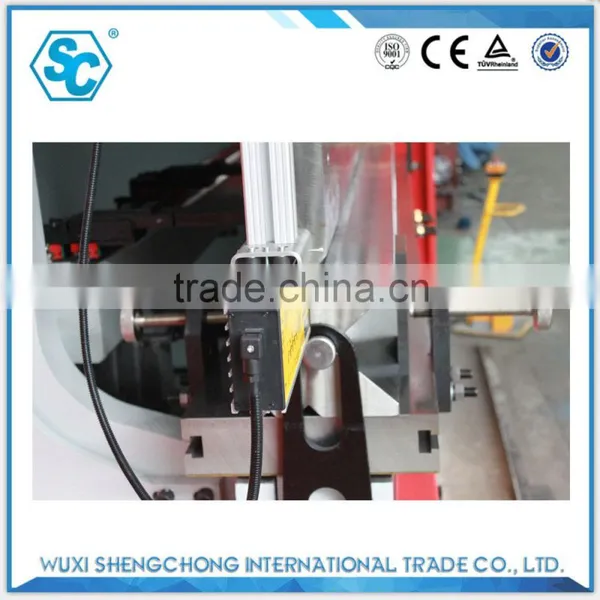

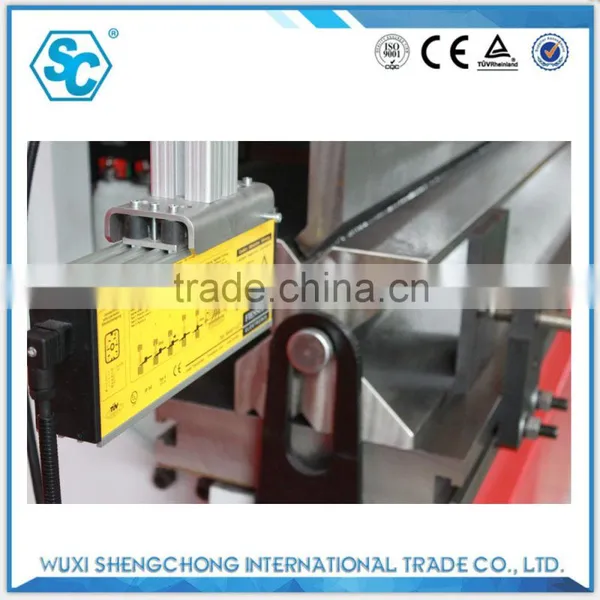

This machine adopts the electrolyte servo system whose accuracy is very high.Two light rulers (Y1-Y2) have been installed at the two sides of the machine to measure the exact distances between the slide two ends and the working table. The rulers are connected with the working table. In this way, the wallboard deformation will not affect the slide positioning accuracy.The position data will be delivered to the CNC system and then it can check out the servo valve control signal (S2-S2).
4. CNC cotrol system: S600
Specification |
WE67K-300/3200 |
Norminal pressure |
3000KN |
Length of table |
3200mm |
Distance between housing |
2700mm |
Throat depth |
400mm |
Stroke |
250mm |
Open Height |
560mm |
Main Motor Power |
22KW |
Overall dimension |
3280×2200×3200mm |
Weight |
18TON |
Electronic synchronization CNC Hydraulic Brake press WE67K series Technical parameter
| Model | Nominal | length | Distance | Throat | Stroke | Open | Main Motor | Gross | Dimensions(mm) |
| Pressure | Of Table | Betwween | Depth | (MM) | Height | (KW) | Weight | (LxWxH) | |
| (KN) | (mm) | Housings | (mm) | (mm) | (ton) | ||||
| (mm) | |||||||||
| WE67K 63/2500 | 630 | 2500 | 2000 | 320 | 150 | 380 | 5.5 | 4.5 | 2825x1650x2350 |
| WE67K 63/3200 | 630 | 3200 | 2700 | 320 | 150 | 380 | 5.5 | 5.5 | 3800x1650x2450 |
| WE67K 100/3200 | 1000 | 3200 | 2700 | 400 | 180 | 440 | 7.5 | 7.5 | 3810x1750x2530 |
| WE67K 125/3200 | 1250 | 3200 | 2700 | 400 | 180 | 440 | 7.5 | 8.5 | 3820x1800x2530 |
| WE67K 125/4000 | 1250 | 4000 | 3200 | 400 | 180 | 440 | 7.5 | 9.8 | 4600x1800x2580 |
| WE67K 160x3200 | 1600 | 3200 | 2700 | 400 | 180 | 450 | 11 | 10.8 | 3830x1870x2560 |
| WE67K 160x4000 | 1600 | 4000 | 3200 | 400 | 180 | 450 | 11 | 12.8 | 4610x1920x2700 |
| WE67K 200x3200 | 2000 | 3200 | 2700 | 400 | 180 | 450 | 11 | 12.5 | 3900x1920x2560 |
| WE67K 200x4000 | 2000 | 4000 | 3200 | 400 | 180 | 450 | 11 | 13.8 | 4620x1950x2700 |
| WE67K 200x6000 | 2000 | 6000 | 4800 | 400 | 180 | 480 | 11 | 22 | 6080x1950x2900 |
| WE67K 250x3200 | 2500 | 3200 | 2700 | 400 | 200 | 480 | 15 | 16.5 | 3900x2150x2950 |
| WE67K 250x4000 | 2500 | 4000 | 3200 | 400 | 200 | 480 | 15 | 17.5 | 4080x2150x3000 |
| WE67K 250x5000 | 2500 | 5000 | 4000 | 400 | 250 | 560 | 15 | 17.5 | 5080x2200x3200 |
| WE67K 250x6000 | 2500 | 6000 | 4800 | 400 | 250 | 560 | 15 | 21 | 6080x2200x3400 |
| WE67K 300x3200 | 3000 | 3200 | 2700 | 400 | 250 | 560 | 22 | 17.5 | 3280x2180x3100 |
| WE67K 300x4000 | 3000 | 4000 | 3200 | 400 | 250 | 560 | 22 | 20.5 | 4080x2250x3200 |
| WE67K 300x5000 | 3000 | 5000 | 4000 | 400 | 250 | 560 | 22 | 22 | 5100x2300x3300 |
| WE67K 300x6000 | 3000 | 6000 | 4800 | 400 | 250 | 560 | 22 | 25 | 6150x2300x3500 |
| WE67K 400/4000 | 4000 | 4000 | 3200 | 400 | 320 | 630 | 30 | 26 | 4100x2400x4000 |
| WE67K 400/5000 | 4000 | 5000 | 4000 | 500 | 320 | 630 | 30 | 29 | 5200x2600x4150 |
| WE67K 400/6000 | 4000 | 6000 | 4800 | 500 | 320 | 630 | 30 | 38.5 | 6200x2650x4300 |
| WE67K 500/4000 | 5000 | 4000 | 3200 | 600 | 320 | 630 | 37 | 41 | 4200x2800x4100 |
| WE67K 500/5000 | 5000 | 5000 | 4000 | 600 | 320 | 630 | 37 | 46.5 | 5200x2800x4200 |
| WE67K 500/6000 | 5000 | 6000 | 4800 | 600 | 320 | 630 | 37 | 52 | 6200x2800x5200 |
| WE67K 600/5000 | 6000 | 5000 | 4000 | 600 | 320 | 630 | 45 | 57 | 5200x3000x5300 |
| WE67K 600/6000 | 6000 | 6000 | 4800 | 600 | 320 | 630 | 45 | 59.5 | 6200x3000x5600 |
| WE67K 800/5000 | 6000 | 5000 | 4000 | 700 | 350 | 800 | 55 | 76.8 | 5200x3500x5600 |
| WE67K 800/6000 | 5000 | 6000 | 4800 | 700 | 350 | 800 | 55 | 87.5 | 6200x3500x5800 |
| WE67K 1000/6000 | 10000 | 6000 | 4800 | 800 | 350 | 800 | 55 | 108 | 6200x4100x6900 |
We are devote to promoting overseas and domestic machinery development over 10 years of business trade and technology development in one of the high-tech enterprise.
Our company’s main business is focus on sheet metal processing machines tools and manufacture equipments, such as shear processing line, slitting line, laser cutting machine, CNC flame cutting machine, hydraulic bending machine, hydraulic cutting machine etc. The company has a strong research and development of high technology and quality professional R&D team, strong technical force, has a number of highly qualified development designers. Powerful, professional R&D team, advanced and perfect sales service concept, making our company’s products at home and abroad, have high visibility and market share. Meanwhile, we will continue adhering to the principle of reputation first, customer first, always put the customer’s interests first, wholeheartedly to offer each of our customers the best products and the best quality service.
Our products are widely exported to Asia, Africa, Australia, the Middle East, South America, Europe and other countries, has a good reputation, we also provide a range of service for equipment installation, technology consulting and support. We based on the spirit of large enterprises to build brand objectives, adhere steady and long-term operation.
Factory building
Workshop
Factory office
Why Choose Us?
1.Our guarantee time is 13 months from B/L Date ,If any component is damaged during guarantee time, we can send the component to the customer By DHL,TNT freely .
2.Our factory can send our engineer to the customer’s factory install, commission and training freely .The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely
3.Our factory provide the service for the customer forever, if the customer need operation help,can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service
How about your machine quality?
Shenchong(SC) is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are SIECC machines.And where there are our machines,there are good reputation and terminal user satisfaction.
Whether the machine price can be more discount
Shenchong(SC) always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
Actually Shenchong(SC) also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
Do you accept L/C payment term?
Yes,we accept 100% L/C at sign from almost all countries.
How to operate your machine?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed .
