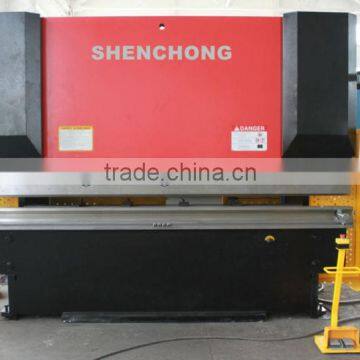

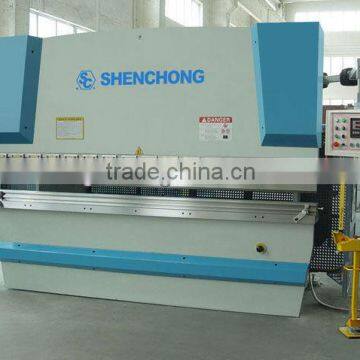

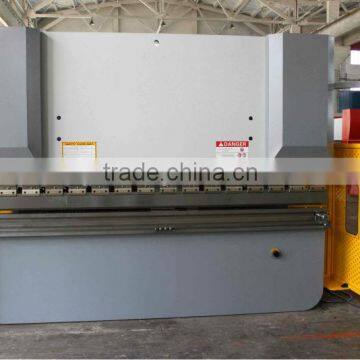

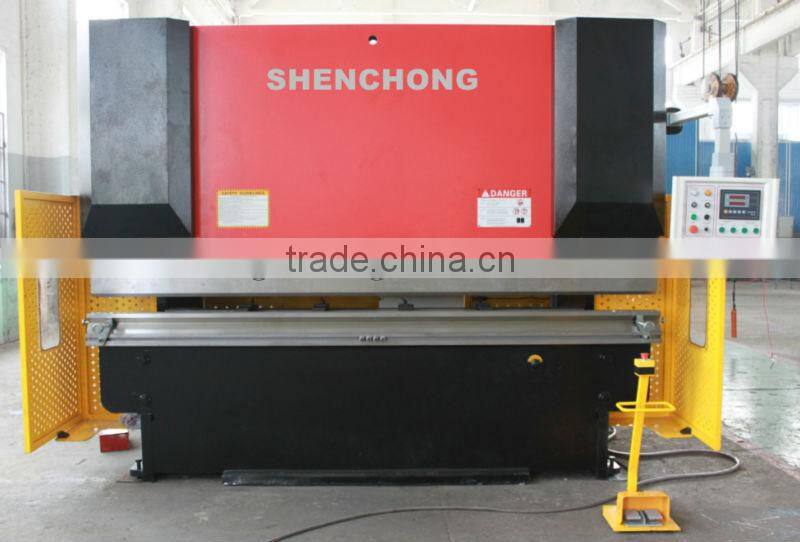

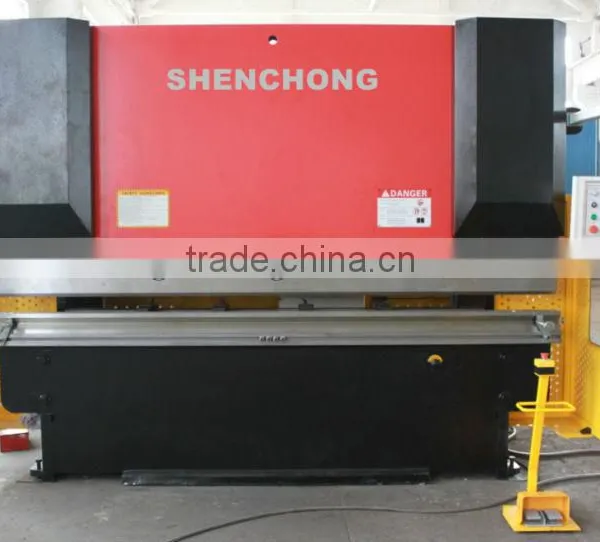

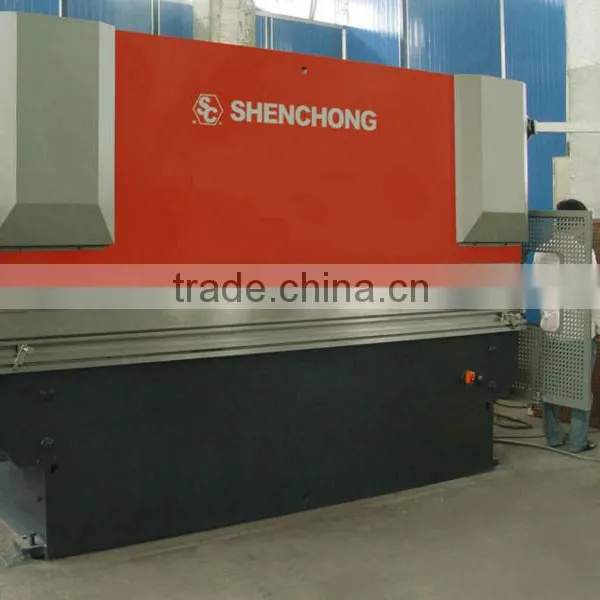

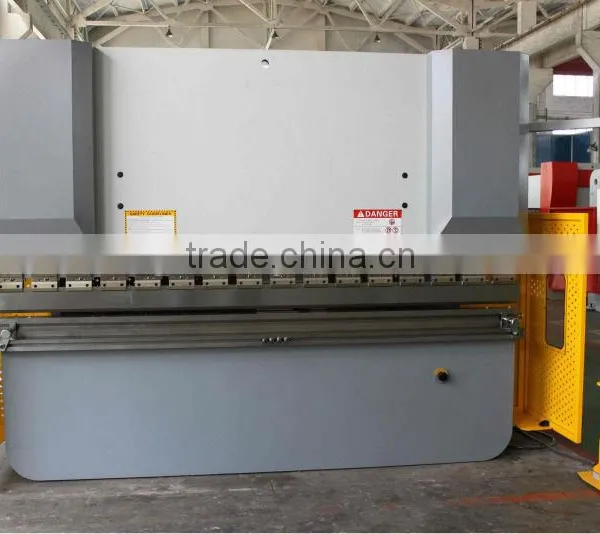

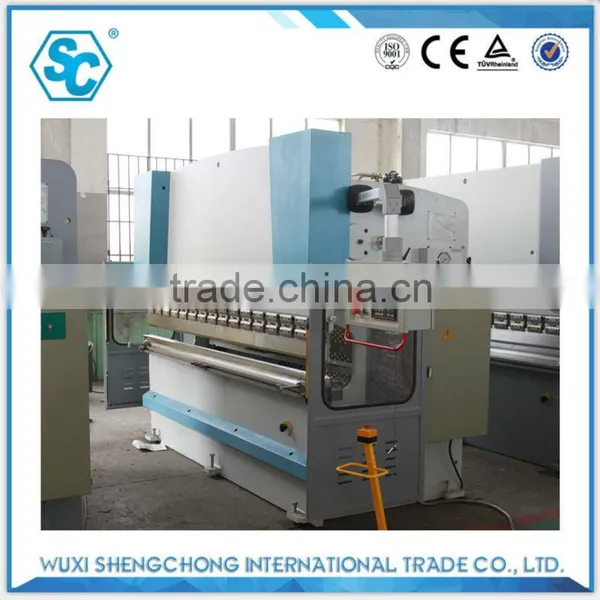

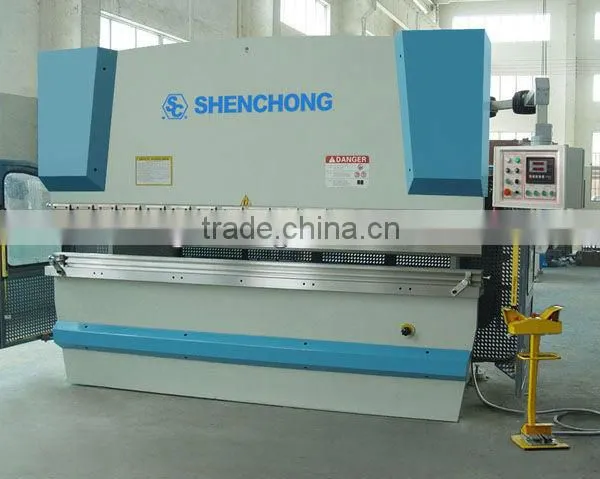

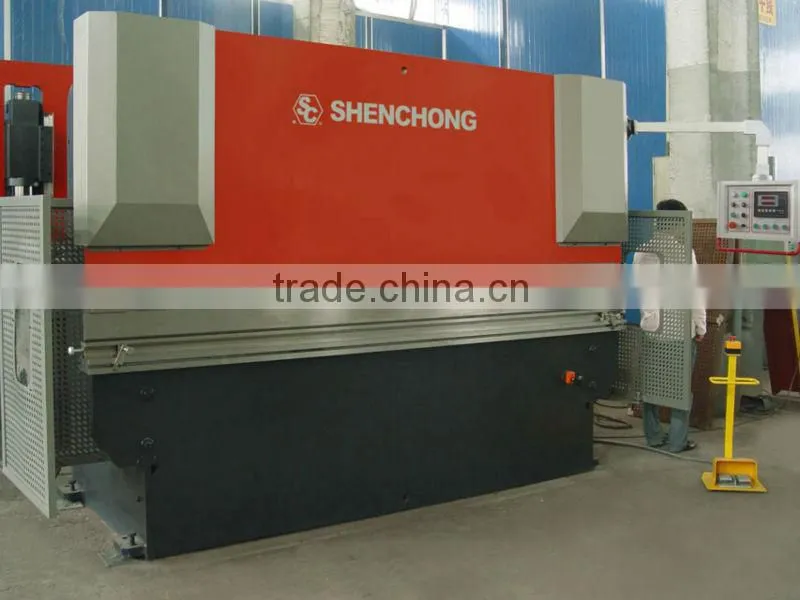

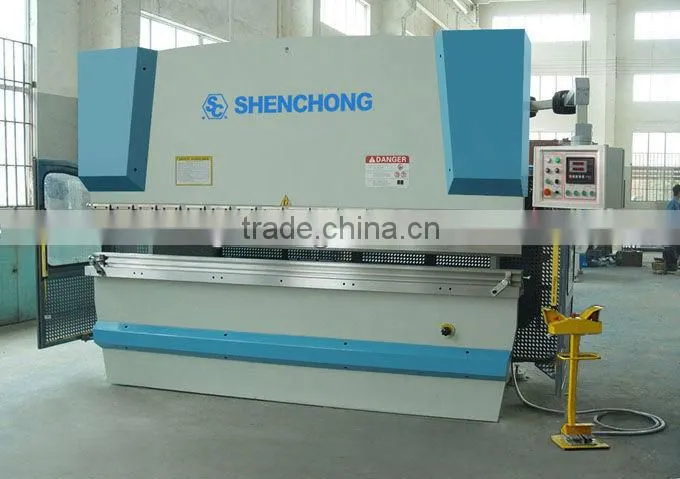

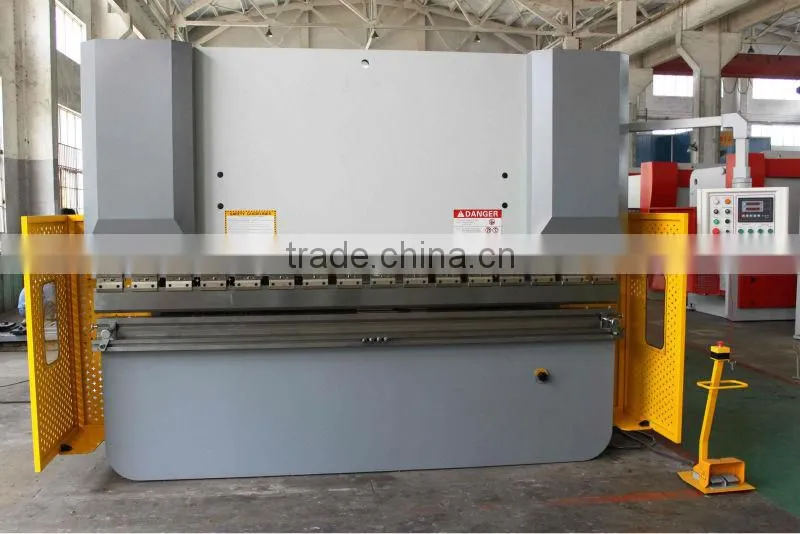

Hydraulic Press Brake bending machine,bending machine WC67Y 200/3200
- 100 Set / Sets per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
- 10mm hot press brake bending machine for brake pad
- Custom bending press brake and shearing machine
- Square steel tube press brake machine for making gutters
- CNC hydraulic press brake steel bar cutting and bending machine
- Crank type bending machine heavy duty press brake 125t 3200
- 6 axes cnc press brake machine hydraulic for making gutters ceramic
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | SC |
Model Number: | WC67Y 200/3200 | Machine Type: | Press Brake | Raw Material: | Sheet / Plate Rolling |
Material / Metal Processed: | Carbon Steel | Power: | Hydraulic | Automation: | Automatic |
Extra Services: | Machining | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
The Main Structure Character
Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.
Feature and Advantages:
1. Integrated hydraulic control system is more reliable and easy for maintenance.
2. The slide synchro system adopts steel torsion bar synchro system with very simple structure but very high accuracy. 2 ends of slide has 2 sychnro fork which make the slides movement is always parallel to the working table. And this will make the movement effect balanced during operation. The system uses upper die compensation to improve the brake precision.
3. The machine is a kind of steel torsion bar sychnro brake, which is the third generation of brake. Electronic control of back gauge and ram stroke, data displayed and precision control by man. Hydraulic power cell construction is convenient to install, which limit the oil route and connector quantity to minimize integrated hydraulic valve block. Block route and wide range of speed control, work steadily.
4. Main components: Schneider electrical components NOK sealing components
5. Optional accessories: Esturn E10 counter,pendant-control-box German Herbiger valves or Italy Aron valves Light curtain Ball screw and linear guide of backgauge Tooling clamping device
Technical parameter
Specification | WC67Y-200/3200 |
Norminal pressure | 2000KN |
Length of table | 3200mm |
Distance between housing | 2600mm |
Throat depth | 350mm |
Stroke | 190mm |
Open Height | 460m |
Main Motor Power | 11KW |
Overall dimension | 3750×1815×2715mm |
Weight | 11TON |
Hydraulic Torsion Bar Synchro Press Brake WC67Y series Technical parameter
1.Our advantage
Shen Chong (SC) is a mature brand in CHINA, after more than 20 years’ research, our design from technology, structure, security and precision has enhanced greatly. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.
2.Certification
3.Exhibition
we attend exhibitions to other countries every year. Like Australian, India, Mexico,Russia,Pakistan,etc.
4.Customer visit
Up to now, we have many clients to visit our factory, they are end-user and agency. They are from Australia, India, Chile, Saudi Arabia,etc.
Sheng Chong Machine is a high-tech enterprise integrated by R&D, production and after-sale service in CNC hydraulic forging Machine.

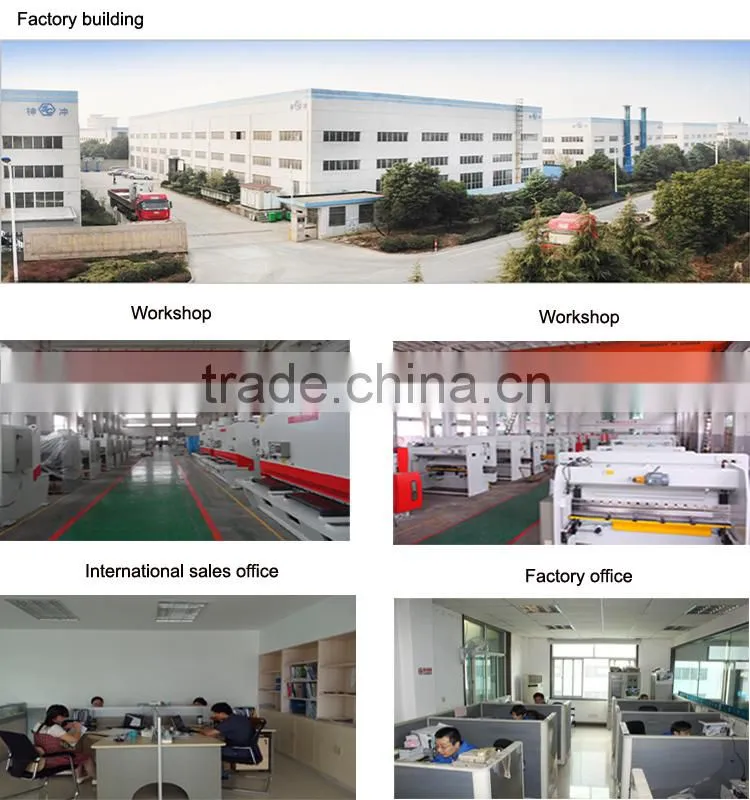

Our factory occupies more than 30,000 m2, it has excellent and professional technical team, 10 R&D personnel with strong developing capability; around 200 workers producing more than 800 sets machines each year, and professional after-sales team to solve various problems which the customer may encounter in using the machine. With new design, fine technology, we get a good evaluation and brand effect in Beijing Machine tool Show, Italy Milan machine tool exhibition, Australia machinery exhibition etc.
Our main products contain QC11K series CNC guillotine cutting machine, QC11Y series hydraulic shearing machine, QC11YK series fast hydraulic shearing machine for metal plate, QC12K series NC hydraulic swing beam shear machine,QC12Y series hydraulic swing beam cutting machine; WC67Y series hydraulic press brake, WC67K series CNC hydraulic bending machine,WE67K series CNC electro-hydraulic synchronization press brake; SW11C series 3 roller rolling machine, W12NC series 4 rollers rolling machine for metal plate; Laser cutting machine, flame & plasma cutting machine; Automatic slitting machine line; Bending mould for press brake, blade for shearing machine etc.
So far, our company has been serving more than thousands of customers in light industry, aviation, metallurgy, instrumentation, electrical, stainless steel products, construction and decoration and other industries.
With high quality hydraulic machine, competitive price and excellent service, we have gained great reputation from more and more domestic and foreign customers!
1. Are you a trading company or factory?
--- We are factory occupying more than 30,000 m2, with excellent and professional technical team, 10 R&D personnel, professional after-sales team, and around 200 workers producing more than 800sets machines each year.
2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time the technical guidance and accessories are provided for free.
5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.
6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.
More kinds machines you can have a widely choice:
Number | Model | Forging machinery |
1 | QC11Y | hydraulic shearing machine |
2 | QC11K | cnc shearing machine |
3 | QC11YK | rapid hydraulic shearing machine |
4 | WC67Y | hydraulic bending machine |
5 | WC67K | cnc bending machine |
6 | WE67K | electro-hydraulic synchronous CNC bending machine |
7 | WG67K | high speed bending machine |
8 | SW11SNC | rolling machine series |
