Specifications
CE approvedspecial chuck available
Speed control by inverter
Foot braker available
Revolving and tilting design
Welding positioner function

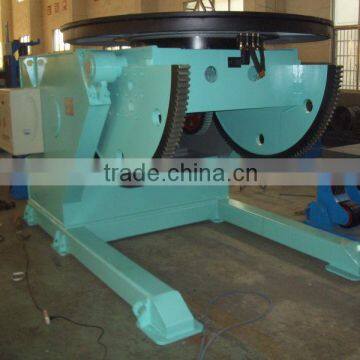

Welding turning positioner is mainly used to place the workpiece in the best position for welding and assembling with the worktable elevating, rotation, tilting, which can be used for various automatic or manual welding, butt welding or face welding of pipe, as well as welding of shafts, discs, barrel, etc, with advantages of compact volume, good appearance, light weight and easy operationThe positioner can be supplied for interfacing with robot or welding manipulators, to realize the welding automation.
Feature and advantage
1. Welding positioner consists of turning and overturning mechanism of working table .
2.Turning and overturning make the workpiece to reach a reasonable welding and fitting angle by the elevating of the working table,the turning of the working table is frequency conversion which can get a satisfactiry welding speed.
3.Beacause of the offset from center and gravity center ,To the longer and more offset from gravity center workpiece,large model should be chosen.We can supply you the suitable product.
HBJ Series welding positioner main parameter
Type | HBJ-01 | HBJ-03 | HBJ-06 | HJB-12 | HBJ-30 | HBJ-50 | HBJ-100 | |
Rated weight bearing (kg) | 100 | 300 | 600 | 1200 | 3000 | 5000 | 10000 | |
Overturning velocity(rpm) | 0.4-4 | 0.1-1 | 0.09-0.9 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.2 | |
Speed of table(rpm) | handle | 1.1 | 0.67 | 0.23 | 0.14 | 0.14 | ||
Size of working table(mm) | 400 | 600 | 1000 | 1200 | 1400 | 1500 | 2000 | |
Turning angle (°) | 0-120 | 0-90 | 0-90 | 0-120 | ||||
Motor power | Turning | 0.06 | 0.37 | 0.75 | 1.1 | 1.5 | 3 | 5.5 |
Overturning | 0.75 | 2.2 | 1.5 | 3 | 5.5 | |||
Ways of setting | Frequency conversion stepless | Electric magnetism stepless speed | ||||||
Max eccentric distance(mm) | 100 | 100 | 100 | 150 | 200 | 300 | 400 | |
Max distance of gravity center(mm) | 150 | 150 | 150 | 200 | 200 | 300 | 400 | |
Max turning diameter (mm) | 600 | 800 | 1500 | 2050 | 2100 | 2500 | 3240 | |
