Help CenterWINSUN 1 Locking 12V Relay Module Single Bistable Switch Button Start and Stop the High Level of Positive Trigger
Related Products
-
WINSUN MQ-2 12V Smoke Time Delay Relay Module MQ-2 Smoke Alarm Liquefied Gas AlarmUS$ 0.01 - 1,000MOQ: 1 Piece -
WINSUN 12V Human Body Induction Switch With Super High Sensitivity Vibration Adjustable Time Delay Switch Module Vibration AlarmUS$ 0.01 - 1,000MOQ: 1 Piece
-
WINSUN 4 5V Relay Module Photoelectric Isolation Optocoupler Chip TTL PLC ControlUS$ 0.01 - 1,000MOQ: 1 Piece
-
WINSUN 12V Soil Moisture is Higher Than the Starting Relay Module Automatic Watering and Humidity Control of AC 220VUS$ 0.01 - 1,000MOQ: 1 Piece
-
WINSUN Factory Direct High Power 12V Relay Module 30A Home Appliance Control Large Current Relay ModuleUS$ 0.01 - 1,000MOQ: 1 Piece
The outer contact of the module is the high level trigger mode, the trigger signal can be the high level of 5-12V trigger signal, and the button switch signal.
Default for no eternal contact,Need to contact the hair line of friends, please click the link below to buy:
/item.htm? Spm=2013.1.w2817858303580.31.9ED2cc&id=17488729606?
Product use:
White seats are short answer board, the corresponding relay locked againShort pick up the white seat at both ends of the board, relay off, also can be eternal trigger switch, and high level trigger.
Product features:
1 adopt double sided board design PCB, 4 way independent self lock design, mutual not interference;
2 stable and reliable chip is used to control, stable and reliable performance, strong anti-interference ability, will not trigger, the performance is far superior to CD4013;
3 with high power supply voltage regulator tube to provide sufficient and stable voltage, and has enough cooling holes, to ensure that the product long time stable and reliable work;
4 with anti - power supply connected to anti - protection diodes, short - time power supply to the product without any damage to the product;
5 the use of pine music authentic relay control load, in the 10A 250V (AC) and 10A 30V (DC) under the load can bear;
6 trigger can also be eternal trigger switch, the product is equipped with a wiring seat and lead, more convenient to use;
7 trigger can also be triggered by other sensor modules, as long as it is 5V or 12V high level trigger are effective, the function has more etended;
Relay output contact with double - line, can withstand large current more secure
Electrical parameters:
Supply voltage: 12V (DC) supply current: more than 800mA
Load: 10A 250V (AC) or 10A 30V (DC)
Life: 1 million times
Product instruction:
1 power supply to meet the scope of use, DC 12V;
2 power supply according to the requirements of the line, can not be reversed, although there is a protective circuit, but not a long time to reverse;
3 products using a voltage regulator tube is a slight fever, is a normal phenomenon, the relay for a long time to work there are normal heating phenomenon, is a normal phenomenon;
4 load power to give the relay load has a certain margin, should avoid high power (2000W) and a long time working environment, the product life will have a certain impact.
List of hair:
11

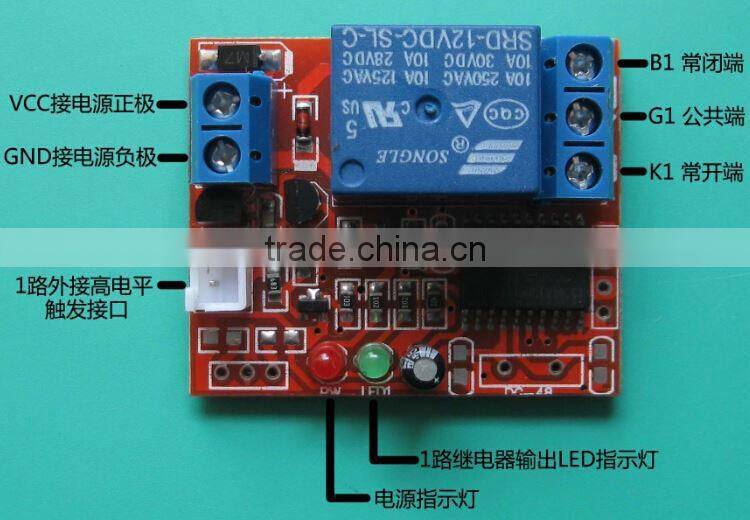

The relay output terminal pin is stated as follows:
The above method is equivalent to the following control circuit
Relay module control DC equipment wiring diagram:
Need boes to be able to open the following link to buy
/item.htm?id=18427495359
Need to contact the hair line of friends, please click the link below to buy:
/item.htm? Spm=2013.1.w2817858303580.31.9ED2cc&id=17488729606?
