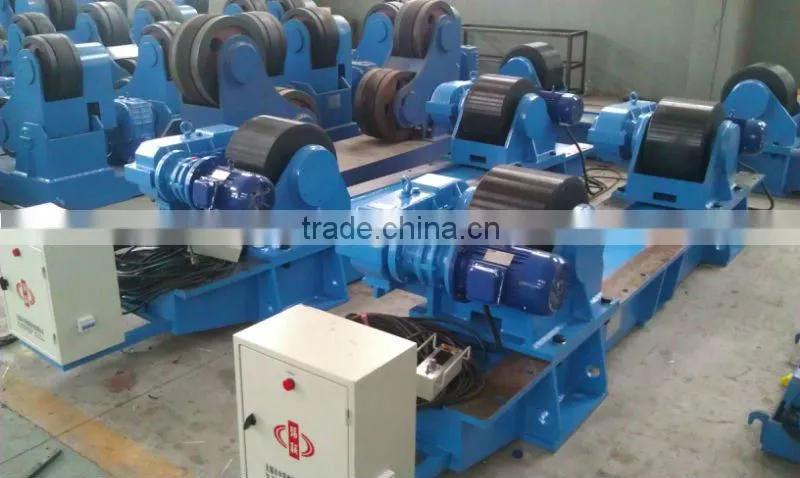

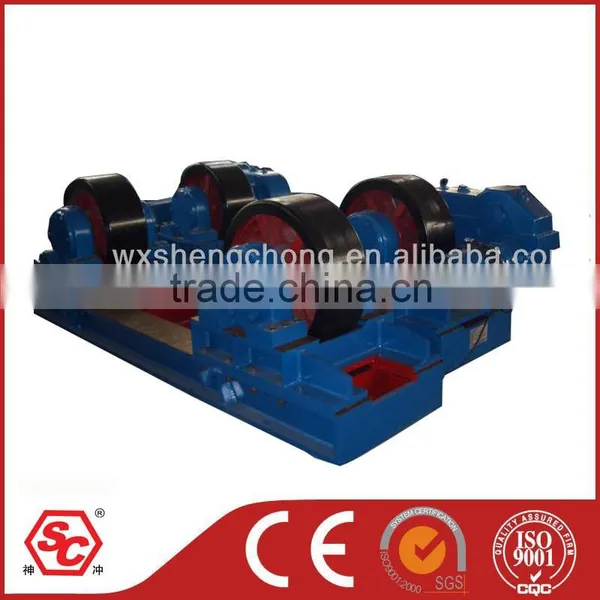

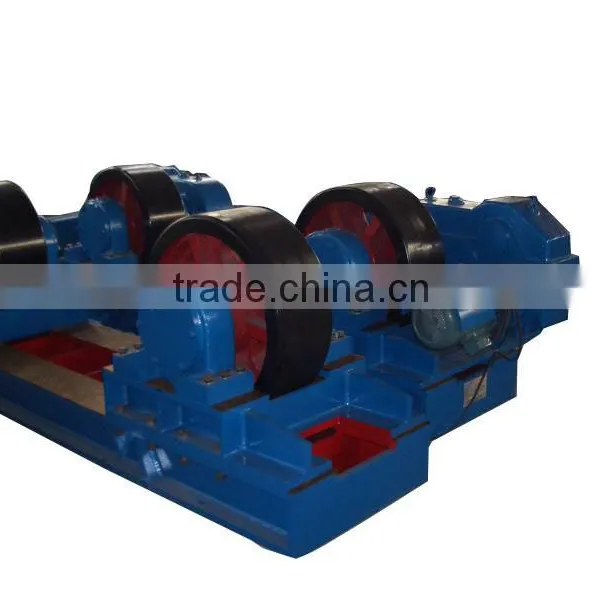

Screw,bolt-adjustable turning roller Function
It is mainly used in switching position of cyliner work piece, to get the ideal welding position and speed. It usually work matching with the equipments, like mainpulator and welding machines to form the auto-welding system. It also can be used in manual welding, assembling polishing and crack-defection, etc.
Main features
1. This kind of welding rotator equipment(adjustable) is using screw or bolt for regulation,large ton adopts prepared screw or bolt to adjust central distance of roller,so as to adjust to the change of diameter of work piece.
2. Steel glue assembly roller,long ton adopts full steel roller,which feasures in large loading capacity and driven capacity.
3. Excellent speed reducing driven organ
4. Frequency conversion stepless speed rregulation,which is simple and reliable.
5. Manual control box operation,which can be remote controlled.

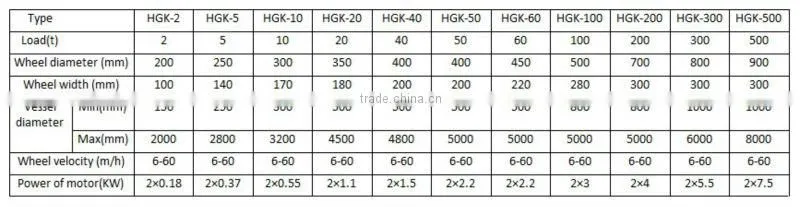

Main technology parameter
