Specifications
wood planing machine MB5241.for flat or side planing etc
2.easy for private or factory use
3.super quality
4.strong body

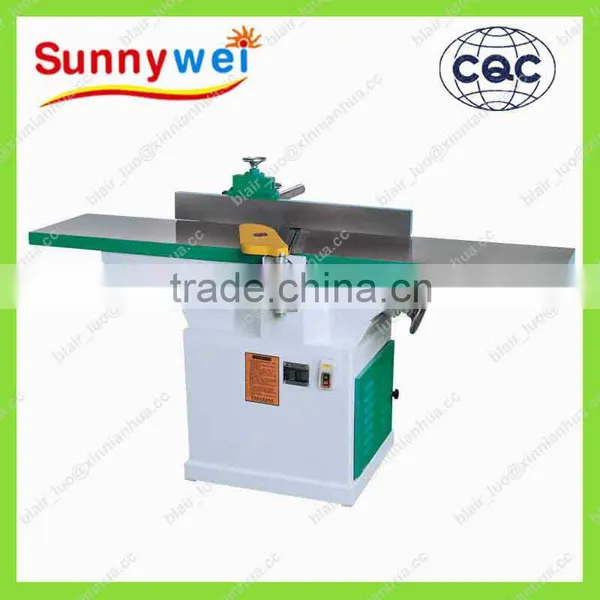

Wood Bench Planer MB524
USE OF THE MACHINE
It is the common equipment used in processing and solid wood, flat planing for the wooden parts.
Model |
MB524 |
MB523 |
Max planing width |
400mm |
290mm |
Max planing depth |
5mm |
5mm |
Height of front worktable |
5mm |
5mm |
Tilting angle of guide plate |
45°~90° |
45°~90° |
Size of worktable (L×W) |
2080×420mm |
1800X320MM |
Rotary speed of main arbor |
5200 r/min |
5200 r/min |
Motor power / Voltage frequency |
3kw(4HP) /380V 50Hz |
2.2kw(3HP) /380V 50Hz |
Weight of machine |
480kg |
400KG |
Overall dimensions (L×W×H) |
2080×920×1080mm |
1820X800X1000mm |
Strength:
1.cast iron woktable
2.with quality electric part
3.planing many kinds of the panel material
cessing the material in the shape what u want
5.safty and high protection
6.motor add over load protection
7.beveling plane
thank you for your attention!!
