Home > Products > Mortise Device > MS365 Woodworking Groove Cutting Machine

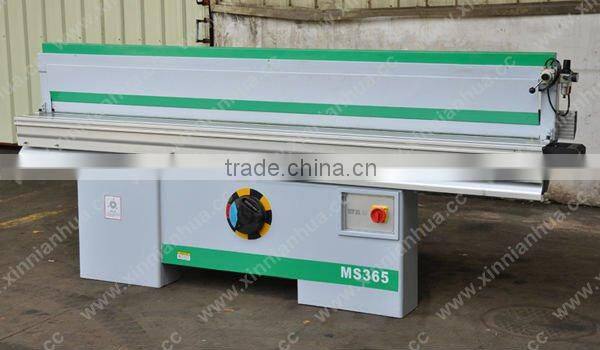

MS365 Woodworking Groove Cutting Machine
- Shunde/Guangzhou/Shenzhen/Hongkong
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Xinnianhua | |
| Model Number | MS365 |
Product Description
Specifications
Groove cutting machine1.high precision
2.quality bearing
3.excellent parts
4.pneumatic pressing materials function
USE OF THE MACHINE
This machine is mainly used for milling voncave-convex tenon slot ,long slot finishing,the wooden door,wood flooring
processing Mortise the best equipment,but also can be used for planing surface finishing curved and straight edge,
bevel edge processing the use of mold can be made by a variety of wooden lines for wood furniture industry.
MAIN SPECIFICATION AND TECHNOLOGY PARAMETER
Model | MS365 |
Slide worktable max distance | 3000mm |
Max processing length | 2600mm |
Max working width | 5mm |
Max working deept | 5mm |
Dia.of cutter spindle | Φ35mm |
Rotary speed of cutter spindle | 9700/7500/5200 r/min |
Main spindle lifting height | 100mm |
Install power | 4kw(5.5HP) / 380V 50HZ |
Consumption of pressure | 0.6mpa |
Weight of machine | 560kg |
Overall dimensions(L×W×H) | 2800×750×1200mm |
Woodworking groove cutting machine
