Specifications
Circular Sawdevice optional
2.excellent electrical parts
3.power:4/5.5kw
4.sliding table length;1200/1600mm

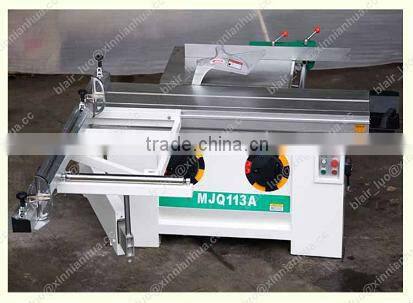

Circular Saw Machine Wood Cutting Machine For Sell
USE OF THE MACHINE
The machine is applied for processing the wood that require vertical horizontal or saw at different angle.Easy and safe to operate,working exactly,it is suitable for processing furniture and speaker box etc.
MAIN SPECIFICATION AND TECHNOLOGY PARAMETER
Model |
MJQ113A |
Max sawing length |
1600mm |
Max sawing thickness (90°) |
70mm |
Max sawing thickness(45°) |
50mm |
Max saw blade dimension |
Φ305×Φ30mm |
Saw blade tilting angle |
0°-45° |
Main spindle rotary speed |
4100 r/min |
Motor power / Voltage frequency |
4kw(5.5HP) / 380V 50Hz |
Weight of machine |
395kg |
Overall dimensions (L×W×H) |
2150×2300×1066mm |
Strengths:
1.high quality of the spindle bearing
2.stable running,easy to operate,working exactly
3.the error of straightness on whole distance of travel is less than 0.15mm.
4.accurately process
5.nece-sarry precise panel saw to process panel funiture
6.with quality slding table, more safe, and more efficiency than the normal ones
Detail Pictures:
Thank you for your attention!
