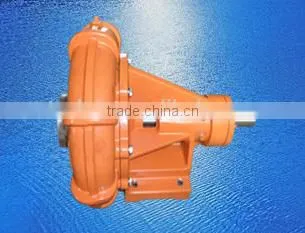

Centrifugal Counter-clockwise Clear Water Hydraulic Water Pump with Hydraulic Motor
Features:
Material: aluminum material specifically so that the water pump is light weighted and easy to manufacture
Parts: the shaft is made of stainless steel; the impeller is manufactured within the tolerance of 0.001”; the bearing and mechanical seal are of the first-class quality
Fine Property: every part within the pump is carefully designed so that they can work together well and guarantee fine property
Quiet: the water pump makes low noise during work because of our thoughtful design.
Parameter: water pump
WP-CW ( Clockwise Direction )
Rotate Speed: 1450rpm-3000rpm
Flow Rate: ≤3000l/min / 800 gl/min
HEAD: ≤50m / 175 feet
Pressure: ≤0.5Mpa / 75psi
Inlet/Outlet Connection Type: Victaulic Type Grooved Suction and Discharge (clamping system)
Inlet: 4.00 inches
Outlet: 3.00 inches
Outlet Angle Adjustable: (30° 45° 60° 90° 120° 180° 270° etc.)
Max. Operating Temp: 60°C (140°F)
Impeller Diameter: 230mm (9 inches)
Shaft Diameter: 31.7mm (1-1/4 inches)
Applications: Flooded Suction, Irrigation, Fire, Marine
Dimension (length x width x height) :595mm * 495mm * 48mm
Net Weight/Gross Weight: 19kg/33kg

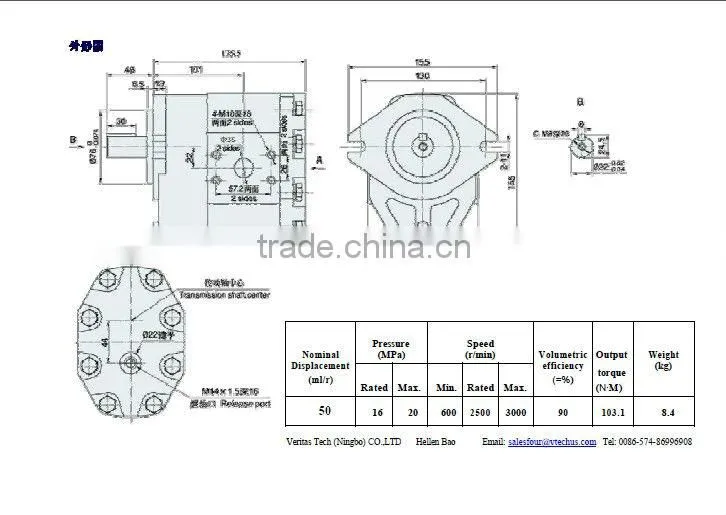

hydraulic motor parameter:
1. Nominal Displacement (ml/r) : 50
2. Pressure(MPa): rated-16; Max-20
3.Speed: Min-600; Rated-2500; Max-3000
4.Volumetric efficiency: at least 90%
5. Output torque (nm): 103.1
6.Weight (KG):8.4
