Flooded Suction water pump WP1126 for water truck
- 5000 Set / Sets per Month
- Ningbo/Shanghai
- Credit Card
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Veritas Tech | Model Number: | WP1126 of water pump |
Theory: | Centrifugal Pump | Structure: | Gear Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | Low Pressure | Application: | Other, water trucks water pump |
Product Description
Company Profiles:
Veritas Tech, registered in Texas, USA, set up its operational center in Ningbo Free Trade Zone (in Beilun Seaport, the second largest seaport in China) in year 2002.
Veritas Tech is the largest manufacturer for water truck parts in China, it designs and manufactures a full range of water truck parts, such as water pump water pump, valves, spray heads, hose reel, control systems, water cannons, water tank and other fittings.Veritas Tech is ISO9001:2008 certificated.
Prodcut Descripition:
water pump
Part# | WP-CW (Clockwise Direction) |
Part# | WP-CCW (Counter-Clockwise Direction) |
Rotate Speed | 1450rpm-3000rpm |
Flow Rate | <3000l/min-800gl/min |
Head | <50m/175feet |
Pressure | <0.5Mpa/75psi |
Inlet/Outlet Connection Type | Victaulic Type Grooved Suction and Discharge (clamping system) |
Inlet | 4.00 inches |
Outlet | 3.00 inches |
Outlet Angle | Adjustable |
Max. Operating Temp | 60"C |
Impeller Diameter | 230mm (9 inches) |
Shaft Diameter | 31.7mm (1-1/4 inches) |
Applications | Flooded Suction, Irrigation, Fire, Marine |
Dimension(Length*Width*Height) | 493mm*450mm*360mm |
Net Weight/Gross Weight | 19kg/33kg |

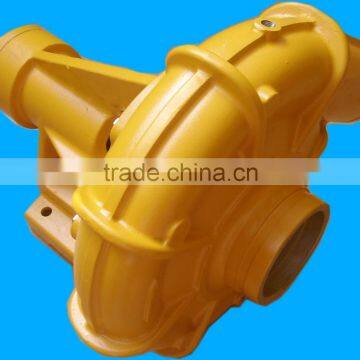

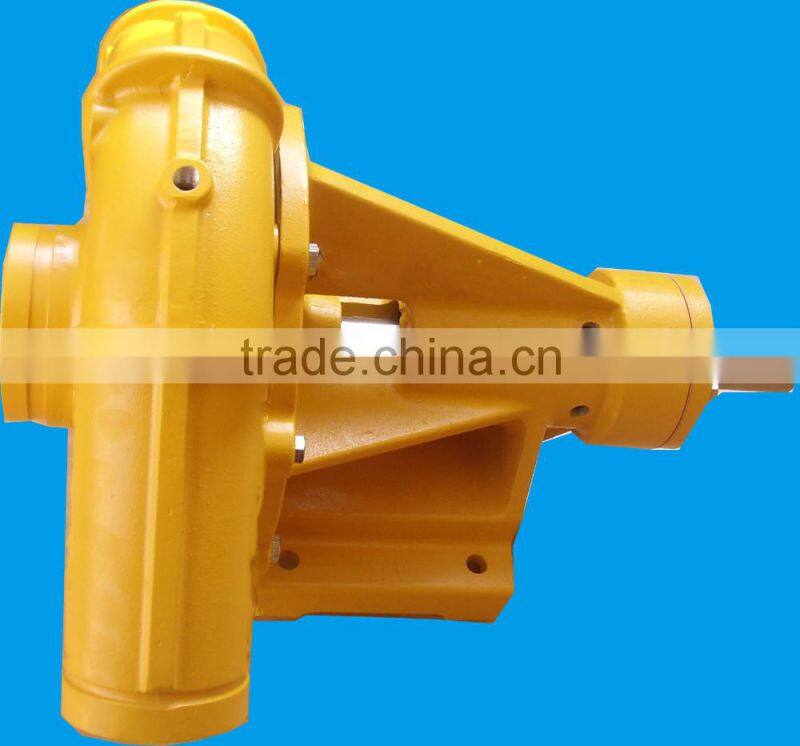

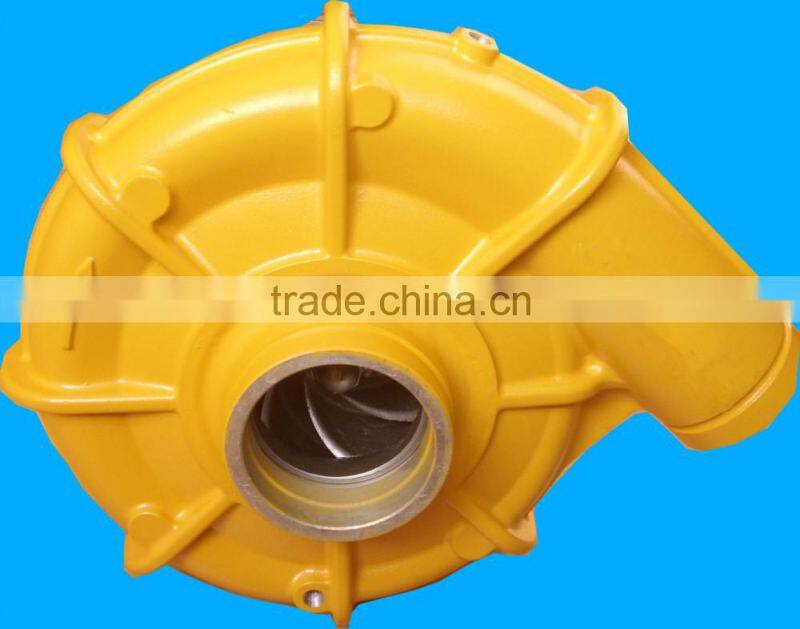

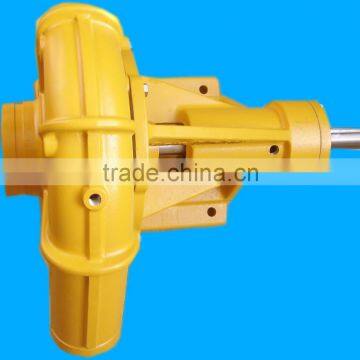

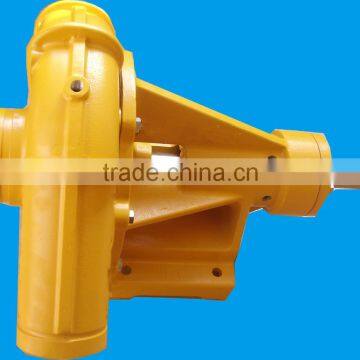

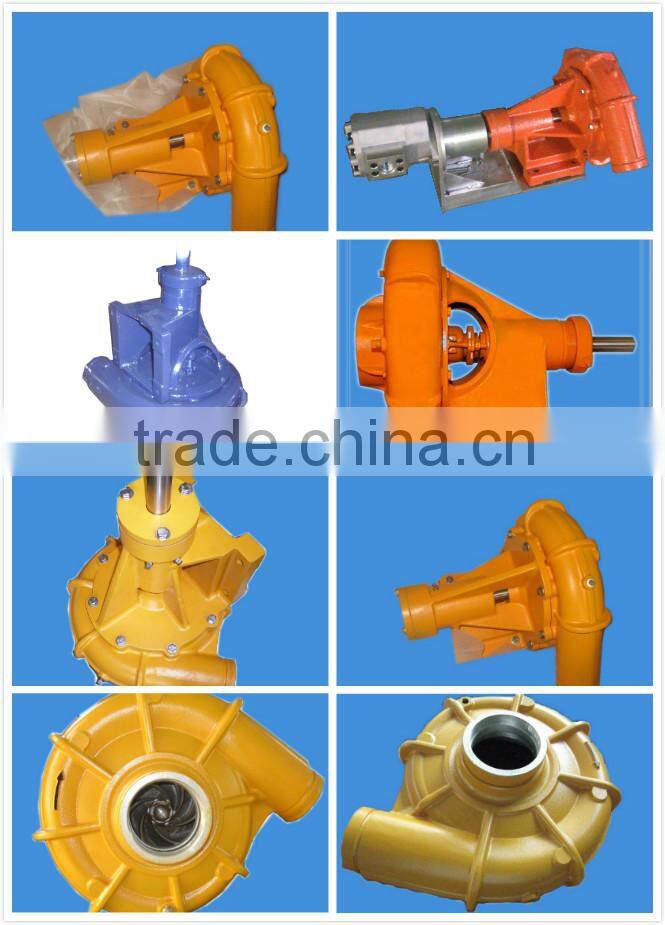

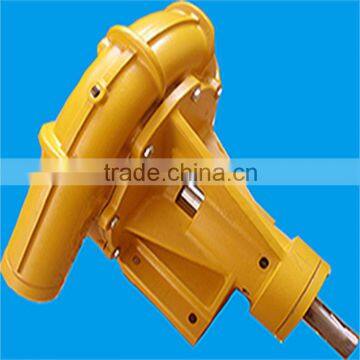

Images :
Shipping Terms &Conditions
FAST SHIPPING from our Ningbo Factory!
Items shipped in 25-45 working days after payment is received depends on the quantity of the order.
Items(samples) shipped by UPS,FedEX,DHL,TNT and others, depending on size and weight of total order.
Items shipped by SEA most of time.
Items only shipped to address listed on the invoice; Not responsible for shipping to wrong address.
Tracking number will be sent to you as soon as we ship the goods.
