Home > Lights & Lighting > Lighting Fixtures > Dimmer > Factory Direct Sales IR44 Keys LED Controller, Superior Quality Guarantee!

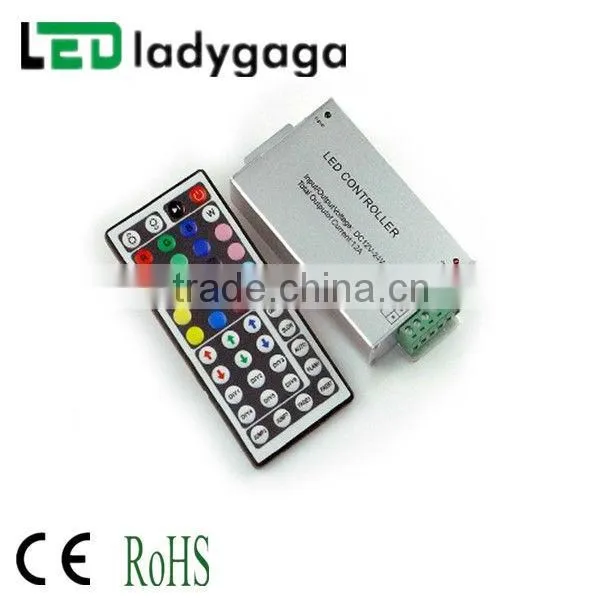

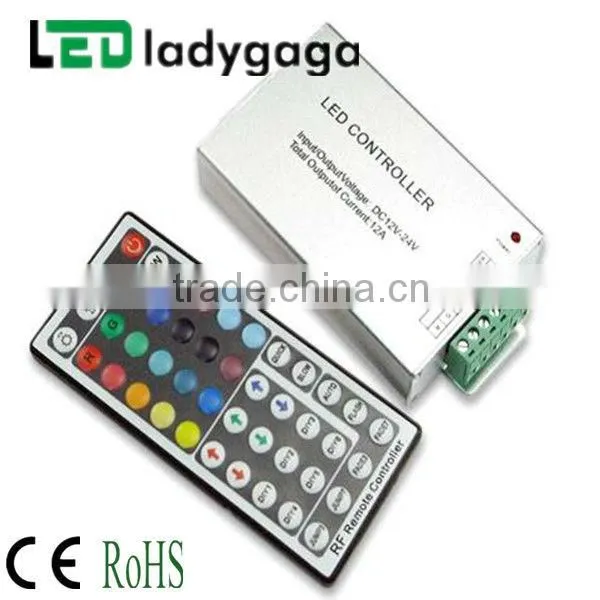

Factory Direct Sales IR44 Keys LED Controller, Superior Quality Guarantee!

Name: Factory Direct Sales IR44 Keys LED Controller, Superior Quality Guarantee!
Brand: Ledladygaga
SKU: 103412513

Factory Direct Sales IR44 Keys LED Controller, Superior Quality Guarantee! thumbnail-1

Factory Direct Sales IR44 Keys LED Controller, Superior Quality Guarantee! photo-1

US$ 7 - 8 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Ledladygaga

Model Number:

LG20-IRL44

Contact Supplier Request Quote Chat Now

Shenzhen Ledladygaga Lighting Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Ledladygaga

Model Number LG20-IRL44

Type Other, Remote Control, Remote controller

Max. Load Power 288W

Voltage Other, 12V

Specifications

led rgb light controller
1. IR wireless;
2. Working voltage:DC12V
3. Power: 12V*12A=144W
4.CE&ROHS

led rgb light controller

Description:

44keys aluminum infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control. In addition, customers can adjust their light color as they like.

Technical Dscription:

Working temperature	-20-60°C
Supply voltage	DC5V, 12V-24V optional
0utput	three CMOS drain-open
Connecting mode	common anode/cathode optional
Certificates	CE&RoHS
Number of programs	44
Remote control type	IR
Type	Remote controller
Static power consumption	<1W
Output current	<4A(each channel)
Output power	5V:<60W, 12V:<144W, 24V:<288W

More items information:

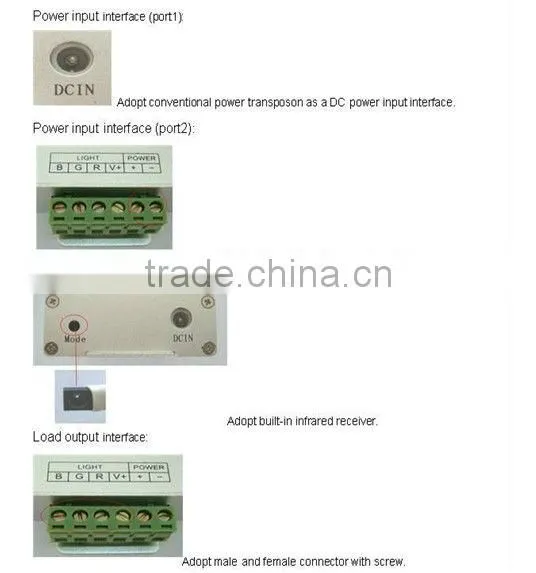

Interface Specification:

Direction for use:

1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power.

2.Operation: you will receive infrared remote control in front of infrared receiver to ensure that there is no barrier between the remote controller and receiver.

Adopt IR remoter to control the led controller, which has 44 buttons, the function of each button as the table below

Brightness +(8 in all)	Brightness –(8 in all)	Pause/Run	On/Off
Static red	Static green	Static blue	Static white
Static orange	Static pea green	Static dark blue	Static milk white
Static dark yellow	Static cyan	Static lyons blue	Static white pink
Static yellow	Static light blue	Static pink	Static green-white
Static light yellow	Static sky blue	Static brown	Static blue white
Increase red	Increase green	Increase blue	Speed up
Decrease red	Decrease green	Decrease blue	Speed-down
DIY Key1	DIY Key2	DIY Key 3	Automatic change
DIY key4	DIY Key5	DIY Key 6	Flash on and off
3 color jumpy change	7 color jumpy change	3 color fade change	7 color fade change

Application Circuit:

Notes:

1. Supply voltage of this product is DC12V~24V, never connect to others or AC220V.

2. Before using the infrared remote, the insulating film should removed.

3. Lead wire should be connected correctly according to grade that connecting diagram offers.

4. This product is not to overload;

5. Warranty of this product is two year, but exclude the artificial situation of damaged or overload working
