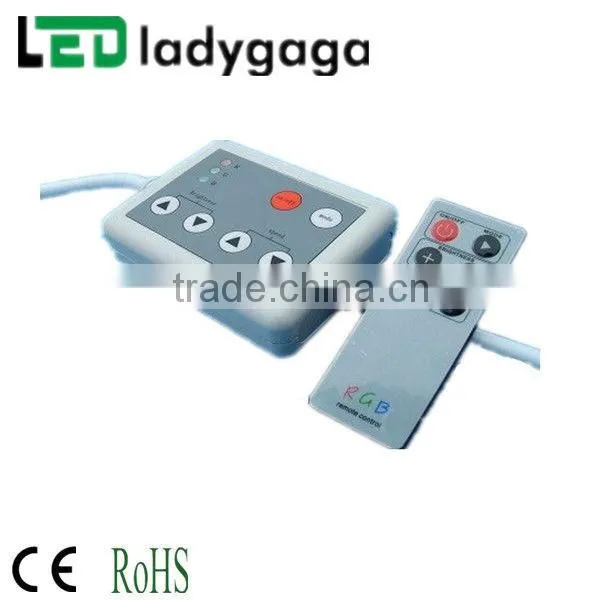

Cheap price DC5V/12V24V 6 keys led remote IR RGB Controller

Specifications

led strip rgb remote controler
1. IR wireless;
2. Working voltage:DC12V
3. Power: 12V*12A=144W
4.CE&RoHS

led strip rgb remote controler



Description:

6key LED infrared controller adopts the advanced micro control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance,point source of light, flexible light strip,wall washer lamp,glass curtain wall light and so on;it has many advantages such as low price,easy connection and simplicity to use.Meanwhile,you could adjust brightness and various dynamic changes in lighting effects through infrared remote control.





Technical Dscription:

Working temperature	-20-60°C
Supply voltage	DC5V, 12V-24V optional
0utput	three CMOS drain-open
Connecting mode	common anode/cathode optional
Certificates	CE&RoHS
Number of programs	6
Remote control type	IR
Voltage Voltage	DC5V/12V/24V
Static power consumption	<1W
Output current	<4A(each channel)
Output power	5V:<30W,  12V:<72W,  24V:<144W



More items information:

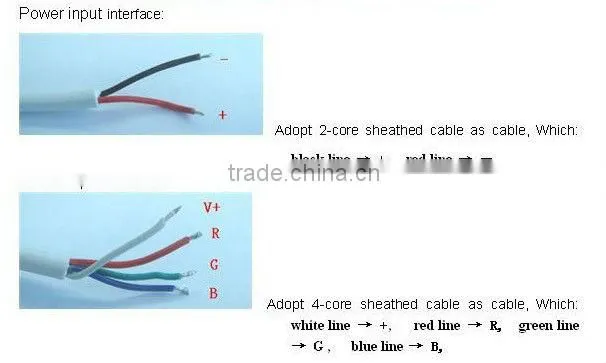

Interface Specification:



Direction for use:

1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power.

2.Operation: you will receive infrared remote control in front of infrared receiver to ensure that there is no barrier between the remote controller and receiver.

Adopt infrared remote control method,function of each button as below:

Button Name	Instruction
On/Off	The output switch,turn on or off the controller output at any state
Mode	The style/color function key.You can choose different color changes,each press one time,change a light style
Brightness up	Controls the brightness of output signal,each press brightness level+1,256 levels in total
Brightness down	Controls the brightness of output signal,each press brightness level-1
Speed up	Each press changing speed+1,100 levels in total
Speed down	Each press changing speed -1

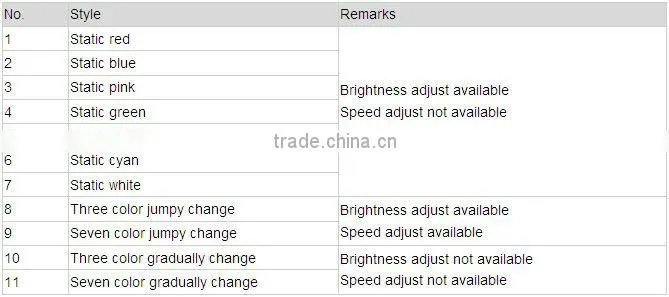

Style changing table as below:

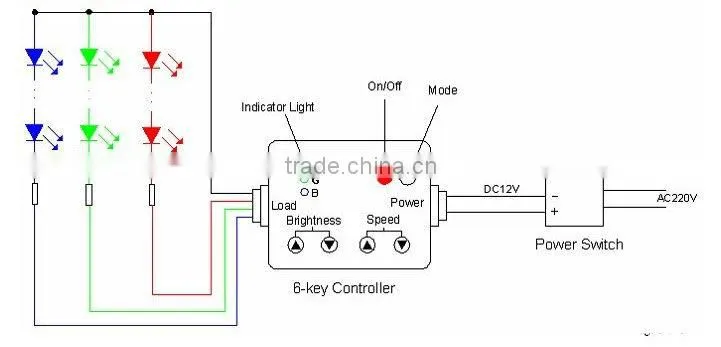

Application Circuit:



Notes:

1. Supply voltage of this product is DC12V~24V, never connect to others or AC220V.

2. Before using the infrared remote, the insulating film should removed.

3. Lead wire should be connected correctly according to grade that connecting diagram offers.

4. This product is not to overload;

5. Warranty of this product is two year, but exclude the artificial situation of damaged or overload working
