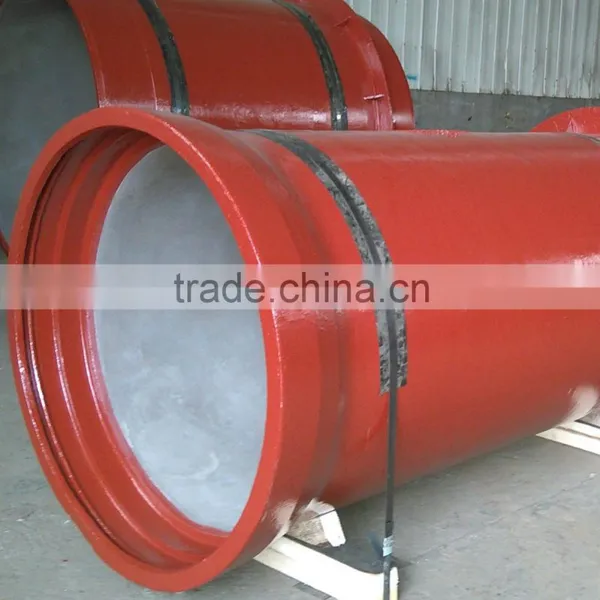

BS EN598 EN545 ISO2531 ductile iron pipes fittings
Ductile cast iron flange pipe not only retains all of cast iron pipes attractive qualities, such as machinability and corrosion resistance, but also provides additional strength, toughness, and ductility. It is lighter, stronger, more durable and more cost effective than cast iron pipes. It is reliable for transporting raw and potable water, sewage, slurries, and process chemicals.
| Material | Ductile Cast Iron GGG50, QT500-7/450-10 |
| Standard | ISO2531 BS EN545 EN598 BS4772 DIN2501,GBT13295 |
| Flange drilled | ISO7005-2,BS4504, EN1092-2, DIN2501 |
| Pressure | PN10, PN16/class125, PN25 |
| Specification | DN50 to DN2000(2"-80") |
| Joints type | Flange, Typon joint(push on joint); Bolted Gland K type Joint |
| Application | water supply project, drainage, sewerage, Irrigation |
| Certificates | ISO2531:2009, BS EN545:2010, ISO9001, ISO14001,ISO18001,WRAS |
| Surfce Inside | Portland Cement mortar lining, bitumen painting, epoxy liquid or epoxy powder |
| Surface Outside | bitumen painting(70um), epoxy liquid(100-150um) or powder (250um) |
Welcome to your interests!
Zhu Cheng Three-dimensional Pipeline Co. ,Ltd is the professional manufacture of ductile iron pipe fittings including flanged fittings ,tee,cross,socket fittings , joint , bend ,elbow, reducer, bellmouth and so on over 1000 serize.
It has strict quality inspection and threr are complete set of testing means from physical and chemical analysis to performance testing to water pressure experiment.
Our products are exported to many areas every year and enjoyed good reputation. such as Asia( South Korea, Vietnam, Malaysia, Singapore, Philippines, Brunei, Nepal, India and Bangladesh Sri Lanka ) , Europe(UK, Ireland,Demark, Spain), Africa and Mid-East( Ethiopia, Kenya, Tanzania, Nigeria and Zambia, mozambique, Mauritius and Saudi Arabia, Iran, Kuwait, Iraq, United Arab Emirates, Oman, Qatar, Syria, Jordan, Libya, Tunisia, Algeria,)
and other countries and regions ...
all package material are fumigation, strong and suitable for long transportation and shipping.
normally, fumigation wooden case or pallet / plywood package.
case or pallet depends on the diameter of DCI Fittings, cases for smaller, pallets for bigger.
of course, finally package condition in accordance with client's requirements and LCL, all products are boxes or cases,no pallets , or less pallets except no other choice.( about its L, H ,W, we will have a negotiation with our forwarder in advance)
additionaly, package size, standard case packaged(1.1*1.1*1.1), or specialized design for specific DCI fittings list, ordered items.
Last , For long pipe, welded pipe, pallets, no exceeding 6meter per piece, 5.8m for container, 6m for bulk.
Price: We are factory, factory price to our client, no matter you are trade, end-user, or bidder.
Delivery: nearest Qingdao Port,China. only need 1.5 hour to Seaport, no more than 2hours to Qingdao Airport,
lead time 25-30days for normal qty/tons. third party and ship will be booked, in advance, when production finishment is near.
Sample is free & 7-10 days delivery, but for freight is charge of you, but in the latter order, it will cut off from Contract amount.
Quality & After-sales series:
Our production are strictly in accordance with ISO2531,EN545,corresponding standard, and approved ISO9001 management system certificate and material conform WRAS(Water Research Advisory Scheme)
They are the exact products, same to the requirements in quality, specification, capability. and supply Warranty, mill test certificate.
products supplied by us, has no defects design, material or casting, also no defects caused by our action or omit.
If any questions appear in quality, of course, it's chance is small, our company will mend it or exchange new one, and responsible for its charge.
If any questions appear in installation in end-user, we can dispatch technical personnel to site to solve the problem.
we assure that " three-dimensional" brand products will satisfy your needs.
