Help CenterAll Flanged Tees With Angle Branch
Negotiable
MOQ: 1 Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Iron
Technics:
Casting
Type:
Tee
Payment & Shipping
Payment Methods:
Port of Shipment:
Qing dao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Material
Iron
Technics
Casting
Type
Tee
Place of Origin
Shandong, China
Model Number
DN80-DN2000
Brand Name
three-dimensional
Connection
Flange
Shape
Equal
Head Code
Other, round
Specifications

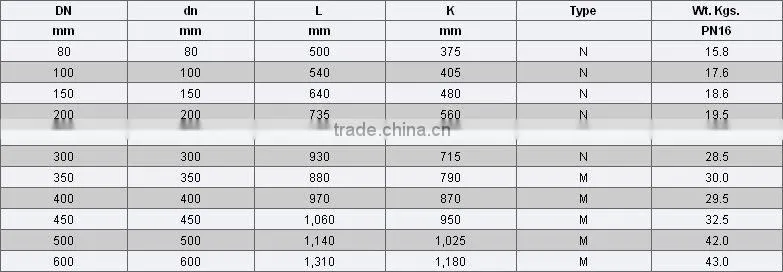

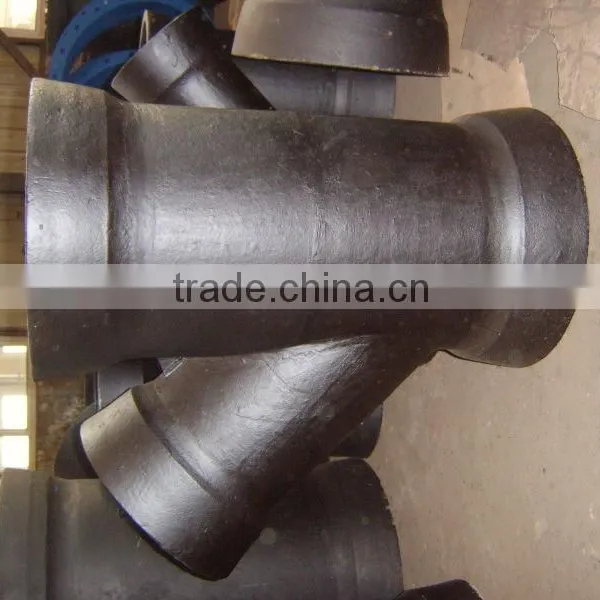

All flanged tees with angle branchMaterial:ductile iron
Specfication:DN80-DN2000
Pressure:PN10/16/25
All Flanged 45° Angle Branch
according to EN545 or ISO2531 series A
Standard flange drilling to ISO7005-2,EN1092-2:1997 Fittings coating:Fusion bonded epoxy coating ,the thickness not less than 150 micron according to ISO2531-1998, EN 545:2002 or internally cement mortar lining acc. to ISO 4179 and zinc rich painting(130g/m2) plus bituminous painting(thickness 70mic.) externally acc. to ISO8179
Size:DN 80-600
Nominal Pressure: PN16
Our company has a strict and complete management as well as the best serivices.
With a team of ambitions and honest and expericences.
So trust and cooperate with my company, you will have the future
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
1993
Factory Size
30,000-50,000 square meters
Total Employees
301 - 500 People
