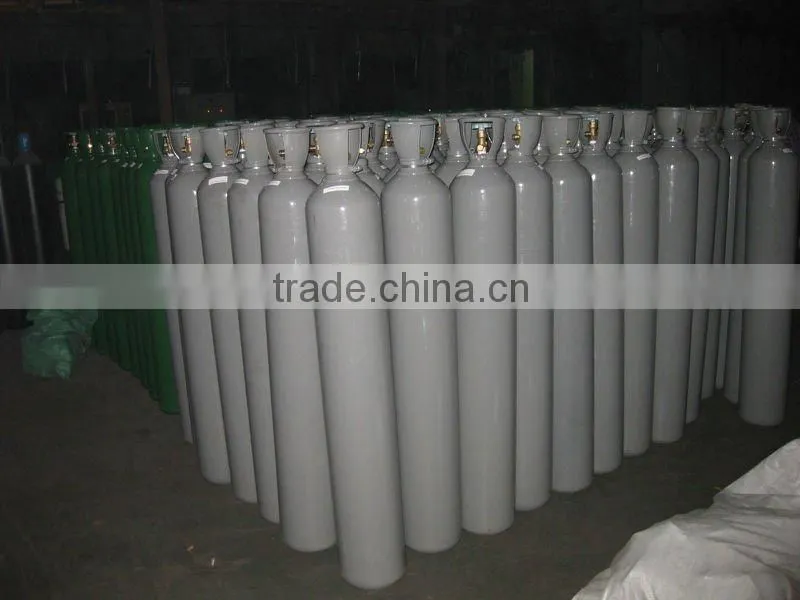

Help CenterSeamless Steel Gas Cylinder, Oxygen Cylinder
Related Products
gas cylinder
Zhejiang TianEn Pressure Vessel Co., Ltd. is a professional manufacturer of High pressure seamless steel cylinders, CNG cylinders, Fire-fighting cylinders,and other cylinders series.
We have B1, B3 level qualifications of pressure vessel and passed ISO:9001:2000. Own the experienced in and qualified for designing and manufacturing various kinds of high pressure gas cylinders, which including CNG cylinder for vehicle, seamless steel cylinders, Fire-fighting cylinders, Fully wrapped composite cylinders and other series. widely used for transportion , fire-fighting, medical treatment, industry and so on.
The specification of our Seamless Steel gas cylinder as following :
Production standard : GB5099 ,ISO9809
Working Pressure :15Mpa ,20Mpa
Testing Pressure :22.5MPa ,25Mpa ,30Mpa
Water Capacity :10L ,15L ,20L, 32L ,36L,38L ,40L, 45L,47L,50L ,68L,70L,80L,82L.
Out Diameter :140mm, 159mm ,219mm ,267mm,279mm, 232mm.
Wall thickness :3.6mm, 4.5mm, 5.7mm ,6.0mm,5.5mm.
Material :37Mn ,34CrMo4.
|
Serial No. |
Type |
Nominal working Pressure (MPa) |
Water test pressure (MPa) |
Volume (L) |
Nominal Outer Dia (mm) |
Design Wall Thickness (mm) |
Length (mm) |
Weight (kg) |
Material for cylinder |
Carry out standard |
1 |
WMA219-20-15 |
15 |
25 |
20 |
219 |
5.7 |
715 |
28 |
37Mn |
ISO9809 |
2 |
WMA219-32-15 |
32 |
1075 |
39 |
||||||
3 |
WMA219-36-15 |
36 |
1195 |
42.5 |
||||||
4 |
WMA219-38-15 |
38 |
1245 |
45 |
||||||
5 |
WMA219-40-15 |
40 |
1305 |
46.5 |
||||||
6 |
WZA267-68-15 |
15 |
25 |
68 |
267 |
6.1 |
1500 |
74 |
37Mn |
ISO9809 |
7 |
WZA267-70-15 |
70 |
1540 |
76 |
||||||
8 |
WZA267-80-15 |
80 |
1740 |
84 |
||||||
9 |
WZA267-82-15 |
82 |
1780 |
86 |
||||||
10 |
WZA232-40-15 |
15 |
25 |
40 |
232 |
5.5 |
1185 |
47 |
37Mn |
ISO9809 |
11 |
WZA232-47-15 |
47 |
1365 |
50 |
||||||
12 |
WZA232-50-15 |
50 |
1445 |
53 |
||||||
13 |
WGA232-40-20 |
20 |
30 |
40 |
232 |
5.5 |
1185 |
47 |
34CrMo4 |
ISO9809 |
14 |
WGA232-47-20 |
47 |
1365 |
50 |
||||||
15 |
WGA232-50-20 |
50 |
1445 |
53 |
Welcome to contact us !
Zhejiang Tianen pressure vessel Co.,Ltd
Manufacturer of Gas Cylinders , CNG Cylinders
