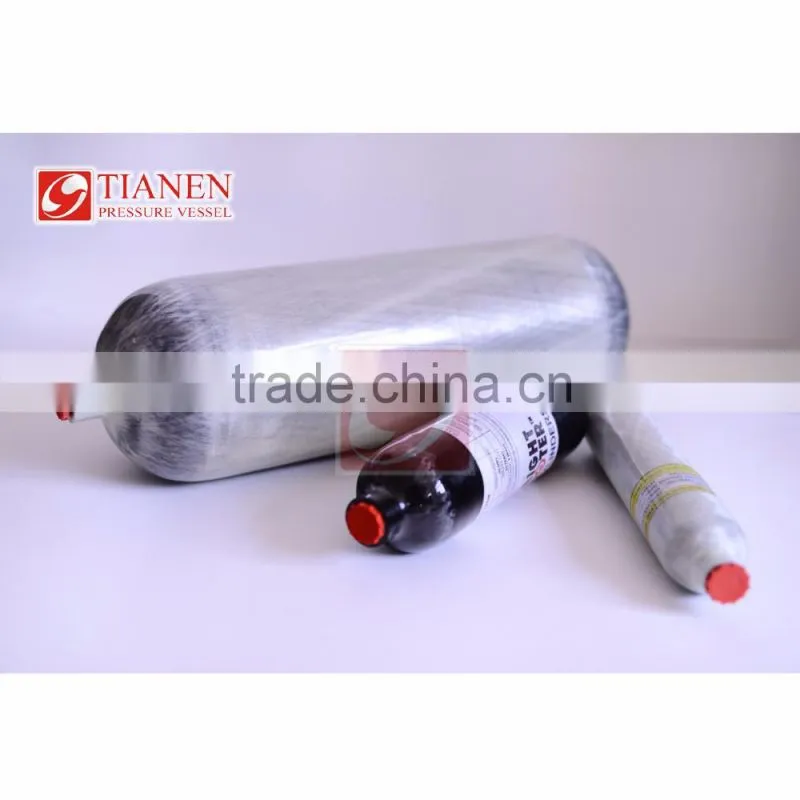

SCBA gas cylinder
6.8L carbon fiber cylinder
Specification: CRP III -145-6.8-30-T
Outside Diameter: 157mm
Water Volume: 6.8L
Length: 528mm
Weight: 4.1kg
Working Pressure: 300bar
Certificate: CE, TS
Third party Inspectors: TUV, CSEI, SGS
Filling content: Air, O2
Color: As shown in the picture or custom.
Thread: M18×1.5 or custom.
Form A, Form E available.
No. |
Specification |
Outside Diameter |
Water Volume |
Length |
Weight |
Working Pressure |
MOQ |
1 |
CRPIII-114-2.0-30-T |
114mm |
2.0L |
321mm |
1.6kg |
300bar |
50 |
2 |
CRP III-120-2.4-20-T |
128mm |
2.4L |
302mm |
1.8kg |
200bar |
5 |
3 |
CRP III-120-2.5-20-T |
128mm |
2.5L |
312mm |
1.9kg |
200bar |
5 |
4 |
CRP III-124-2.7-20-T |
132mm |
2.7L |
310mm |
1.9kg |
200bar |
50 |
5 |
CRP III-114-3.0-30-T |
114mm |
3.0L |
446mm |
2.1kg |
300bar |
50 |
6 |
CRP III-145-6.8-30-T |
157mm |
6.8L |
528mm |
4.1kg |
300bar |
5 |
7 |
CRP III-161-9.0-30-T |
174mm |
9.0L |
560mm |
5.2kg |
300bar |
5 |
8 |
CRP III-180-12.0-30-T |
196mm |
12.0L |
605mm |
6.5kg |
300bar |
5 |
9 |
CRP III-200-20.0-30-T |
222mm |
20.0L |
770mm |
12kg |
300bar |
50 |
Seamless aluminum ally 6061 liner wound with high strength Japan-imported carbon fiber and glass fiber reinforced plastic full composite layers and subjected to an autofrettage pressure. The high strength and safety-assured construction provides up to 300bar service pressure, which enlarges gas storage capacity to 1.5-2 times than that of aluminum or steel cylinders;
Extremely Light weight, up to 60%-70% lighter than steel cylinders and 30-40% lighter than aluminum cylinders;
No magnetism;
High corrosion resist and special inner surface treatment, ensure storage gas clean and smelless;
Stable performance;
The specifications of carbon fiber composite cylinders behind covers a wide range of applications such as Self-contained breathing apparatus (SCBA), paintball gun, home oxygen therapy, aircraft oxygen, ELSA escape sets, and other applications that require lighter weight, stronger corrosion-resistance inner surface, and higher gas storage capacity.;
Choice of worldwide top brands and enterprises.
