ODM OEM Gps Tracker Project Research and Development

ODM OEM Gps Tracker Project Research and Development thumbnail-1
ODM OEM Gps Tracker Project Research and Development photo-1
US$ 30 - 40 MOQ: 10 Sets
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Hand Held
Screen Size:
Other, 0.88mm OLED
Contact Supplier Request Quote Chat Now
Shenzhen Ptah Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Hand Held
Screen Size Other, 0.88mm OLED
Function Other, GPS Tracker
Place of Origin Guangdong, China
Brand Name OEM
Model Number A9
Warranty 1 Years
1. Structure
Structure Type Specifications
Style Stylish and elegant
Size 38(W)X38 (L)X12(T) mm
Button One button (power button and SOS button)
Dsiplay 0.88mm OLED
GPS antenna Built-in high sensitivity ceramic antenna
GSM antenna FPC
Battery 450mAh
SIM card slot One slot
G-sensor Supported
I/O port USB port
Waterproof level IP54
2. Hardware
Hardware Chipset MTK MT6260
GPS chip MTK3326
GPRS Class12
GPS singals L1,1575.42MHz C/A code
GPS channels 20 channels
GPS chip receiving sensitivity Tracking sensitivity: -159dBm, acquisition sensitivity: -143dBm
GPS Positioning accuracy 5~15m
Accuracy base station location 100-1000M
Minimum standby current <0.5 mA
average standby current <2.5 mA
average working current <55mA
Temperature -20~70℃
Humidity 5% to 95% no condensation
Certification Can pass national CTA, 3C and CE cetificate
GPS antenna Built-in high sensitivity ceramic antenna
GSM antenna Built-in four frequency PIFA antenna
Speaker 1208
MIC Supported
3. Software
Software Supported OS Android 2.3 and above, iOS 4.0 and above
  Support Familiarity Number automatic answering, one-way conversation can also be setup
Language Support 13 different languages
GSM+GPRS+GPS GPS+LBS dual mode
AGPS Supported, positioning after 26 seconds' cool start
Call function Interference-free mode, Familiarity Number force feed, monitoring ambient enviroment
Battery management Ultra-low power consumption of power management,smart stay
SOS emergency call SOS call, automatic dialing
Intelligent fence automatic alarm
Historical route Three monthes' historical route can be checked
Step counter Compatible
Calorie Counter Compatible
Remote update Remote update, remote maintenance

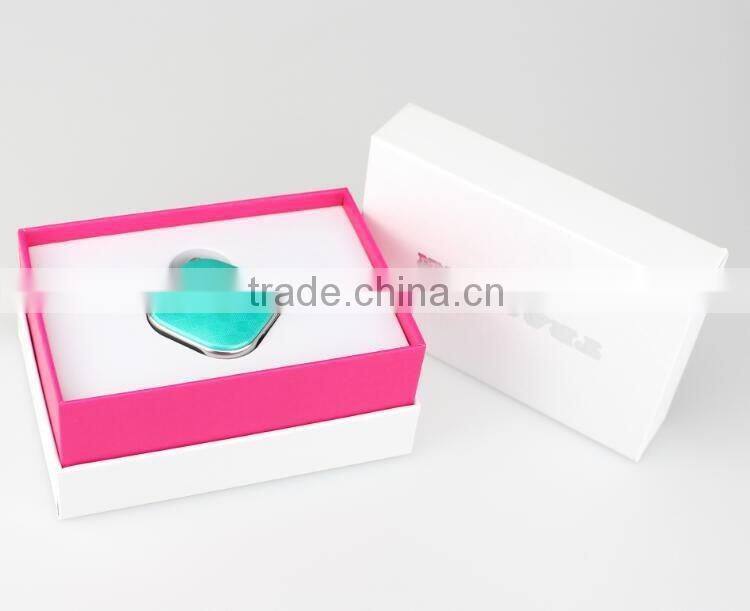

4. Package
Package Net weight 50g/pc
Gross weight (Paper box) 0.14kg/box
Package size( Paper box) 12*8.5*5.5cm
Carton size (60 pcs) 38*34*30cm
Gross weight( 60 pcs) 9.5kg/carton





ODM OEM gps tracker project research and developmentODM OEM gps tracker project research and developmentODM OEM gps tracker project research and development



ODM OEM gps tracker project research and development



ODM OEM gps tracker project research and developmentODM OEM gps tracker project research and development

ODM OEM gps tracker project research and development

ODM OEM gps tracker project research and developmentODM OEM gps tracker project research and development

ODM OEM gps tracker project research and developmentODM OEM gps tracker project research and developmentODM OEM gps tracker project research and developmentODM OEM gps tracker project research and development



Any inquiry please contact Anna sales (at)

Skype: anna.kedwin

What'sapp: 0086  139  2387  0899

MINI GPS TRACKER  vehicle gps tracker micro gps transmitter tracker
micro gps transmitter tracker micro gps transmitter tracker   pet gps tracker   gps tracker gps tracker gps tracker
