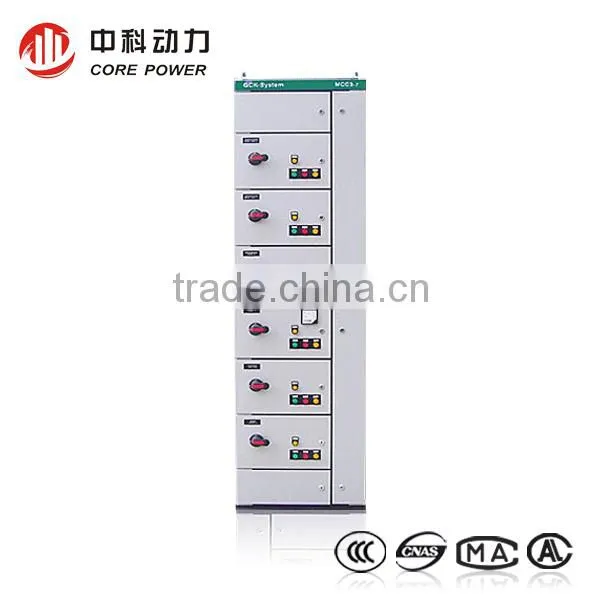

GCK Indoor Type Low-voltage Withdrawable Switchgear Cabinets
General Description:
GCK(L) type LV withdrawable switchgear cabinet can meet different need for power supply and distribution,according to the needs of system, it has functions of protection and control circuit.
The product is suitable for LV distribution system of AC 50HZ, rated voltage 380V, rated current up to 3150A,as incoming, feeding, lighting , control of motors.It includes functions between power center (PC) and motor control center(MCC),designed to fixed cabinet and mixed type drawer system, to meet different needs of power supply and distribution.
In the PC program, has functions such as power reception, bus coupler circuits, power feeding while the electric current is under 3150A . Main switches are from domestic SEW1/AH/ME, F/E series of imported ABB switches, MT series of MEG switches. Easily operated and safety.
In the MCC program, has functions such as power feeding, lighting, motor controlling and reactive compensation while the electric current is under 630A . Select domestic SEM1, DZ20, Q series and imported ABB and MEG switches to be main switches.
Main Characteristics:
1,Easy installation,beautiful appearance,various structure,easy maintenance.
2,Application range: power plants, oil, chemical,high rise building and textile industry etc.
3,Structure:Fixed board.
4,Operation voltage: Low voltage.
5,Shell material: Steel plate
6,Shell protection grade:IP30-40 or according to request
7,Form:All-packaged type
Description |
Specifciations |
Main Circuit Nominal Insulation Voltage |
660V |
Main Circuit Nominal Voltage |
AC 380V |
Auxillary Circuit Nominal Voltage |
AC 220V, 380V, 110V; DC110V, 220V |
Rated Frequency |
50(60)Hz |
Rated Current-Main Busbars |
Horizontal Busbar≤3200V; Vertical Busbar:1600A |
Nominal Short time withstand Current (0.1S) |
50Ka; 80kA |
Nominal Peak Withstand Current (0.1S) |
105kA, 176kA |
Power Frequency Test Voltage |
Main Circuit: 2500V/Min; Auxillary Circuit:1760V/Min |
Protection Category |
IP30, IP40
|
1: What certifications do you get?
A: We have ISO, CE,CCC,etc.
.
2: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.
3: When to get the price?
A: We usually quote within 24 hours after getting your inquiry.
if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.
4: Is sample available and free?
A: Sample is available, but sample should be paid in advance. The cost of sample will be refund after further order.
5. How to pay?
A: T/T and L/C are acceptable, and T/T will be more appreciated.
30% deposit before producing, 70% balance before loading by T/T.
6. What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.
7. What about the Package?
A: Standard export package (Wooden carton with inner vacuum package) for long-distant ocean shipment and tough handling is provided. and we can make special designed for you if need.
8.How to contact?
A: Send your inquiry details in the below, Click “send” now!
