Specifications:
1. Top 3 suppliers in China.
2. CE and ISO approved.
3. Competitive price in global market.
4. Immediate delivery via DHL, FedEx OR airport-to-airport.

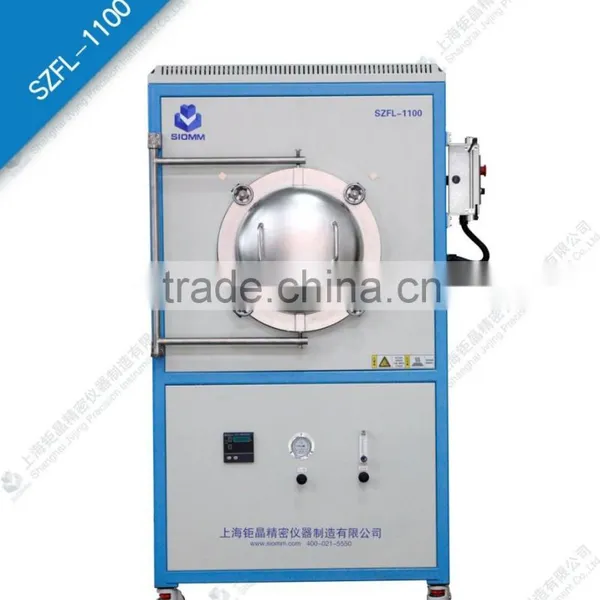

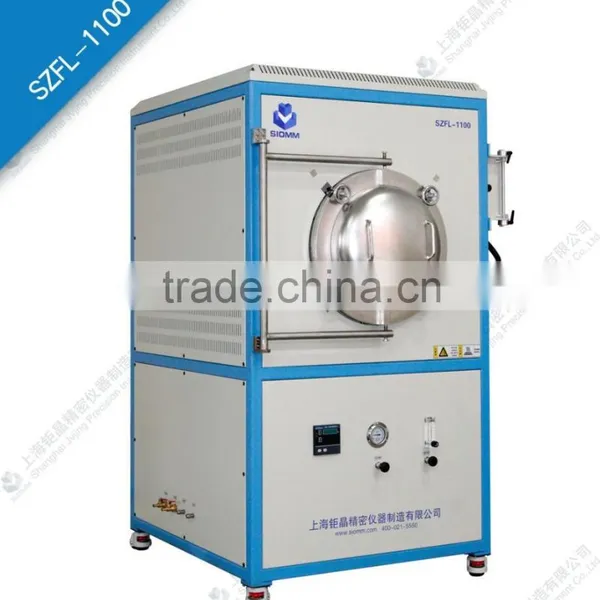

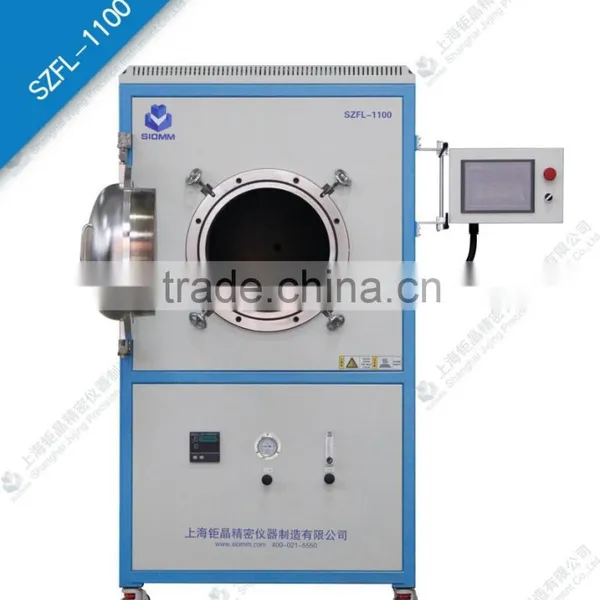

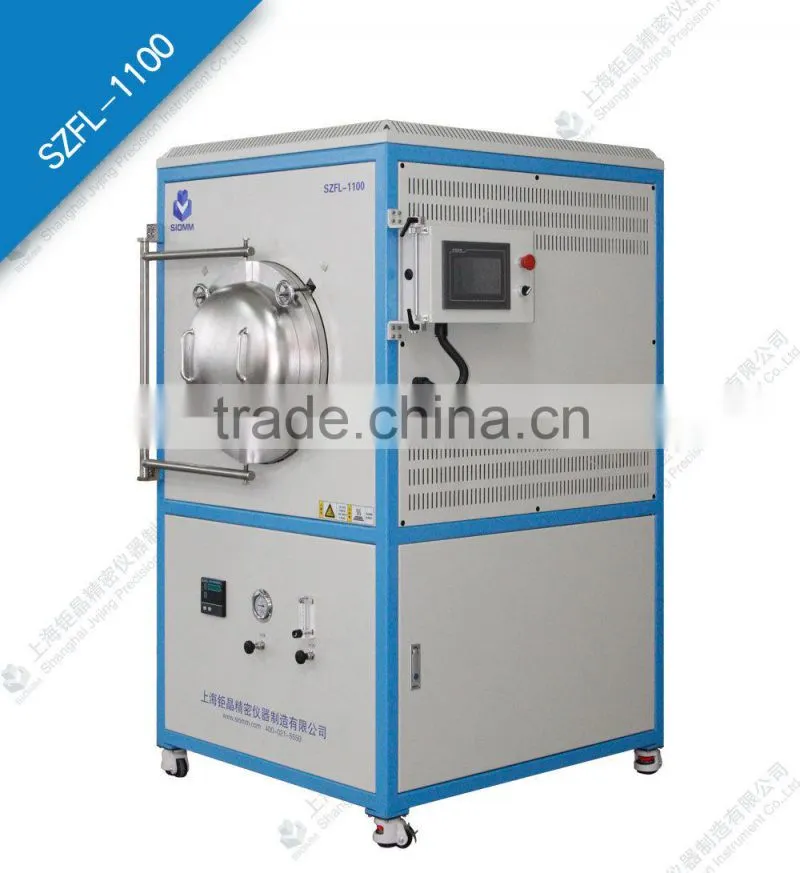

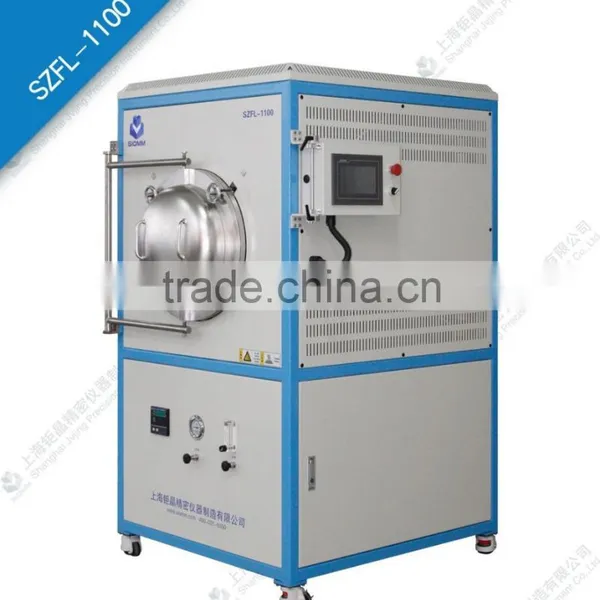

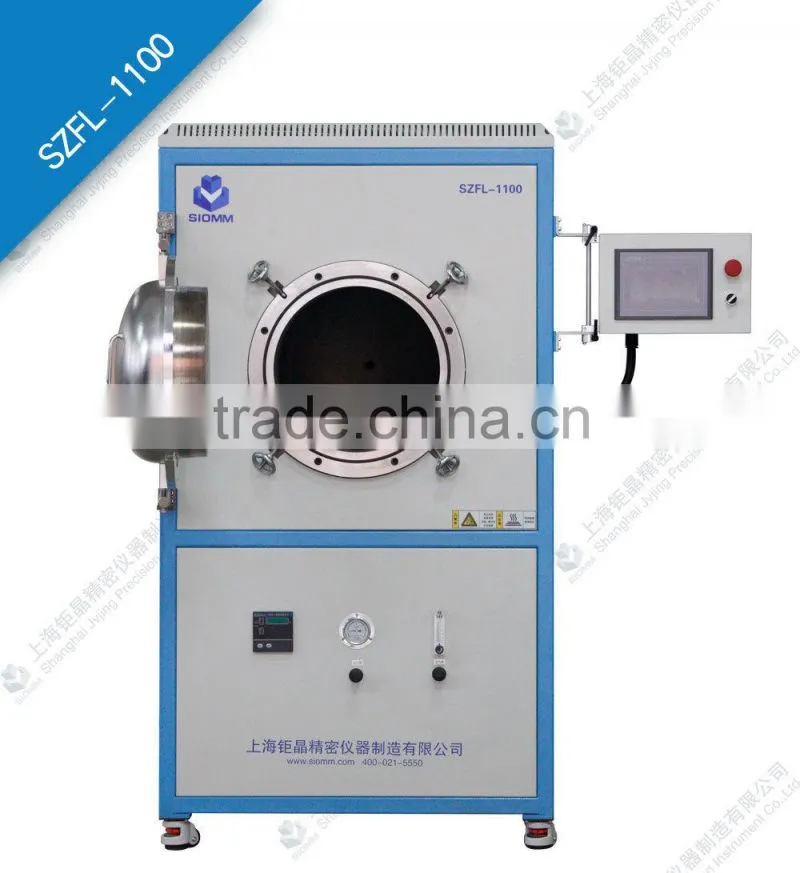

Lab Heating Furnace SZFL-1100
Model |
SZFL-1100 |
Furnace chamber |
Imported high purity polycrystalline alumina fiber from Japan |
Furnace tube |
High temperature SUS-310S stainless tube, Φ400×500mm |
Heating element |
0Cr27Al7Mo2 |
Temperature control |
30 segments temperature controlling program. Artificial intelligence technology, PID regulation, self-tuning. Temperature accuracy: ±1℃ |
Temperature measuring |
N-mode thermocouple |
Display mode |
LCD touch screen |
Power supply |
AC 380V, 50/60Hz, 18KW |
Working temperature |
≤1000℃ |
Max. temperature |
1050℃ |
Heating zone |
500mm |
Constant temperature zone |
200mm |
Recommended temp. heating rate |
10℃/min |
|
Optional Vacuum (when necessary!!) |
≤50Pa (Conventional pump + pointer pressure gauge) ≤10Pa (High configuration pump+ digital pressure gauge) ≤0.005Pa (Molecular pump system) |
|
Optional gas-mixing (when necessary!!) |
|
1. SZFL-1100 High Vacuum Tube Furnace using double-shell structure.
2. Furnace chamber using imported high purity polycrystalline alumina fiber from Japan,
good heat preservation and energy-saving.
3. 7 inch rotary LCD touch screen display/operation.
4. Equip with imported Pressure Sensor, overpressure protection, ensure safe operation.
5. Can equip with vacuum system, gas-mixing system (when necessary!!).
6. Reserved 485 convert port, can be connected with PC through our software,
bring you real time reading, recording, data output etc.
7. With over-temperature alarm system, will cut off power automatically, ensure safe operation.
8. We have independent Research and Development, Manufacturing and Processing ability.
9. Our technology is based on CAS (Chinese Academy of Sciences).
