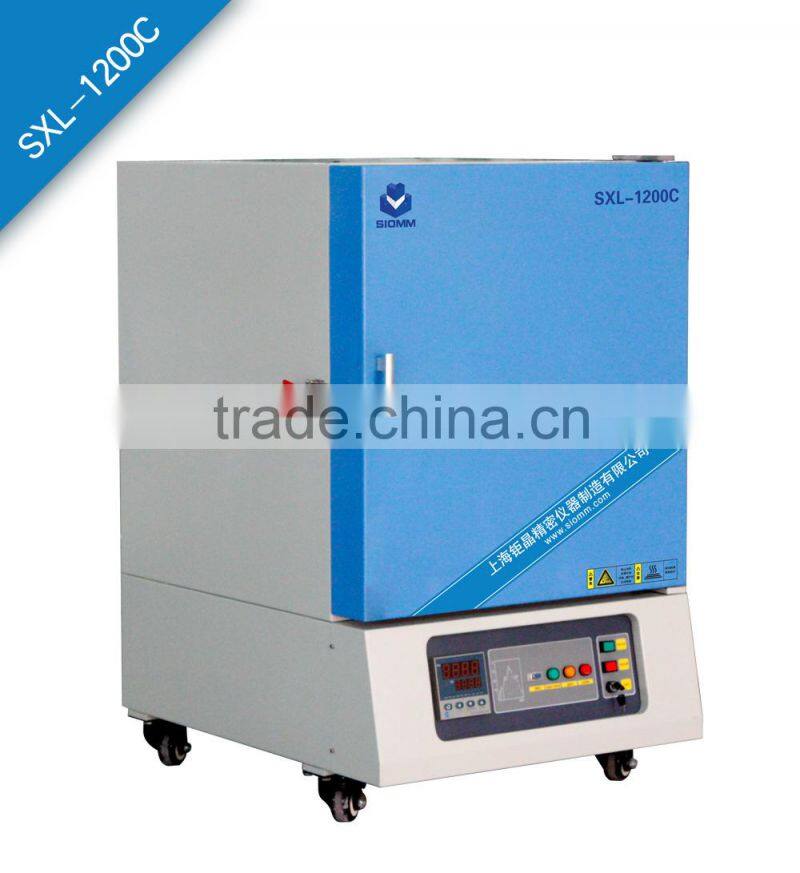

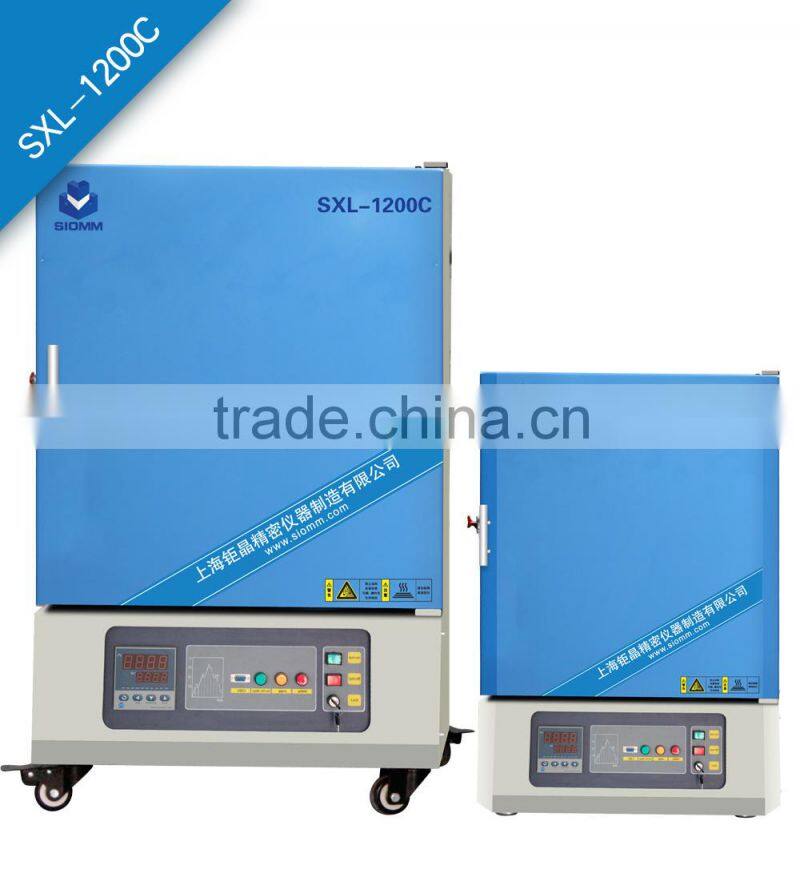

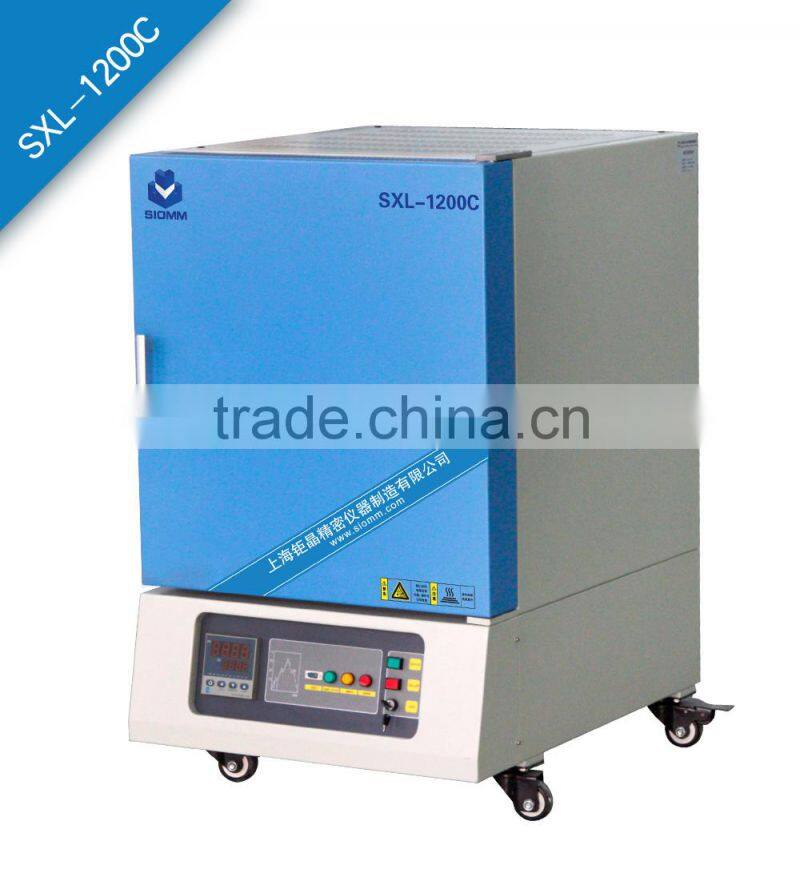

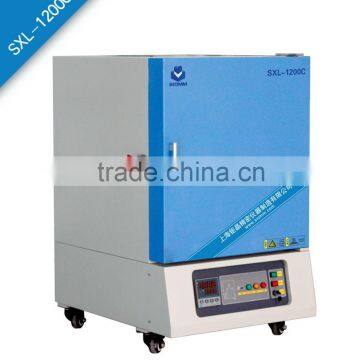

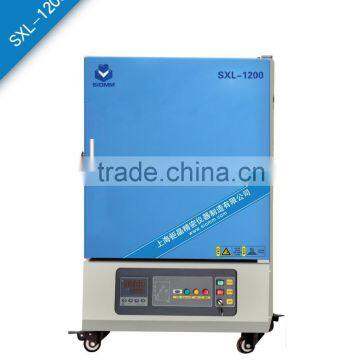

1200C Programmable Sintering Oven

Specifications

1)Best value programmable Sintering Oven
2) CE certificates,

We are 100% Chinese manufacturer, give you programmable Sintering Oven                ,save your cost  !

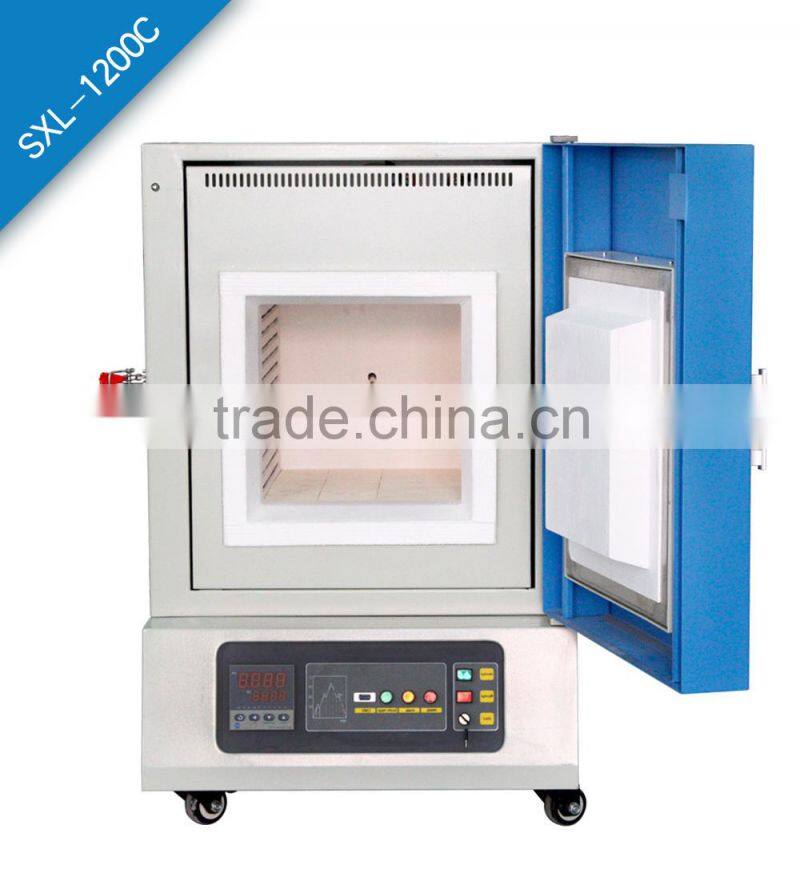

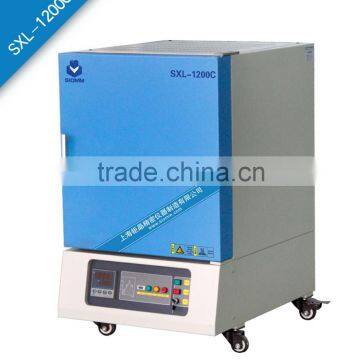

SXL-1200 Box type electric lab furnaceis adopted importing doped molybdenum resistance wire as heated element; it



adopts the dual shell structure and intelligent auto-control temperature system. The chamber is adopted the



polycrystalline alumina fiber, it is equipped with cooling system between the dual shell, which can rise and cool quickly.

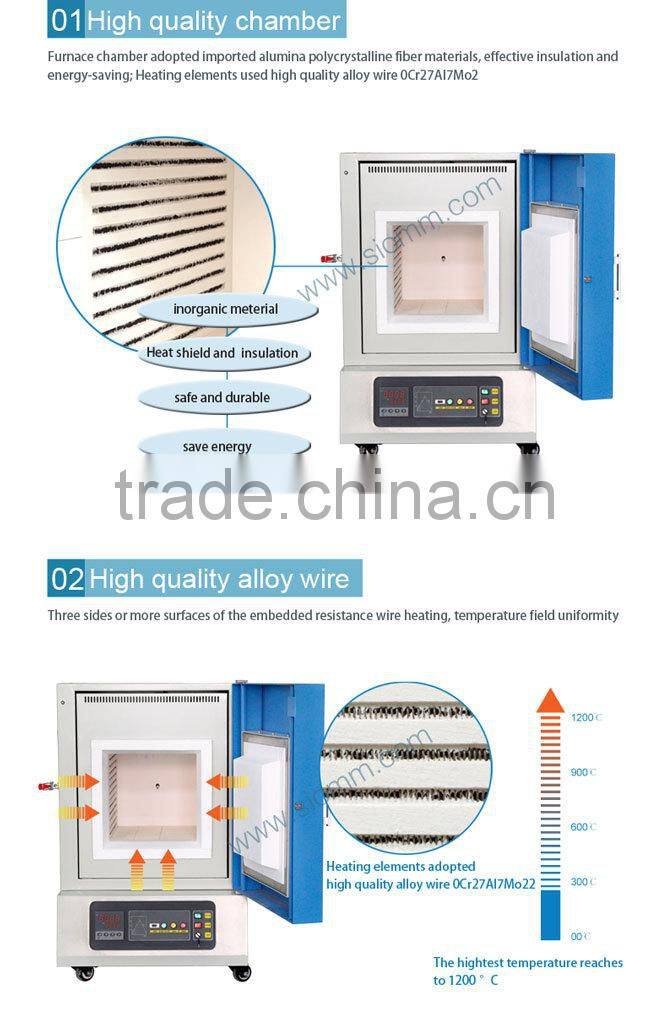

1. Furnace chamber adopted imported alumina polycrystalline fibers material, with good insulation properties and durable to use; Heating elements adopted high quality alloy wire 0Cr27Al7Mo2, maximum temperature can reach to 1200 °C;



2. Three sides or more surfaces of the embedded resistance wire heating, temperature field uniformity;



3. Side open type furnace door, open the door power outages;



4. Reserved 485 converter interface, can remote control of single or multiple furnace through software and Internet, real-time tracking , history recorder, output statements; can install the paperless recording device for data storage and output;



5. Over-temperature alarm and power failure, leakage protection, safe and reliable operation.







Universities, research institutes, industrial and mining enterprises to do the powder sintering, material handling, quality inspection purposes.











Model	SXL-1200	SXL-1200	SXL-1200
	Approved by CE certificate, ensure the safety operation of the machine. Certificate No.: GB/1067/4189/12 Issue 1
Chamber size (D x W x H)	300*200*120mm	300*200*200mm	400*300*300mm (Customizable)
Overall size	450*600*600mm	470*600*700mm	640*800*1050mm
Power supply	AC220V 50/60HZ	AC220V 50/60HZ	AC380V 50/60HZ
Rated power	3kw	4kw	7kw
Weight	60kg	80kg	190 kg

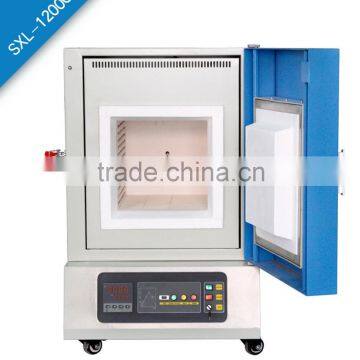

Furnace chamber	High pure polycrystalline alumina fiber, well thermal insulation and energy conservation
Heating element	0Cr27Al7Mo2
Temperature measuring element	N mode thermocouple
Temperature control mode	The temperature control system uses artificial intelligence technology, with PID control, self - tuning function, 30 the heating and cooling program
Working temperature	≤1150℃
Max temperature	1200℃
Maximum temperature rising rate	≤30℃/min
Recommend temperature rising rate	10℃/min
Constant temperature accuracy	±1℃
Standard accessories	crucible tongs and Oven glove each one piece
Optional accessories	Furnace hobs, a variety of alumina tube and corundum crucible, computer control software and paperless recorder, etc.
