Product Description:

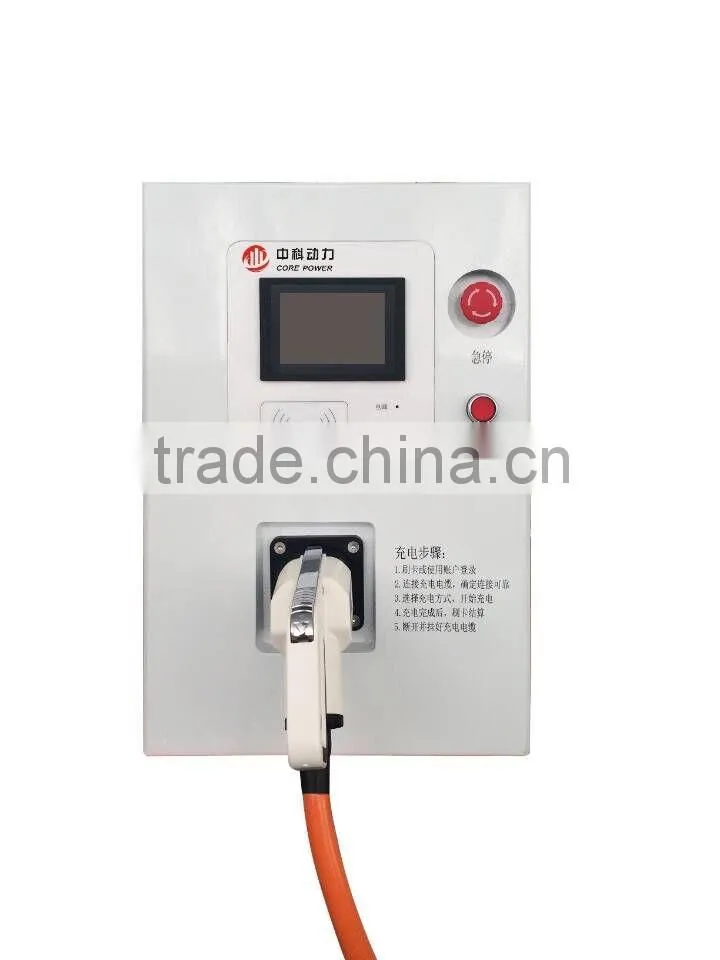

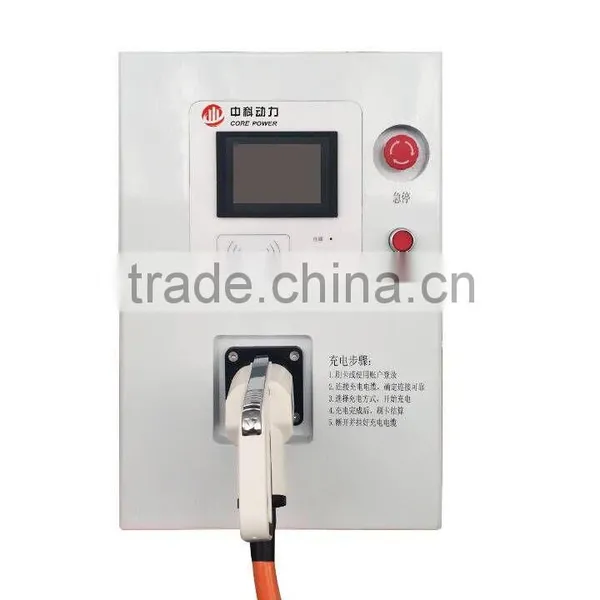

The DC charger provides electric car with car charger charging, mainly used in the following places:
Large, medium and small electric vehicle charging station;
urban residential area, shopping plaza, electric power business premises and other public places of electric car parking spaces;
High speed service area, station, pier and other transportation hub areas, etc..
Technical Parameters:
Modul |
EVC15A |
EVC15B |
|
Capacity |
15KW |
15KW |
|
Peak Power |
18KW |
18KW |
|
Working |
ZVS,PWM |
||
INPUT | |||
Phase |
3Phase, 3Wires ,PE |
||
Voltage |
380VAC(-15%+20%) |
||
Frequency |
45Hz-65Hz |
||
Power Factor(MAX) |
≥0.99 APFC |
||
Current THD |
≤3% |
||
OUTPUT | |||
Voltage |
0-450V DC |
0-750V DC |
|
Current |
0-33A |
0-20A |
|
Voltage Regulation |
≤±0.5%FS(FS Resistor Load) |
||
Current Regulation |
≤±0.5%FS(FS Resistor Load) |
||
Ripple |
≤0.2% |
||
Power Regulation |
≤±0.1%FS |
||
Protection grade |
IP34 |
||
Efficiency |
96% |
||
Voltage and current data sampling period |
<100ms |
||
Protection |
1, input / under voltage protection; 2, output over flow / short circuit protection; 3, the battery anti reverse connection, overheating, lightning protection, communication interrupt, moisture-proof, anti salt spray, anti mildew, rust protection and other protective measures function |
||
Moudle communication Interface |
CAN 2.0 |
||
Controller communication Interface |
CAN/RS485/RS232 |
||
Cooling |
Fan forced cooling |
||
Environment |
operating Temperature |
-20+50℃ |
|
Temperature |
10-90%RH |
||
Storage temperature |
-30℃ +70℃ |
||
Weight(Kg) |
20 |
||
Dimension(mm) |
483mm W×89mm H×500 mm D(Without mounting ears) |
||
1: What certifications do you get?
A: We have ISO, CE,CCC,etc.
2: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.
3: When to get the price?
A: We usually quote within 24 hours after getting your inquiry.
if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.
4. What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.
5. What about the Package?
A: Standard export package (Wooden carton with inner vacuum package) for long-distant ocean shipment and tough handling is provided. and we can make special designed for you if need.
6.How to contact?
A: Send your inquiry details in the below, Click “send” now!
