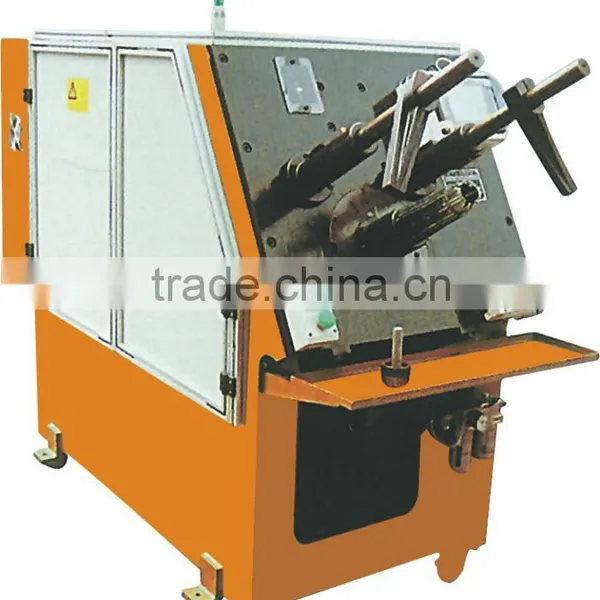

Motor Rewinding Machines
- 100 Set / Sets per Month
- QINGDAO/SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- DOING photovoltaic solar panels recycling production line
- Stainless Steel Double Kitchen Sink Middle Weld Seam Rolling Machine
- Stainless steel handmade sink hydraulic power of light direct press
- Stainless steel handmade sink R corner press machine Electrical box R corner press machine
- DOING supply photovoltaic solar panels recycling machine
Product Details
Place of Origin: | China | Brand Name: | XTY-SINOVANCE, XTY-SINOVANCE | Model Number: | MLR-5 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Description: This motor rewinding machines support lots of wires and cables,including DC wires, AC wires,HDMI, PC wires,USB and other kinds of wires and cables.
This high speed motor rewinding machines can wind and tie wires as you needed.Such as adjusting the length of the wire's head and tail.The motor rewinding machines can also support wires with magnet ring ,commodities suffix wire,and other special wires.
We can even reform the motor rewinding machines for your special needs if you have large production of wires and cables.
Main Parameter of Motor Rewinding Machines
Stator stack heihgt | 5mm-110mm |
Max.stator O.D | 160mm |
Stator I.D.range | 17mm-98mm |
Displacement of oil pump | 30F |
Air pressure | / |
Power supply | 380V/50Hz |
Power | 3.75Kw |
Dimension (L×W×H) | 1500mm×740mm×1600mm |
Weight | 1000kg |

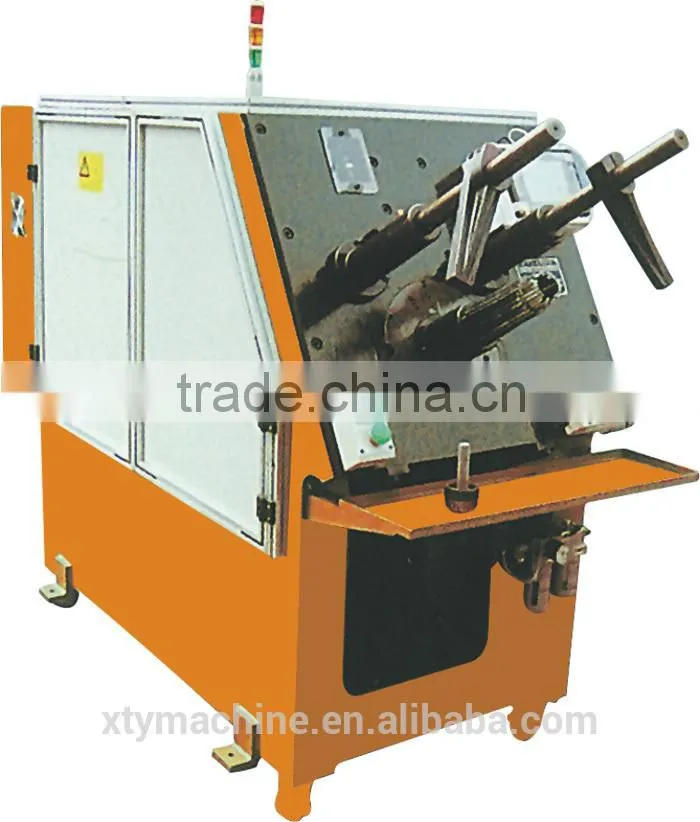

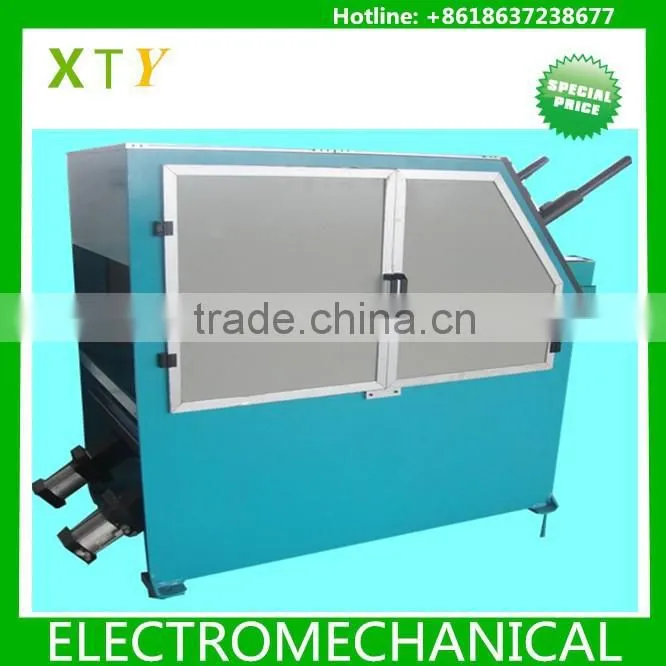

Pictures of Motor Rewinding Machines
Coil inserting machines
Paper inserting machines
Lacing machines
Final forming machines
Coils Made by Automation Toroid Coil Winding Machine
Packing of Motor Rewinding Machines
Loading of Motor Rewinding Machines
FAQ
1. How does XTY control the quality of the formed coil?
Our coil winding system consists of the parts like foot pedal control valves, pressure gauges and pressure plates. An engineer can control the winding speed, tougue, tension during the winding process. The gauge provides accurate tension readings during the winding process. The pressure plates within the tension system protect the wire insulation from getting damaged. All these features are used to make best quality coils.
2. How do transformer coil winders work?
Transformer winders consists of a microprocesser and and stepper motor to creat high winding speed. A spool of wire is affixed to the spool arm, and the wire is placed along tiny rollers for smooth movement. Winding parameters such as speed, wire pitch, turns and section winding are programed to the machine. Once the machine is swithed on, it begins the winding process.
Why Choose US?
1.Factory Based,competitive price. We are factory ourselves, We offer you directly factory price.
2. Big Production Capacity. Our factory covers an area of 40 acres with capacity of 3500 sets of Winding Equipment per year.
3.Long Factory History. Our factory have more than 8 years of experience in motor coil winding field.
4.Strategic Location. Our factory only 3kw to highway entrance. From factory to Xinzhen Airport only 1 hour drive by highway.
5. Latest Technology & Professional Engineering Team. Members of our technician team used to study abroad to update their knowledge.
6.Strice Quality Control System. Quality and Service is our core mission.
7.Experienced International Sales Team. Our sales mostly have been in international trading for over 5 years. Fluet in spoken English,Fast in response, customers' concern is always our concern.
8.Rich overseas project experience. We had customers from India, Turkey, Africa, South America,
America etc. To create value for customers is our infinite pursuit.
9.Timely Delivery and Guaranteed after-sale Service. Long-term cooperation with big logistic companies and shipping companies enabled us to deliver the machines as soon as possible. We send engineers abroad every year for assembling and technical support for customers.
