Agricultural Irrigation Diesel Engine Water Pump 2inch 3inch 4inch With Lower Price

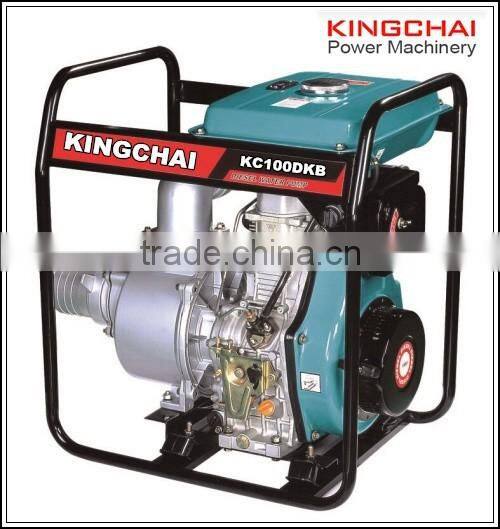

Agricultural Irrigation Diesel Engine Water Pump 2inch 3inch 4inch With Lower Price photo-1

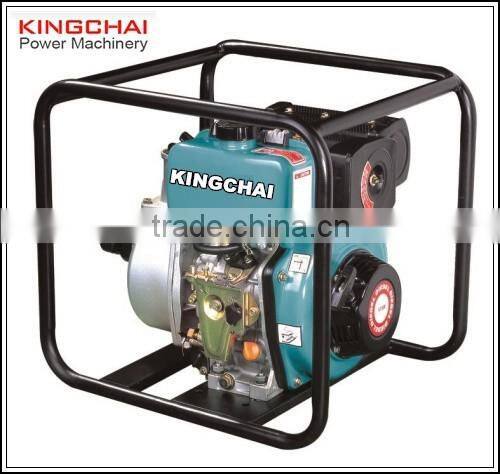

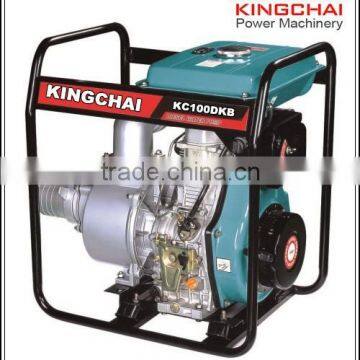

Agricultural Irrigation Diesel Engine Water Pump 2inch 3inch 4inch With Lower Price photo-2

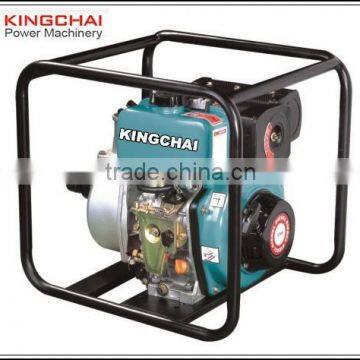

Agricultural Irrigation Diesel Engine Water Pump 2inch 3inch 4inch With Lower Price photo-3
US$ 150 - 220 MOQ: 20 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KINGCHAI
Model Number:
KC50
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name KINGCHAI
Model Number KC50
Theory Axial Flow Pump
Structure Piston Pump
Usage Oil
Power Other, 11hp
Standard or Nonstandard Standard
Fuel Diesel
Pressure High Pressure
Application Other, Agricultural

Agricultural Irrigation Diesel Engine Water Pump 2inch 3inch 4inch With Lower Price



Product Description
Model KC50DKB KC80DKB KC100DKB
Water Pump Suction.Discharge Port did. (mm) 50 (2 ") 80 (3") 100 (4") High Pressure Water Pump
Capacity Max.Capacity (m3/h) 36 50 96
ContCapacity (m3/h) 22 36 64
Head Max.Head (m) 26 25 31
Cont.Head (m) 15 13 16
Self-priming Time (s/4m) 80 120 180
Max.Suction Head (m) 8 8 8
Engine Model KC170F/E KC178F/E KC186F/E
Rated power (Kw) 2.5 3.7 5.7
Bore x Stroke 70x55 78x62 86x70
Displacement (cc) 211 296 406
Compression ration 20:1 19:1
Fuel consumption (g/kw.h) 284 280 273
Fuel tank capacity (L) 2.5 3.5 5.5
Lube capacity (L) 0.75 1.1 1.65
Rotation direction Clockwise Clockwise Clockwise
Lubrication system Pressure splashed Pressure splashed Pressure splashed
Lube oil type SAE-10W30 (above DC grade) SAE-10W30 (above DC grade) SAE-10W30 (above DC grade)
Fuel type (summer) 0#; (winter) 10# (summer) 0#; (winter) 10# (summer) 0#; (winter) 10#
Starting system Recoil starter/Electric starter Recoil starter/Electric starter Recoil starter/Electric starter
Engine Speed (r/min) 3000/3600 3000/3600 3000/3600
N.W./G.W. (kg) 35/37 52/54 64/67
Dimension (LxWxH) (mm) 500x420x500 560x440x550 650x480x600
Agricultural Irrigation Diesel Engine Water Pump 2inch 3inch 4inch With Lower PriceAgricultural Irrigation Diesel Engine Water Pump 2inch 3inch 4inch With Lower PriceAgricultural Irrigation Diesel Engine Water Pump 2inch 3inch 4inch With Lower Price

Agricultural Irrigation Diesel Engine Water Pump 2inch 3inch 4inch With Lower PriceAgricultural Irrigation Diesel Engine Water Pump 2inch 3inch 4inch With Lower Price

Company Information



Agricultural Irrigation Diesel Engine Water Pump 2inch 3inch 4inch With Lower PriceAgricultural Irrigation Diesel Engine Water Pump 2inch 3inch 4inch With Lower Price

Agricultural Irrigation Diesel Engine Water Pump 2inch 3inch 4inch With Lower Price





Packaging & Shipping

 Agricultural Irrigation Diesel Engine Water Pump 2inch 3inch 4inch With Lower PriceAgricultural Irrigation Diesel Engine Water Pump 2inch 3inch 4inch With Lower Price

FAQ



1.Q:Are you a factory or trading company?
A: We are a factory.

2.Q:About MOQ?

A:50set.

3.Q:Whats your delivery time?

A:Within 15-25 working days after your deposit.

4.Q:Is it all right to make customers brand?

A:Yes,if the quantity over MOQ.

5.Q:Whats your payment term?

A: 30% TT in advance and balance be paid against the copy of BL.
