Specifications

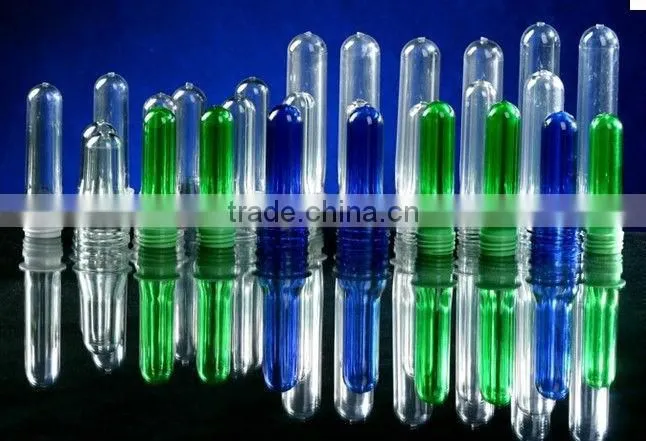

1000 to 5000pcs/hpreforms in all sizes and weights
better prices& services

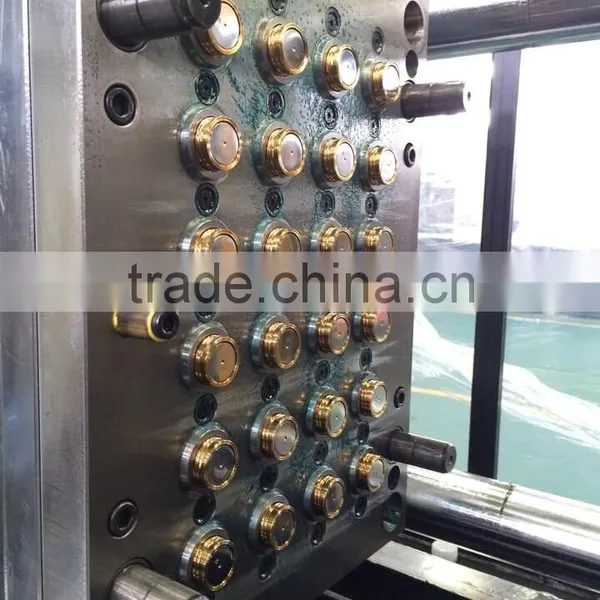

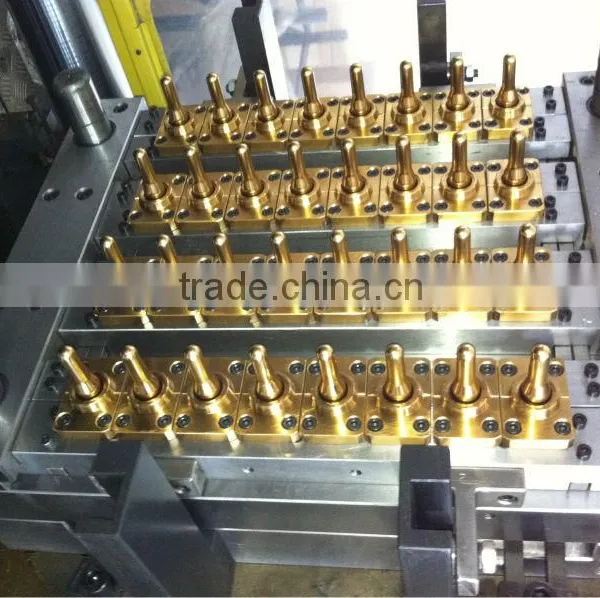

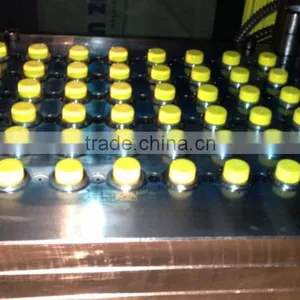

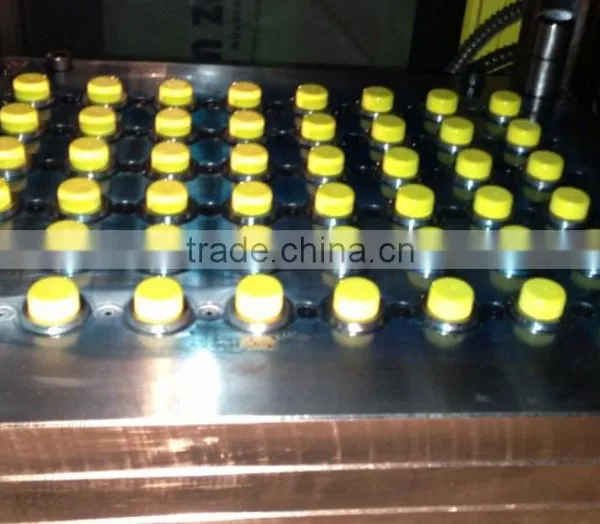

OEM Molds for preforms
long working life

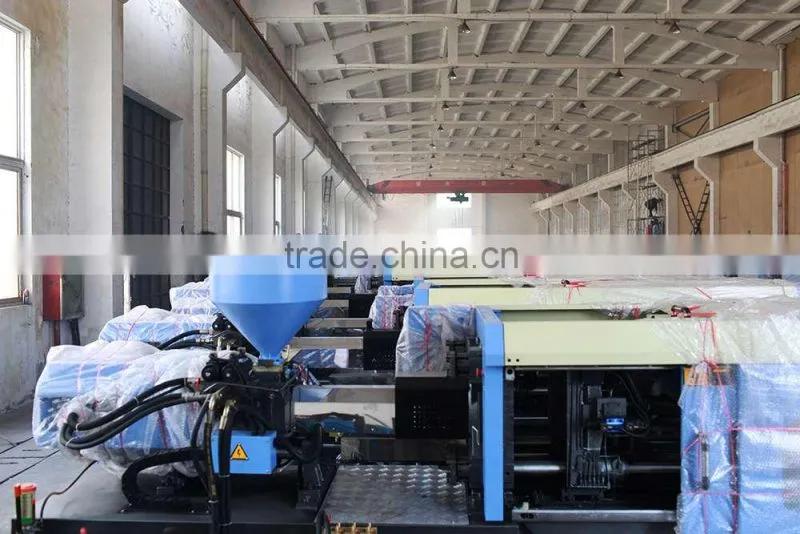

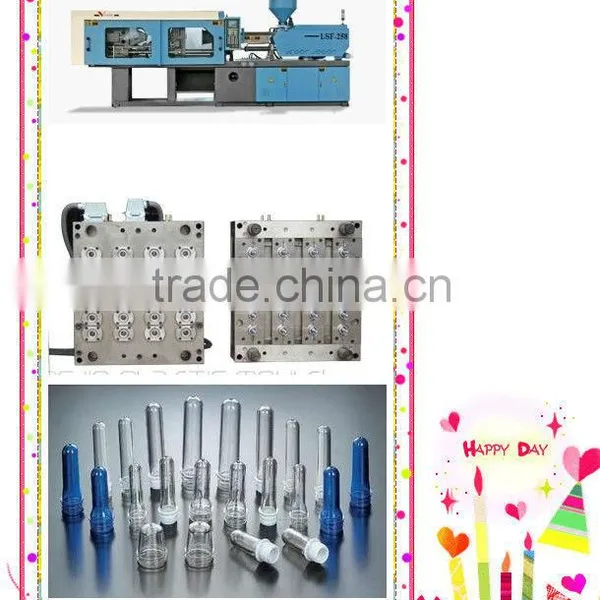

water bottle preform machine 258ton
We have different sizes and weights of different water bottle preform machine 258ton ,
Different model of machine with different production capacity, pls contact us for more details and professional services.
Specification of LSF-258;
|
INJECTION UNIT |
Unit |
LSF-258 |
|||
A |
B |
C |
|||
Screw Diameter |
Mm |
50 |
55 |
60 |
|
Screw L/D Ratio |
L/D |
24 |
21.8 |
20 |
|
Short Size |
Cm3 |
504 |
610 |
726 |
|
Injection weight |
G |
459 |
555 |
661 |
|
Injection Rate |
g/s |
121 |
146 |
174 |
|
Plasticizing capacity |
g/s |
32 |
41 |
49 |
|
Injection Pressure |
Mpa |
223 |
184 |
155 |
|
Screw Speed |
Rpm |
0-190 |
|||
|
CLAMPING UNIT |
Clamp Force |
KN |
2580 |
||
Space Between Tie Bars |
mm |
560*530 |
|||
Toggle Stroke |
mm |
505 |
|||
Max. Mold Height |
mm |
560 |
|||
Min. Mold Height |
mm |
200 |
|||
Ejector Stroke |
mm |
150 |
|||
Ejector Tonnage |
KN |
65 |
|||
Ejector Number |
P |
9 |
|||
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
||
Pump motor powder |
Kw |
22 |
|||
Heater Power |
Kw |
16 |
|||
Machine Dimension(L*W*H) |
M |
5.5*1.6*2.1 |
|||
Machine Weight |
T |
7.6 |
|||
- Clamping system: Faster response, steable and high rigidity
- Injection system: Accurate and flexible, lower rejection rate
- Control system: Computer and simple operation,molding data memory system
- Power system: Energy saving, high efficient and precise
- Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
- Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production

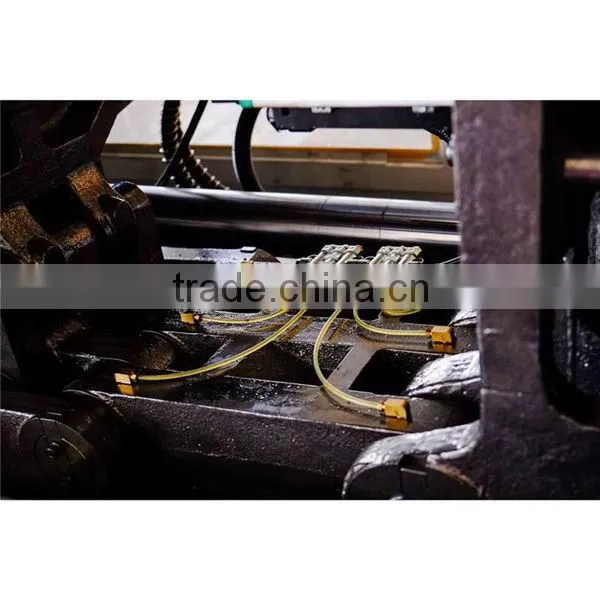

- Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
- Oil treasure: Filter of hydraulic oil,good for pump and valves
- Long working life: Imported spare parts and updated version
- Aftersales service: Professional & timely
- Delivery time:30-60 days
- Port of dispatch: Shanghai

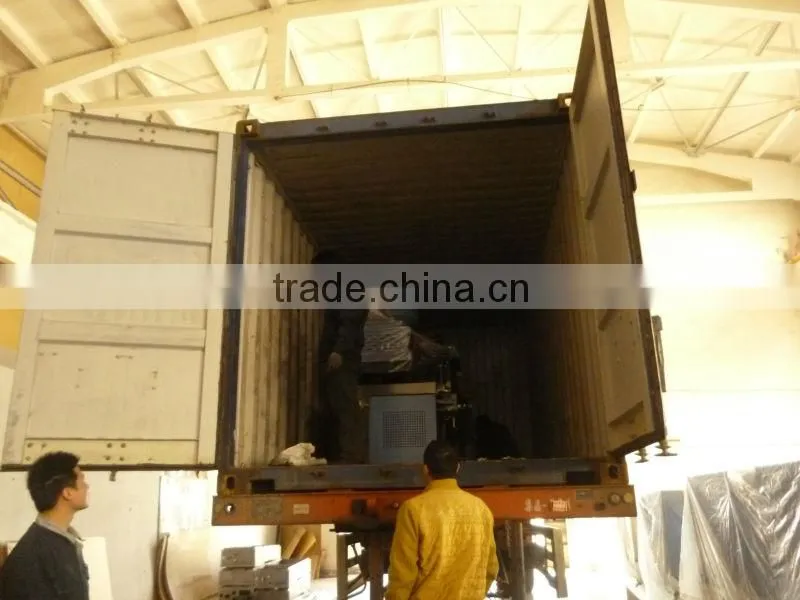

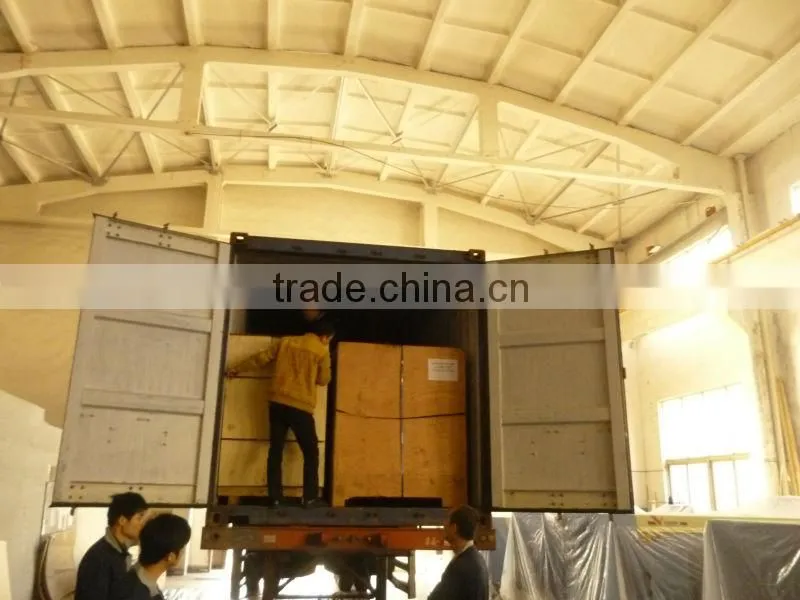

- Packaging & Shipping
- Our Services
one year guarantee
24 hours technical support by email
calling or door-to -door service.

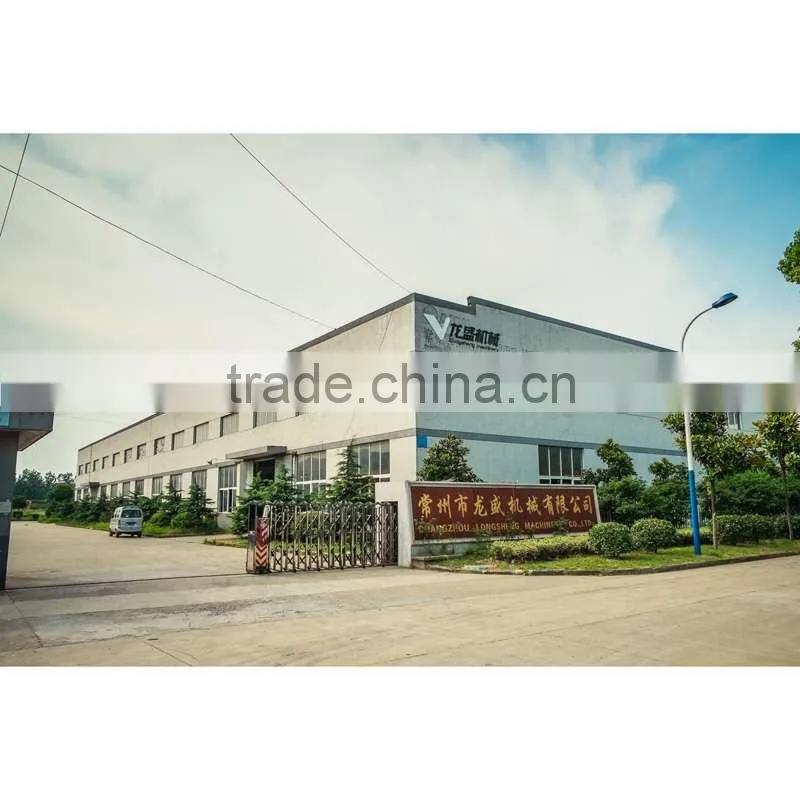

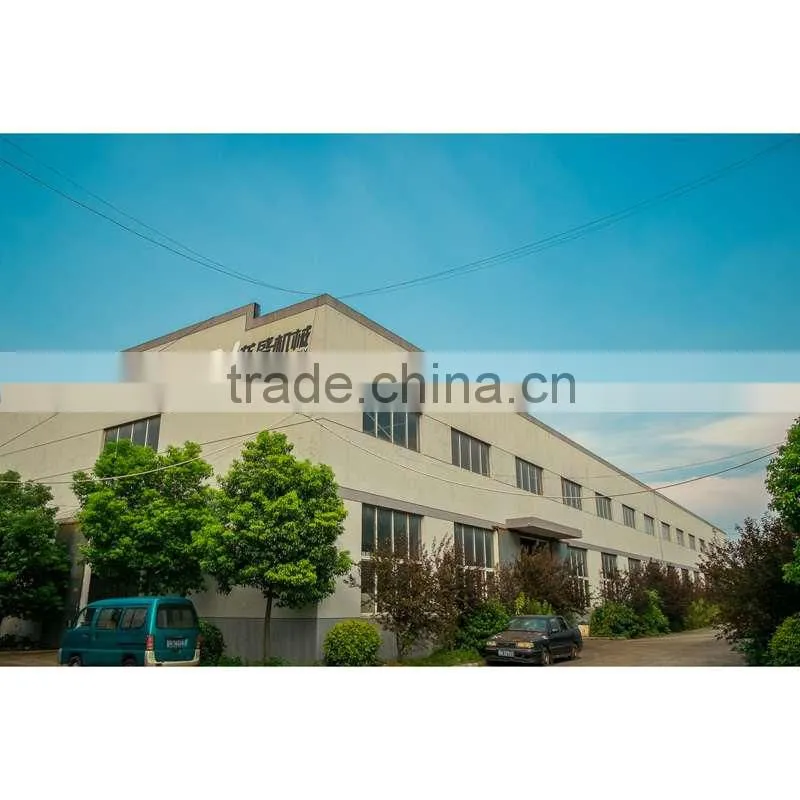

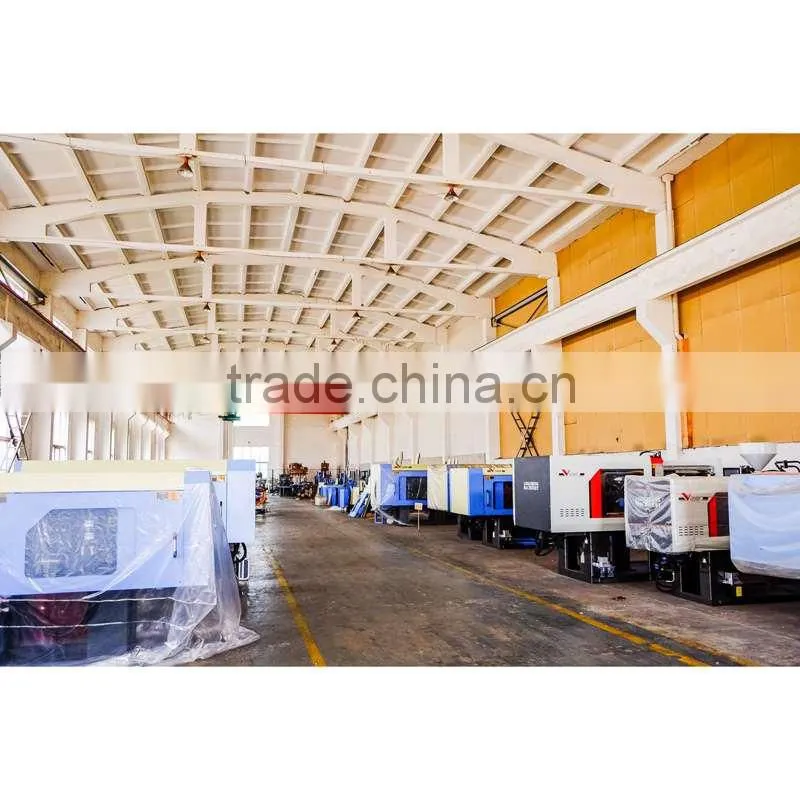

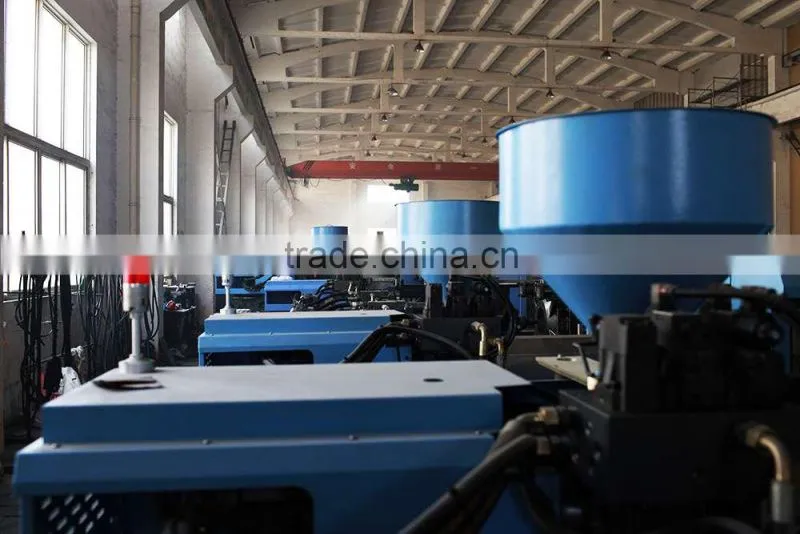

Company InformationWe are professional manufactuer of water bottle preform machine 258ton ,with more than 15 years,supply and export machines,injection molds,auxiliary equipments and complete production line to all of the world.
- FAQ
1,Machine computer imported from Taiwan.
2,spare parts including foot pads, mould clamps, a set of tools and one manual will be sent with the machine.
3,energy-saving servo motor; comparing with the ordinary ration pump, it can save the energy by 20%-70%, which can obviously lower the cost and lower the oil temperature and prolong the life of the machine.
4,Installation, test running of machines and training will be supported by our technicians, but all expenditure will be bound for the buyer.
