Specifications

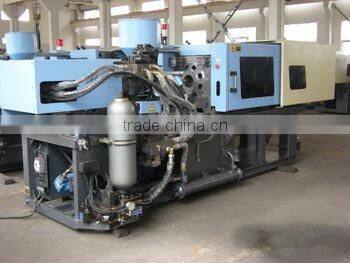

quick speed injection molding machine with servo valve.more precise and smoother.
Quick speed injection molding machine has two kinds.one is high speed for injection,the other is high speed for both injection and plasticizing.it is used for thin wall products,use HP N itrogen assisted injection ,the speed could be 2--5times of standard one.
INJECTION UNIT |
| Unit | LSF-528 | |||
A | B | C | D | |||
Screw Diameter | Mm | 75 | 80 | 85 | 90 | |
Screw L/D Ratio | L/D | 23 | 21.2 | 20 | 18.9 | |
Short Size | Cm3 | 1854 | 2110 | 2382 | 2670 | |
Injection weight | G | 1687 | 1920 | 2167 | 2430 | |
Injection Rate | g/s | 426 | 456 | 484 | 514 | |
Plasticizing capacity | g/s | 54.2 | 59.3 | 60.3 | 68.5 | |
Injection Pressure | Mpa | 191 | 168 | 149 | 133 | |
Screw Speed | Rpm | 0-150 | ||||
CLAMPING UNIT | Clamp Force | KN | 5280 | |||
Space Between Tie Bars | mm | 810*810 | ||||
Toggle Stroke | mm | 800 | ||||
Max. Mold Height | mm | 850 | ||||
Min. Mold Height | mm | 350 | ||||
Ejector Stroke | mm | 210 | ||||
Ejector Tonnage | KN | 158 | ||||
Ejector Number | P | 17 | ||||
OTHERS | Max. pump Pressure | Mpa | 16 | |||
Pump motor powder | Kw | 55 | ||||
Heater Power | Kw | 27.4 | ||||
Machine Dimension(L*W*H) | M | 8.1*2.2*2.6 | ||||
Machine Weight | T | 22 | ||||
