Semi Automatic Multi Head Machine For Dry Fruits

Features

1. Application: Granules, Seeds, Pulses, Gram Pieces, Potatos, and Sugar Etc.
2. Quantity: up to 100 - 1000 Gram

Bagger Specifications & Technical Data

Automatic length control through Electronic Photocell Panel through Eye mark Sensor

.

Sealing: Center Seal.

Servo Pull system (Servo Panasonic Make)

All around Stainless steel covering.

Complete Touch Screen Display in Bagger Monitor.

Digital PID Type temperature controller for accurate control of sealer temperature

P.L.C. Controlled system. (PLC Delta make)

Touch Screen display for setting of parameters of the machine

Pneumatic Technology used (Pneumatic Cylinder make Jenetics)

Power - 3.5 Kw 220 V, 50 Hz.

Compact and robust machine.

Heavy Duty Belt pulling system for pouch.

Very simple operation and low maintenance.

Speed 50 Packs Per Minute. (Dry Run).

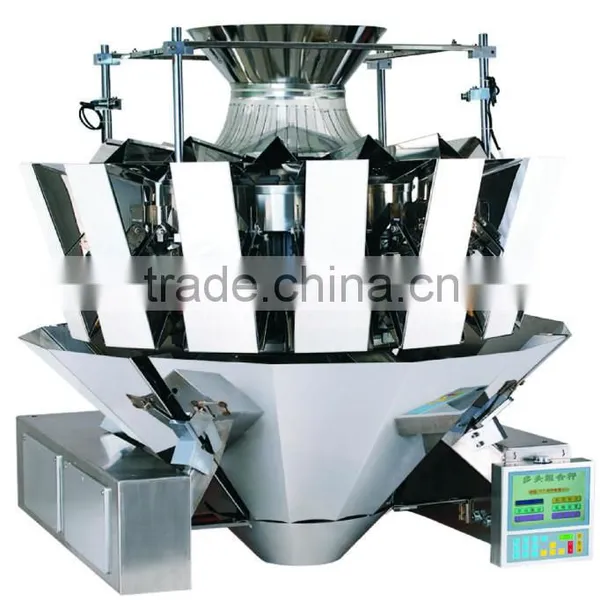

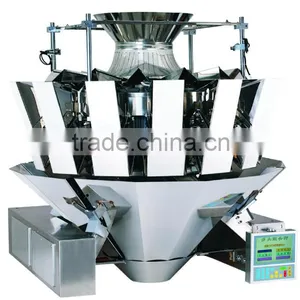

Multi Head Weigher Specification

Max Weight: 1000 Grams (Per Single Dump).

Measuring Method: Load Cell Based combination weighing

Weighing Accuracy: ±0.5 5 Gram. (Depending on the grain size of various Variety of Products)

Digitals Sensors enhance the speed, accuracy & anti jamming capability.

Perfect combination of high speed & high accuracy.

The opening and closing speed of Weigher happens can be adjust to be avoiding material Falling into pieces or being blocked.

Timing Hooper.

Stainless steel with IP65 water proof, Dust proof and erosion proof design keeps the Accessories hygienic. Step Motor drive with speed control.

The function of data statistics an make records such as pack no pass rate average error of each pack etc.

Each linear feeder amplitude can be auto / manual adjustable will ensure the products Easy flowing with high accuracy.

Liquid crystal and touch screen with optional language makes it easy to operate.

Speed: Up to 30 40 Packs Per Minutes. (Depending on the grain size of various Variety of Products)

Filling Heads: 10 Heads. Structure: Stainless Steel

Power: 1.0 Kw.

Frame Protection: IP 65

Preset Program: 50

Display Screen: Color Display, 5.7 LCD with Digital Input Keypad.

Power Supply: 220 V, 50 Hz

Optional Attachments

Plate form with Stare Care

Pendulum Bucket Elevator (For Continuous Material Running)

Four Line Ink Coding Systems Extra (For Automatic Coding in Pouches)

Extra set of Former assembly (For Different 2 Size Pouch Filling

Air Consumption: Dry air 4-5 CFM at 6-bar pressure. (For Running Machine)
