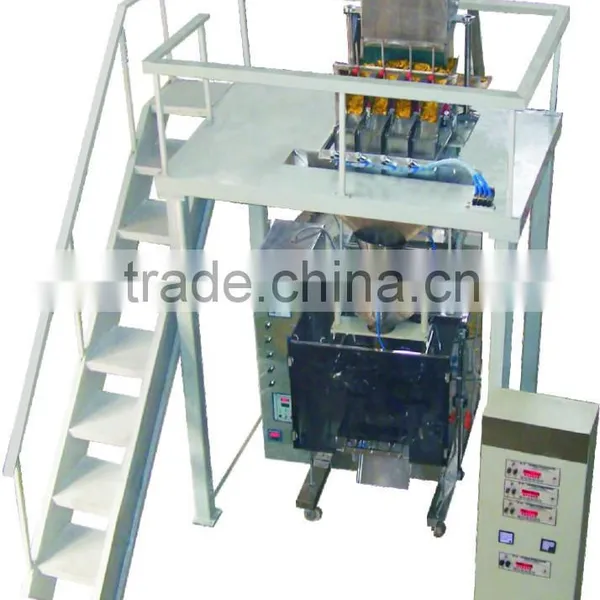

Automatic From Fill & Seal Machine With Two Head for Chana

Name: Automatic From Fill & Seal Machine With Two Head for Chana
Brand: Authentic
SKU: 103342589

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Uttar Pradesh, India

Brand Name:

Authentic

Authentic Designers

Payment & Shipping

Payment Methods:

Port of Shipment:

As Posible

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Uttar Pradesh, India

Brand Name Authentic

Model Number AD-AFFS-WF-TH

Voltage 220VAC

Power(W) 3.5kW

Weight 500Kg

Dimension(L*W*H) As per order

Certification ISO 9001:2008

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

This machine is used for packing of granular, powder and freeflowing products such as Dry Fruits, Beads, Sugar etc.

Salient Features

Compact and robust machine with high production capacity.
Automatic length control, through eye mark sensor. Sensing adjustable to accommodate a variety of color schemes of pouches.
Automatic totalizer.
P.L.C. Controlled System
Digitally MMI Display for Parameter Setting.
Digital Temperature Controller (PID Type)
Adjustable weight for different bulk density of product
Extra cup set will be needed for different weight.
Option for inert gas flushing in the pouch.
Option for individual pouch cutting or in chain with perforation with V groove type sealing.
Automatic centralised lubricating pump.
All contact parts with material are made of stainless steel.

Technical Data

Packing Material	Heat sealable laminated pouch material. (Roll form)
Capacity	Up to 1000 grams
Sealing	Center Seal, Three Side & Four Side
Filling System	Volumetric Cup Filling System
Compressed Air Required	3 4 CFM at 6 Bar Pressure
Sealing Type	Center Seal/ three side seal/four side seal.
Max Roll Width / Dia	400 mm / 300 mm
Power	2.0 Kw , 230 Volt, 1 Phase, 50 Hzs. AC.
