Specifications
SS structure automatic auger filler with plc control PID control photocell length control touch screen display in 1.5kw

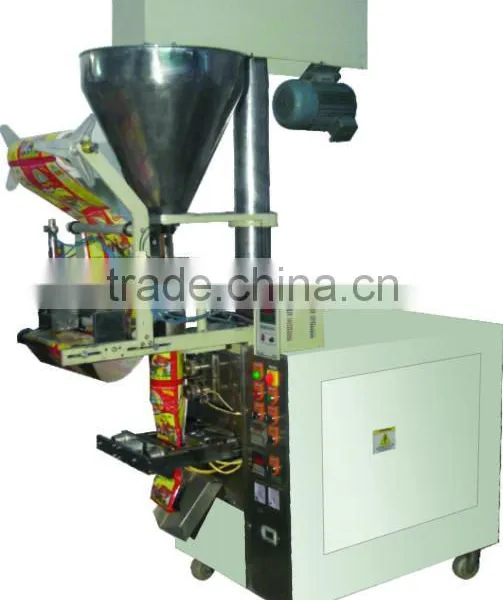

FFS(PNEU)WITH AUGER FILLER
The Automatic Form Fill Seal machine pneumatic type with auger filler is fully automatic and most suitable machine for packing powders and free flowing products in a wide range of consumer packs.
APPLICATION
All Powder products such as milk powder detergent powder pesticides etc can be easily packed with this machine.
SALIENT FEATURES
Microprocessor based state of art technology.
Electro-pneumatic technology used.
Compact and robust machine.
Automatic length control, through eye mark sensor. Sensing adjustable
toaccommodate a variety of color schemes of pouches.
Option for 4-line ink coding system for printing mfg., expiry date etc.
Real time mimic for input and output signal.
Option for inert gas flushing in the pouch.
Option for batch cutting and individual pouch cutting.
Very simplified operation and low maintenance.
All contact parts with material are made of stainless steel.
Machine mounted on caster wheel for easy movement.
Provision can be made for level sensor and automatic belt/bucket conveyor system.
‘V’ Groove Type Sealing with Perfect Integrity.
Sealing: Center Seal Type.
Filling with Auger Filler System.
Speed: 25 – 30 pouches per min.
Power: 1.5 Kw, Single phase.
P.L.C. Controlled System.
Compact and Robust Machine.
Very simplified operation.
All Contact Parts are made of Stainless Steel.
All around Stainless Steel Covering.
Low maintenance.
Pneumatic Technology Used.
Electronic Photocell Control system for automatic length control.
Digital Temperature Controller.
Motor: 2 Motor Crompton Graves. 1.5 H.P for Auger & 0.5 H.P Main Motor.
Air Consumption: 2 – 3 CFM Compressor at 6 bars Pressure.
Compressed air connection to be provided by the customer.
