Three Axis Fluxgate Manetometer Made in China

Name: Three Axis Fluxgate Manetometer Made in China
Brand: HUASHUN
SKU: 103327289
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shaanxi, China

Brand Name:

HUASHUN

Xian Huashun Measuring Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Lian yungang/Shanghai/Tianjin or other port as customer requests

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shaanxi, China

Brand Name HUASHUN

Three axis magnetometer

Product Description

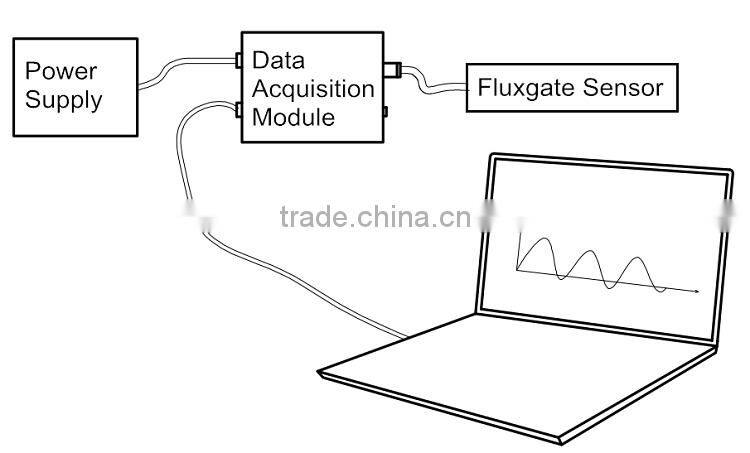

The three axis fluxgate magnetometer consists of a fluxgate sensor, a data acquisition module, a host computer, and host computer software.

Parameters

Performance	Measuring Range			±70uT~±1mT, Note: The range varies according to sensor model.
	Linearity			0.01%
	Display Format			0.1nT/10^-6Gs/10^-3mOe
	Precision			0.01%+reading
	Sample Frequency			200Hz
	Noise	Frequency domain noise		≤6pT/rms√Hz@1Hz(Min)
		Time domain noise		≤0.1nT RMS @(Min) 10 times per second
	Orthogonal Degree			≤±0.2°
Electrical Parameter	Operation Voltage			+5VDC
	Power Supply Mode		Portable power supply	Continuous operation for 9.5 hours after full charge
			Regulated power supply	Work continuously
	Working current			≤700mA
	Power consumption			≤4W(excluding host computer)
	Water proof Grade	Probe		IP68
		Power supply		Non water proof
		Data acquisition module		Non water proof
		Computer		Non water proof
	Applicable Operation Temperature			-13℉~176℉
Mechanical Parameter	Size	Probe		2728108mm
		Data acquisition module		3576100mm
		Computer		14" high quality laptop computer
	Weight	Probe		≤155g
		Data acquisition module		≤252g
Function/ Mode	Unit			nT/Gs/mOe
	Measuring Mode			Absolute value measurement /Relative value measurement
				Relative value measurement
	Data Transmitting			Data Transmitting by Cable( Ethernet cable)
				TCP protocol
	Data Saving			Text format
				Binary format
	Display			Two dimensional waveform display
				Numerical display
	Zero Setting			If sensor is working in zero magnetic environment, magnetic shield is recommended.
