External Liquid Level Meter

Name: External Liquid Level Meter
Brand: Huashun
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 300 Piece / Pieces per Month
Port Shenzhen/Shanghai/Tianjin or other ports as customer requests
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Shaanxi, China

Brand Name:

Huashun

Model Number:

HS-2000

Product Description

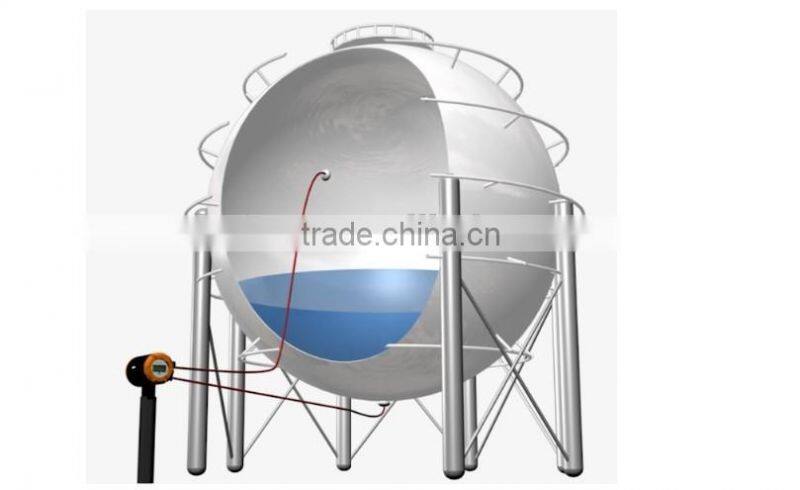

The External Ultrasonic Liquid Level Meter is a great revolution in liquid level measurement history because the probe of such product is installed on the external surface of tank wall without drilling. Tank can be still in use during installation, maintenance, repairing and replacement of the product. Therefore it is economical, safe and convenient.

Advantages

1) Non-contact measurement: the best measuring method among industrial instruments.
2) No drilling on tank wall.
3) Installation does not disturb nomal use of tank.
4) Auto calibration.
5) Strong anti-interference capability.
6) Applicable to virulent, highly corrosive or high pressure liquid and liquid in various complicated operating condition or explosive gas atmosphere.

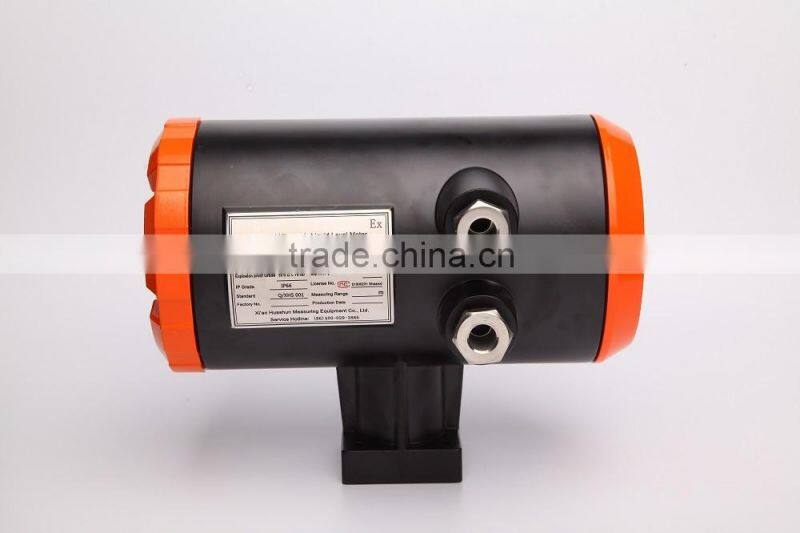

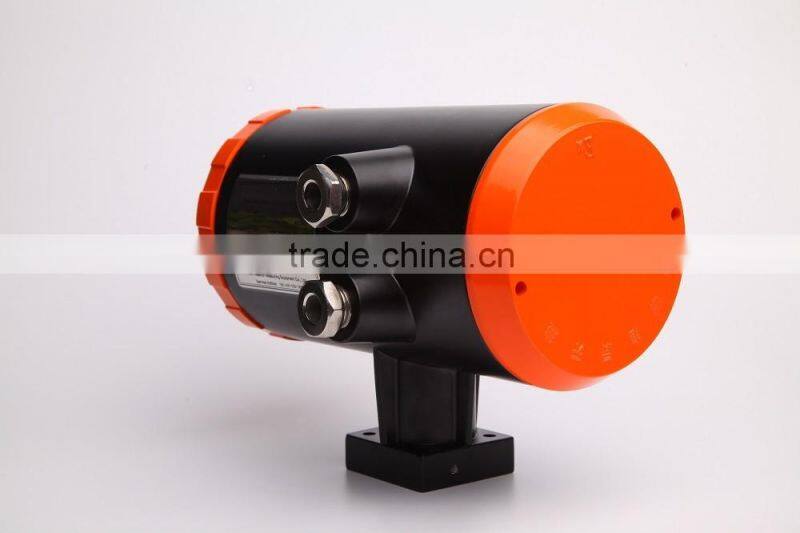

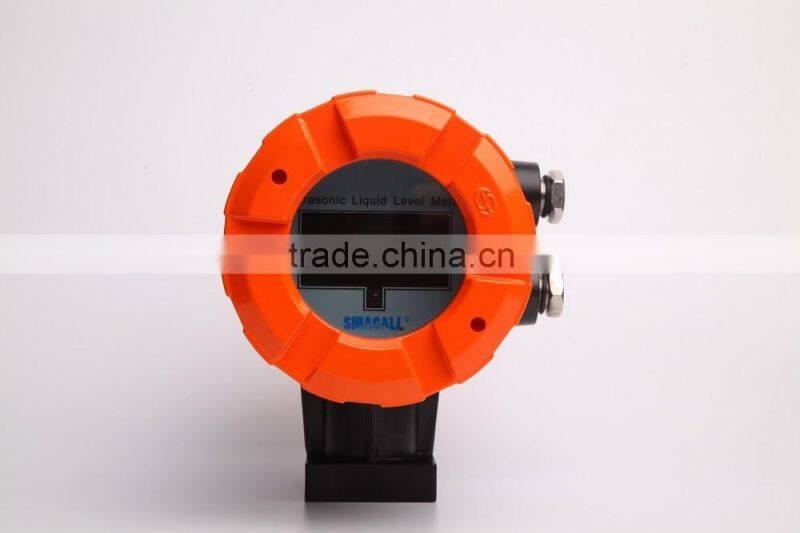

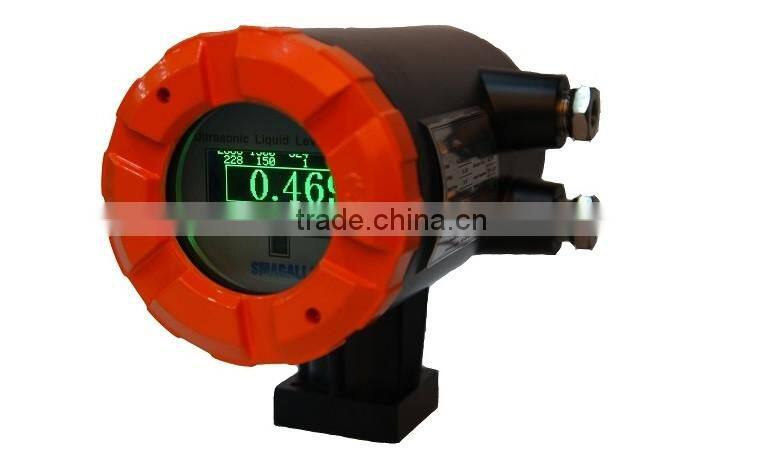

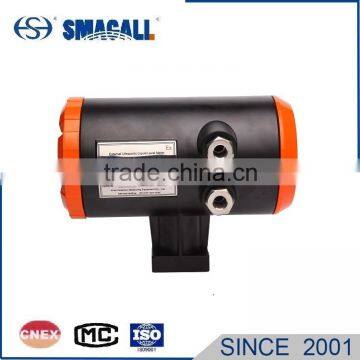

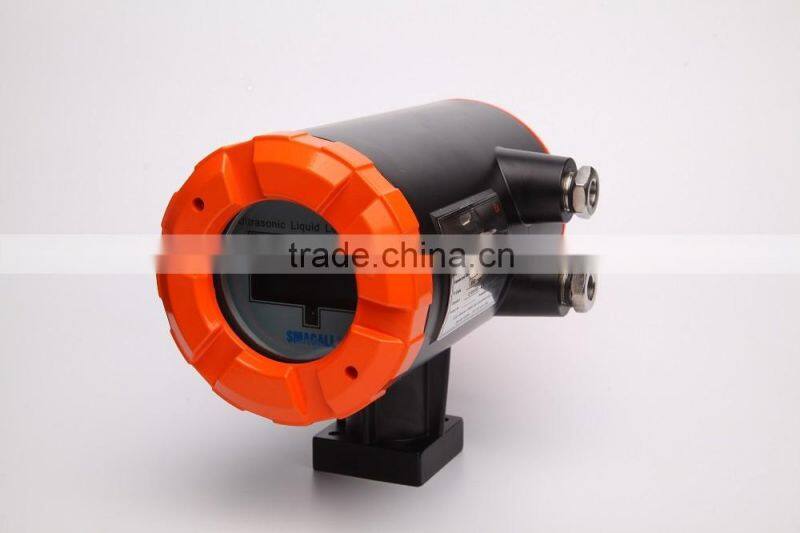

Detailed Images

Parameters

Parameters	Value
Measuring range	3m, 5m, 10m, 20m, 30m
Display resolution	1mm
Short time repetition rate	1mm
Measuring error	1‰～1%( Excessive wall thickness and instability of pressure and temperature may affect measurement precision.)
Span shift	±10 m
Current output	4～20mA，Max load 750Ω
Communication interface	RS-485, IrDA
Ambient temperature for operation panel	-22℉~158℉
Ambient temperature for ultrasonic probe	-58℉~212℉(we can provide wide temperature range probe according to customer’s request）
Ambient humidity	15%～100%RH
Explosion proof mark	ExdⅡCT6
Housing Ingress protection	IP66
Liquid level display	6 digits OLED display (Unit: m)

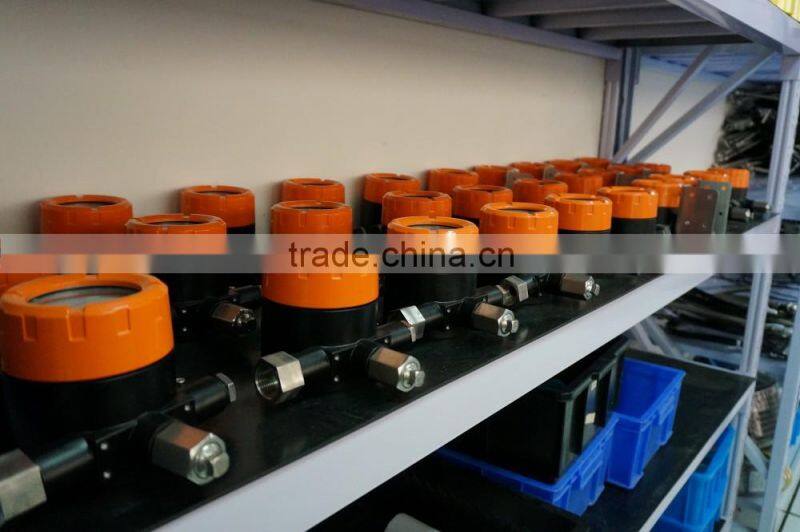

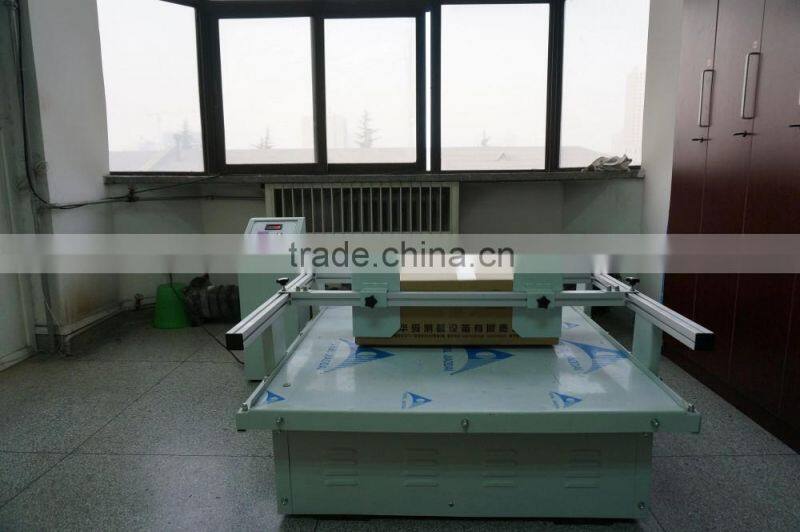

Packing & Delivery

Support for land, sea and air transport.

Support for multiple logistics.

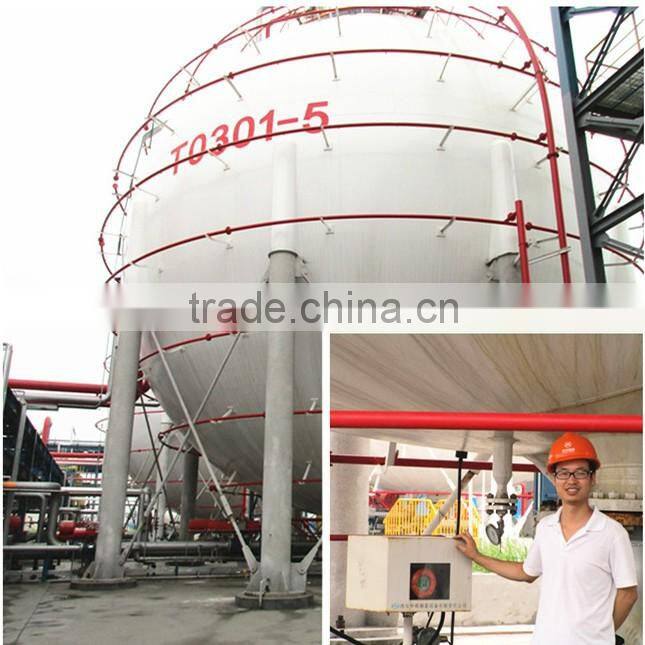

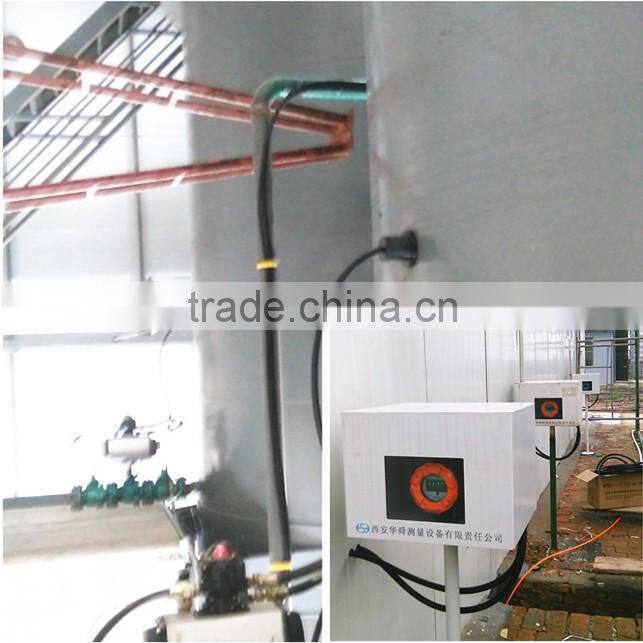

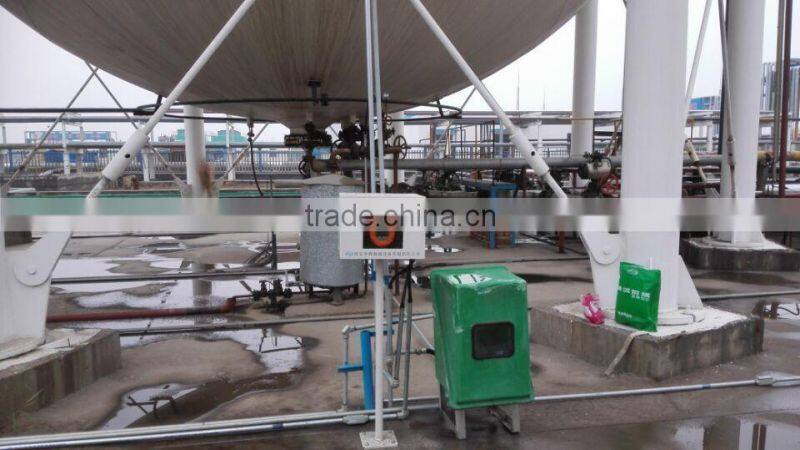

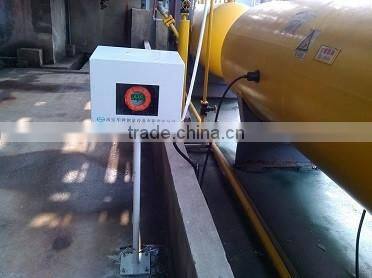

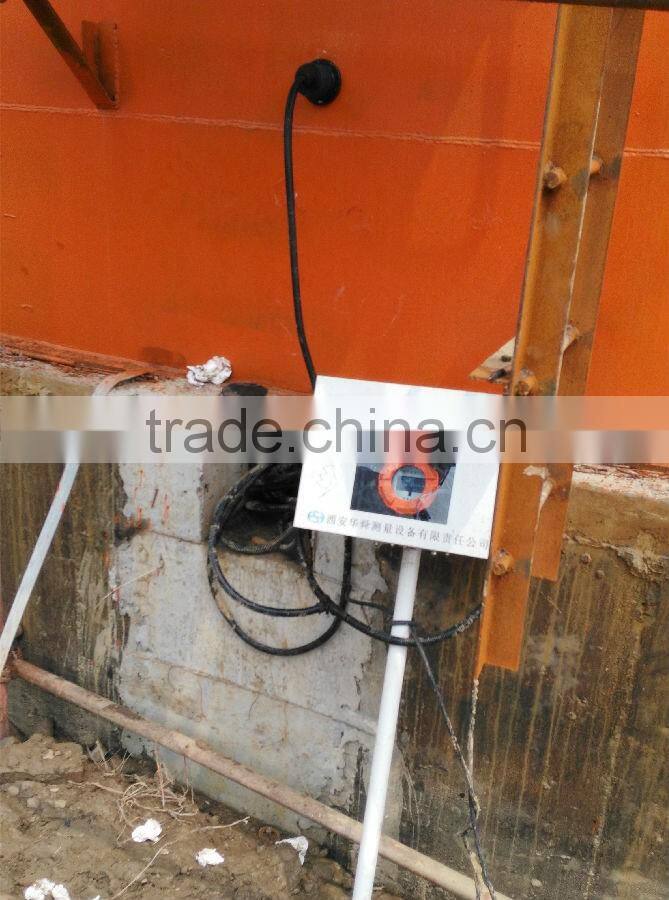

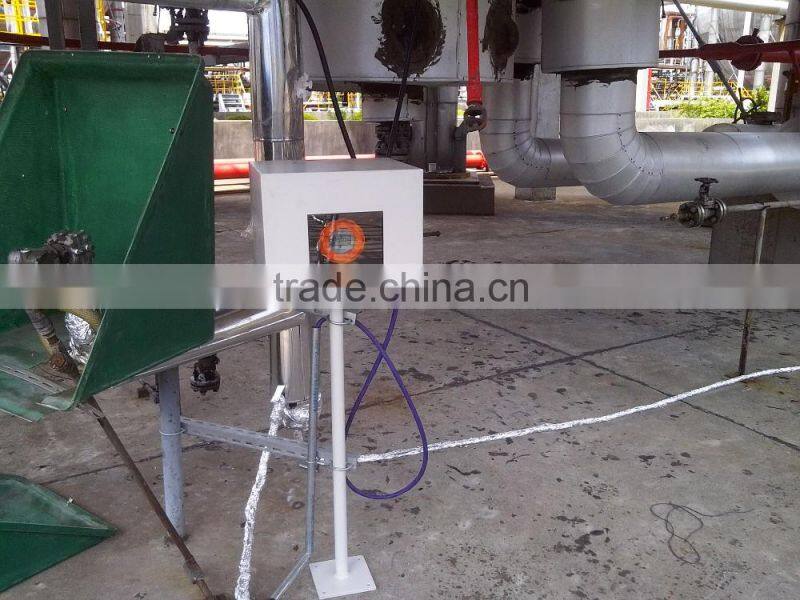

Application

Our Customers

Why Choose Us

Founded in 2001 Xi'an Huashun Measuring Equipment Co., Ltd. is a high-tech enterprise specializing in development and production of External Liquid Level Measurment Equipment and Weak Magnetic Field Measurement Equipment.

The key members in R&D department have rich overseas learning and working experiences and the company cooperates with some universities and scientific research institutions.

Our company's philosophy is "Quality is of the most importance; creation creates future." We truly welcome overseas buyers an suppliers to contact us for business cooperation on the basis of equality and mutual benefit.

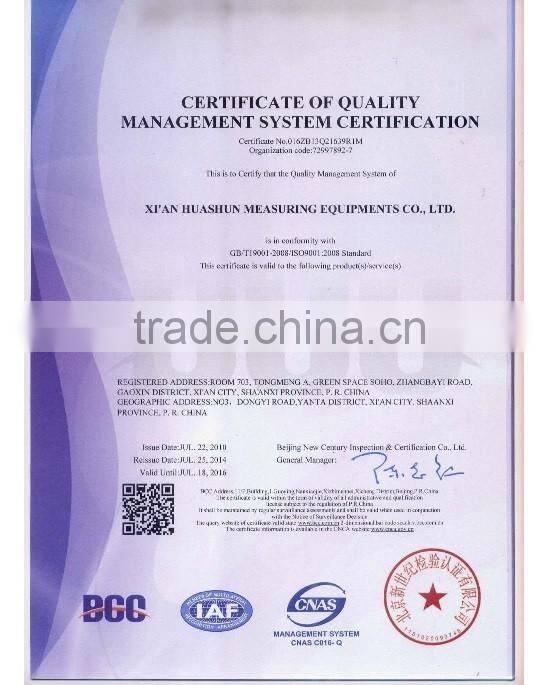

Certifications

ISO

Business Lisence

FAQ

Q:How long will you give me the reply?
A: We will contact you in 8 hours as soon as possible.

Q:Could I get a sample?
A:Yes, we can provide you a sample in a relatively favorable price.

Q:Could you provide me the shortest lead time?
A:We have products in our stock, we will try our best to satisfy you.

Q:Could I be your agent?
A:Of course, we sincerely invite you to be our agent and provide products training.

Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account, we will give you the receipt and arrange to produce immediately.

WE WILL QUOTE YOU WITHIN 8 HOURS!

Contact Us

Xian Huashun Measuring Equipment Co., Ltd.: Contact nameDolly Zhang; Phone0086-029-65692249; AddressRoom 703, Block A, Lvdi SOHO Tongmeng, 1st Zhangba Road, Gaoxin District
