Valves and Fittings 1/4 inch pex ball valve
1. All Product Type: brass ball valves, brass gate valve, brass stop valves, brass angle valves, brass check valve,brass flat gate valve, manifolds, bibcock,etc.
2. Product Name: Valves and Fittings 1/4 inch pex ball valve
3. Nominal Pressure: 2.0MPa
4. Maximum Steam Pressure Description: 150 pounds per square inch
5. Type: Ball Valve Series
6. Material: Brass
7. Temperature Range: -20C to +110C
8. Thread Standard: ISO 228
9. Power: Manual
10. Surface: Sand Blasting of ball valve
11. Media: Water, Non corrosive liquid, air
This brass valve body is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. Brass can be connected to copper, brass, plastic, aluminum, and welded steel. This valve has a lever handle for manual on/off control. Polytetrafluoroethylene (PTFE) seats reduce the risk of leakage. The valve is full port for reduced friction; its inner diameter is the same as the inner diameter of the pipe it connects to for maximum operating efficiency. This valve has female NPT threads for connecting to male threaded pipes, creating a tighter seal than straight threads.
Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball's position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.
- Chrome-plated brass for higher corrosion resistance than regular brass or steel
- Lever handle for on/off manual control
- Full port flow for higher operating efficiency than standard port
- Inline valve for connecting two pipes going in the same direction
- Female and male NPT threads for connecting male threaded pipe fittings to female threaded pipe fittings
- Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
- Lever handle for manual on/off control
- PTFE seats and stem packing reduce the risk of leakage
- BS-1316 pex ball valve

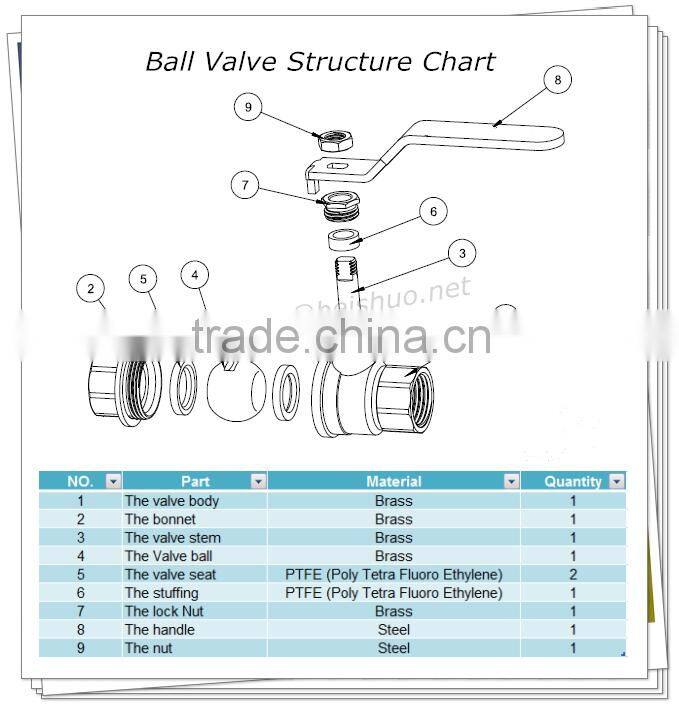

- Dimension Description
- BS-1316 pex ball valve SIZE: 3/4" ,1/2", 3/8", 1"

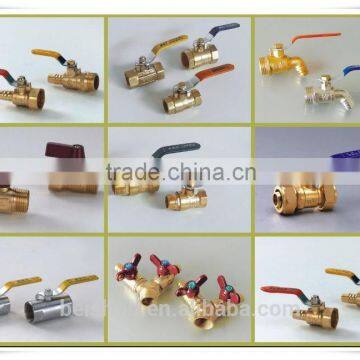

More Products: brass ball valves, brass gate valve, brass stop valves, brass angle valves, brass check valve,brass flat gate valve, manifolds, bibcock,etc.
Color box, metal box,blow case, and then in wooden pallet or according to customer’s requirment.
