Specifications
High quality CPM series centrifugal water pump1. Low noise
2. High quality
3. Competitive price
4. 100% Copper Wire

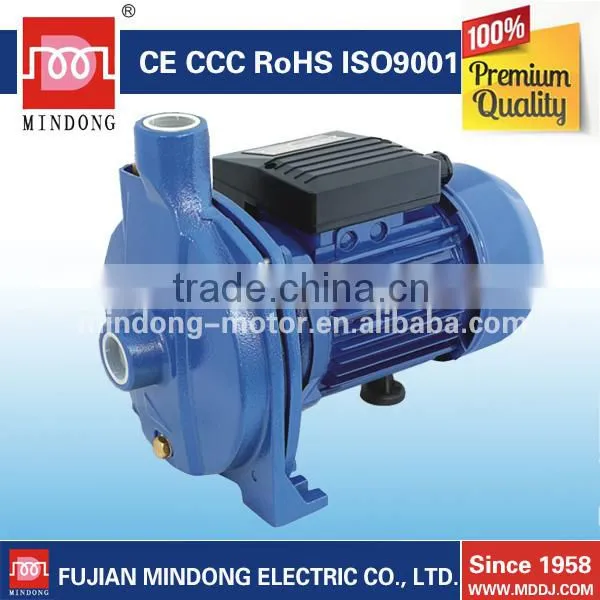

High quality CPM - 158 low noise water pump
Features
The CPM-158 Small Centrifugal Pumps are high-efficient, power-saving and compact in structure, convenient to operate and maintain .The hydraulic characteristic is with high head and small capacity. They are suitable for both domestic and industrial applications to convey clean water and non-aggressive chemical liquid, also can be applied to supply the water for garden, hotel, villas and agricultural irrigation, etc.
1) 100% copper wire, and automatic wiring.
2) Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision.
3) Demagnetization of stainless steel nuts.
4) Anti-rust treatment castings and electrophoresis.
Application
Applied to pumping such liquid which is clean, no solid matter or frictional matter, low viscous, noncorrosive, non-crystallizable, chemically neutral and close to water. Such as:
1. Tank filling
2. Domestic water supply
3. Water transfer
4. Pressure boosting
5. Irrigation
Construction
Centrifugal Pump Body: cast iron
Motor Housing: aluminum
Shaft: 45# steel /stainless steel
Impeller: Brass / S/S optional
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44 /IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/metalized carbon
Installation
Centrifugal Pumps should be installed in a covered area, protected against the weather.
Operating limitations
Max ambient temperature up to 40°C
Max fluid temperature up to 80°C
Max pressure up to 10 bar

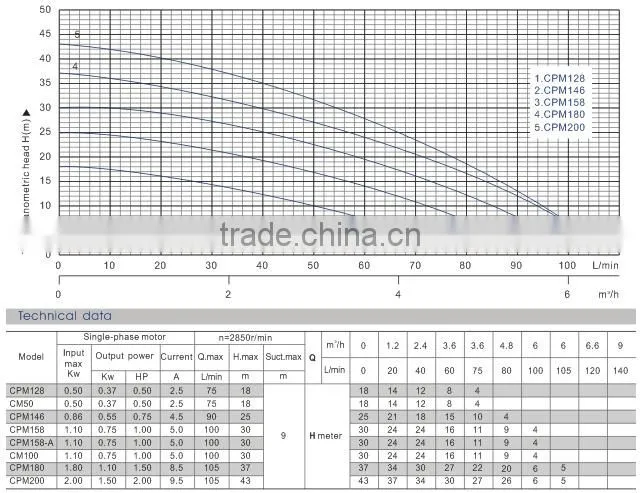

Technical parameters
