Specifications
chip led rigid pcbEfficient Quotation,Strict Production,Reliable Quality
Approval: UL,ISO9001

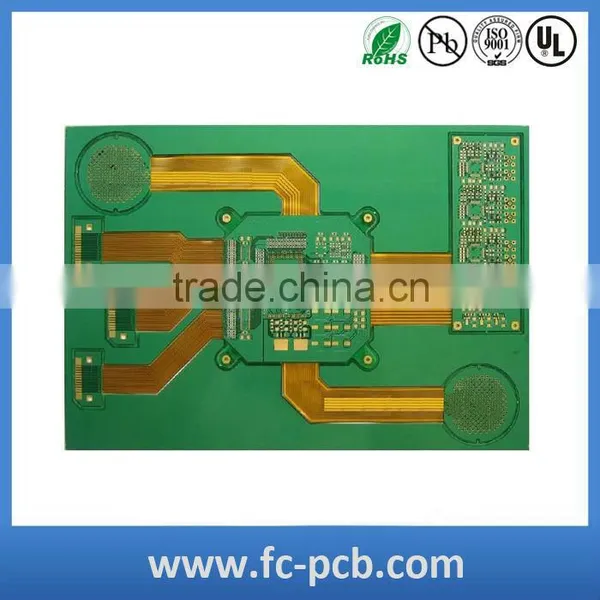

Your Best Choice for Flex PCB and Rigid-Flex PCB Manufacturing & Assembly
1. Material Combination Polyimide & FR4
2. PCB have solid Rigid Areas and Flex areas with reduced Layer Count
3. Improves design freedom
4. Used in Automotive, Camera systems back & Front, Rain Sensors, Sensors.
ADVANTAGES:
We provide small and medium-volume Rigid-Flex PCB production, can make up to 10 layers Rigid-Flex Circuit Boards. Rigid-Flex PCB line width / spacing can be achieved minimum 3mil, we also provide Rigid-Flex Circuit Boards with HDI, Impedance Control.
TECHNICAL DATA:
Capabilities |
Standard Production |
Advanced Production |
Layer Count / Technology |
2 layer - 10 Layer |
2 layer - 12 Layer |
PCB Thickness Range |
75µm - 1600µm |
50µm - 2000µm |
Materials |
Polyimide / FR4 |
Polyimide / FR4 |
Thinnest Core |
50µm without adhesive |
25µm without adhesive |
Copper thickness |
9µm / 12µm / 18µm / 35µm |
9µm / 12µm / 18µm / 35µm |
Copper Plating Holes |
20µm (25µm) |
13µm / 20µm / 25µm |
Min. Line / Spacing |
125µm / 125µm |
65µm / 65µm ( LDI ) |
Soldermask Registration |
+/- 100µm (Photoimageable) |
+/- 50µm (Photoimageable) |
Min. Soldermask Dam |
100µm |
65µm |
Soldermask Color |
amber (green) |
amber (green) |
Cover Layer Polyimide |
laser cutting / punching / drilled |
laser cutting / punching / drilled |
Production Panel |
609,6 mm x 457,2 mm |
609,6 mm x 457,2 mm |
Min. Annular Ring |
150µm |
150µm |
smallest drill |
0,28 mm |
0,2 mm |
smalles Routing bit |
0,8 mm |
0,8 mm |
Surfaces |
OSP / Immersion Tin |
OSP/ Immersion Tin |
ID print |
White |
White |
Adhesive Tape |
Yes |
Yes |
SMT Service |
Yes |
Yes |
Stiffner material |
FR4,PI |
FR4,PI |
LEAD TIME FOR PRODUCTION ORDERS:
Sample Lead time |
Mass production lead time |
|
Single sided PCB |
1~3 |
4~7 |
Double sided PCB |
2~5 |
7~10 |
Multilayer PCB |
7~8 |
10~15 |
PCB and Assembly |
8~15 |
15~20 |
QUOTE REQUIREMENTS FOR PCB AND PCB ASSEMBLY:
- Gerber File and Bom List;
- Quantity;
- Technical requirements for quoting reference;
- Clear pictures of PCB or PCB Assembly sample if avaliable.
- Inspection method for PCB Assembly.
