Flex- Rigid PCB boardEfficient Quotation,Strict Production,Reliable Quality
Approval: UL,ISO9001
Fast Delivery
Your Best Choice for Flex PCB and Rigid-Flex PCB Manufacturing & Assembly

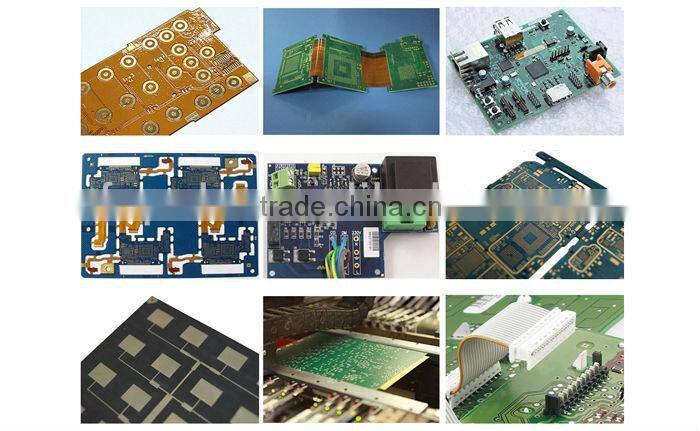

Manufacture Rigid-Flexi Printed Circuit Board
1. Material Combination Polyimide & FR4
2. PCB have solid Rigid Areas and Flex areas with reduced Layer Count
3. Improves design freedom
4. Used in Automotive, Camera systems back & Front, Rain Sensors, Sensors.
ADVANTAGES:
We provide small and medium-volume Rigid-Flex PCB production, can make up to 10 layers Rigid-Flex Circuit Boards. Rigid-Flex PCB line width / spacing can be achieved minimum 3mil, we also provide Rigid-Flex Circuit Boards with HDI, Impedance Control.
TECHNICAL DATA:
Capabilities | Standard Production | Advanced Production |
Layer Count / Technology | 2 layer - 10 Layer | 2 layer - 12 Layer |
PCB Thickness Range | 75µm - 1600µm | 50µm - 2000µm |
Materials | Polyimide / FR4 | Polyimide / FR4 |
Thinnest Core | 50µm without adhesive | 25µm without adhesive |
Copper thickness | 9µm / 12µm / 18µm / 35µm | 9µm / 12µm / 18µm / 35µm |
Copper Plating Holes | 20µm (25µm) | 13µm / 20µm / 25µm |
Min. Line / Spacing | 125µm / 125µm | 65µm / 65µm ( LDI ) |
Soldermask Registration | +/- 100µm (Photoimageable) | +/- 50µm (Photoimageable) |
Min. Soldermask Dam | 100µm | 65µm |
Soldermask Color | amber (green) | amber (green) |
Cover Layer Polyimide | laser cutting / punching / drilled | laser cutting / punching / drilled |
Production Panel | 609,6 mm x 457,2 mm | 609,6 mm x 457,2 mm |
Min. Annular Ring | 150µm | 150µm |
smallest drill | 0,28 mm | 0,2 mm |
smalles Routing bit | 0,8 mm | 0,8 mm |
Surfaces | OSP / Immersion Tin | OSP/ Immersion Tin |
ID print | White | White |
Adhesive Tape | Yes | Yes |
SMT Service | Yes | Yes |
Stiffner material | FR4,PI | FR4,PI |
LEAD TIME FOR PRODUCTION ORDERS:
| Sample Lead time | Mass production lead time |
Single sided PCB | 1~3 | 4~7 |
Double sided PCB | 2~5 | 7~10 |
Multilayer PCB | 7~8 | 10~15 |
PCB and Assembly | 8~15 | 15~20 |
QUOTE REQUIREMENTS FOR PCB AND PCB ASSEMBLY:
- Gerber File and Bom List;
- Quantity;
- Technical requirements for quoting reference;
- Clear pictures of PCB or PCB Assembly sample if avaliable.
- Inspection method for PCB Assembly.
