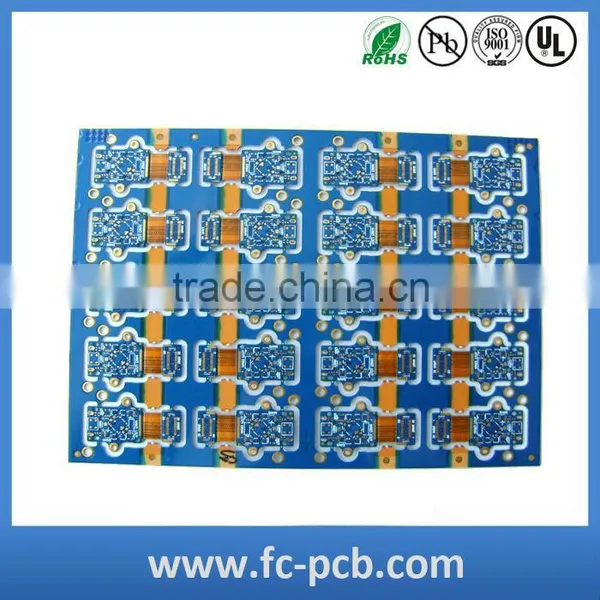

4 Layers Rigid Flex PCB

4 Layers Rigid Flex PCB thumbnail-1
4 Layers Rigid Flex PCB photo-1
US$ 0.1 - 10 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
FC
Number of Layers:
4-Layer
Contact Supplier Request Quote Chat Now
Shenzhen Fulltronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name FC
Number of Layers 4-Layer
Base Material Aluminum
Copper Thickness 1oz
Board Thickness 1.0mm
Min. Hole Size 0.1mm
Min. Line Width 0.1mm
Min. Line Spacing 0.1mm
Surface Finishing Lead free HAL

Specifications

4 layers rigid flex PCB
Efficient Quotation,Strict Production,Reliable Quality
Approval: UL,ISO9001
Fast material purchase.

Your Best Choice for Flex PCB and Rigid-Flex PCB Manufacturing & Assembly



1. Material Combination Polyimide & FR4

2. PCB have solid Rigid Areas and Flex areas with reduced Layer Count

3. Improves design freedom

4. Used in Automotive, Camera systems back & Front, Rain Sensors, Sensors.



ADVANTAGES:

We provide small and medium-volume Rigid-Flex PCB production, can make up to 10 layers Rigid-Flex Circuit Boards. Rigid-Flex PCB line width / spacing can be achieved minimum 3mil, we also provide Rigid-Flex Circuit Boards with HDI, Impedance Control.



TECHNICAL DATA:

Capabilities

Standard Production

Advanced Production

Layer Count / Technology

2 layer - 10 Layer

2 layer - 12 Layer

PCB Thickness Range

75µm - 1600µm

50µm - 2000µm

Materials

Polyimide / FR4

Polyimide / FR4

Thinnest Core

50µm without adhesive

25µm without adhesive

Copper thickness

9µm / 12µm / 18µm / 35µm

9µm / 12µm / 18µm / 35µm

Copper Plating Holes

20µm (25µm)

13µm / 20µm / 25µm

Min. Line / Spacing

125µm / 125µm

65µm / 65µm ( LDI )

Soldermask Registration

+/- 100µm (Photoimageable)

+/- 50µm (Photoimageable)

Min. Soldermask Dam

100µm

65µm

Soldermask Color

amber (green)

amber (green)

Cover Layer Polyimide

laser cutting / punching / drilled

laser cutting / punching / drilled

Production Panel

609,6 mm x 457,2 mm
250 mm x (250 - 410 mm)

609,6 mm x 457,2 mm
250 mm x (250 - 410 mm)

Min. Annular Ring

150µm

150µm

smallest drill

0,28 mm

0,2 mm

smalles Routing bit

0,8 mm

0,8 mm

Surfaces

OSP / Immersion Tin
Immersion Ni/Au
Plated Ni/Au

OSP/ Immersion Tin
Immersion Ni/Au
Plated Ni/Au

ID print

White

White

Adhesive Tape

Yes

Yes

SMT Service

Yes

Yes

Stiffner material

FR4,PI

FR4,PI



LEAD TIME FOR PRODUCTION ORDERS:



Sample Lead time

Mass production lead time

Single sided PCB

1~3

4~7

Double sided PCB

2~5

7~10

Multilayer PCB

7~8

10~15

PCB and Assembly

8~15

15~20



4 layers rigid flex PCB

QUOTE REQUIREMENTS FOR PCB AND PCB ASSEMBLY:
- Gerber File and Bom List;
- Quantity;
- Technical requirements for quoting reference;
- Clear pictures of PCB or PCB Assembly sample if avaliable.
- Inspection method for PCB Assembly.
