Fr4 Copper Clad Laminate PCB

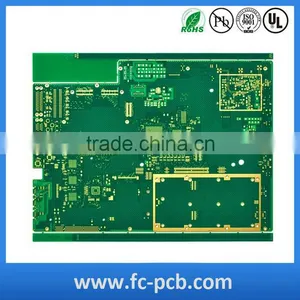

Fr4 Copper Clad Laminate PCB thumbnail-1
Fr4 Copper Clad Laminate PCB photo-1
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
FC-PCB
Model Number:
FC-PCB
Contact Supplier Request Quote Chat Now
Shenzhen Fulltronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name FC-PCB
Model Number FC-PCB
Number of Layers 8-Layer
Base Material fr-4
Copper Thickness 1oz
Board Thickness 1.2mm
Min. Hole Size 0.15mm
Min. Line Width 0.15mm
Min. Line Spacing 0.1mm
Surface Finishing copper plating/tin plating

Specifications

Efficient Quotation,Strict Production,Reliable Quality
Approval: UL,ISO9001
Fast Material Purchase & Fast Delivery

Your Best Choice for Printed Circuit Board Manufacturing & Assembly



PCB material we often used:



Kingboard,Shengyi,Guoji,Nanya



.tw



OUR ADVANTAGES:

1.We have 12 years experience in PCB filed to service you need. We can offer 1 to 20     Layers PCB fabrication, especially Multilayer pcb, Teflon PCB,flexible PCB and rigid flex PCB are what we mainly deal with.

2.PCB assembly Prototype and mass production
3. 100% E-TEST and X-ray before shipment

4. Competitive price and high quality PCB board and PCB assembly

5. BGA planting and SMD/DIP assembly,

6. Components sourcing all from manufacturer like TI, Atmel, Philip, Analog, ST, Microchip, Murata, Epcos,Nichicon, Vishay, Yagoe, Bonus . 100% qualified and trustful ,all original and new according to Customers' BOM.

7. Welcome Customers to visit us and coach our work

fr4 copper clad laminate PCB Our PCBs are used for wide range of electronic products,

Like Medical devices, CCTV, Power supply, GPS, UPS, Set-top Box,Telecomunication ,LED, etc.



PCB Manufacture Capability

PCB Item

Manufacture Capability

Material

FR-4 / Hi Tg FR-4 / Lead free Materials (RoHS Compliant) /CEM-3, Aluminium, Metal based

Layer No.

1-20

Finished Board thickness

0.2 mm-3.8mm’(8 mil-150 mil)



Board Thickness Tolerance

±8%

Cooper thickness

0.5 OZ-11OZ (18 um-385 um)

Copper Plating Hole

18-40 um

Impedance Control

±10%

Warp&Twist

0.70%

Peelable

0.012"(0.3mm)-0.02’(0.5mm)

Images

Min Trace Width (a)

0.1mm (4 mil)



Min Space Width (b)

0.1mm (4 mil)

Min Annular Ring

0.1mm (4 mil)



SMD Pitch (a)

0.2 mm(8 mil)



BGA Pitch (b)

0.2 mm (8 mil)

Solder Mask

Min Solder Mask Dam (a)

0.0635 mm (2.5mil)



Soldermask Clearance (b)

0.1mm (4 mil)

Min SMT Pad spacing (c)

0.1mm (4 mil)

Solder Mask Thickness

0.0007"(0.018mm)

Holes

Min Hole size (CNC)

0.2 mm (8 mil)

Min Punch Hole Size

0.9 mm (35 mil)

Hole Size Tol (+/-)

PTH:±0.075mm;NPTH: ±0.05mm

Hole Position Tol

±0.075mm

Plating

HASL

2.5um

Lead free HASL

2.5um

Immersion Gold

Nickel  3-7um  Au:1-5u''

OSP

0.2-0.5um

Outline

Panel Outline Tol (+/-)

CNC: ±0.125mm, Punching: ±0.15mm

Beveling

30°45°

Gold Finger angle

15° 30° 45° 60°

Certificate

ROHS,  ISO9001:2008,  SGS,  UL certificate



LEAD TIME FOR PRODUCTION ORDERS:



Sample Lead time

Mass production lead time

Single sided PCB

1~3

4~7

Double sided PCB

2~5

7~10

Multilayer PCB

7~8

10~15

PCB and Assembly

8~15

15~20



 fr4 copper clad laminate PCBfr4 copper clad laminate PCBfr4 copper clad laminate PCB

QUOTE REQUIREMENTS FOR PCB AND PCB ASSEMBLY:
- Gerber File and Bom List;
- Quantity;
- Technical requirements for quoting reference;
- Clear pictures of PCB or PCB Assembly sample if avaliable.
- Inspection method for PCB Assembly.



We purchase material from Original company.



We make products by strict engineer processes .



We send products by vacuum package and carton box .

We always try our best! So we do,we conquer,and we get there!

Try us!
