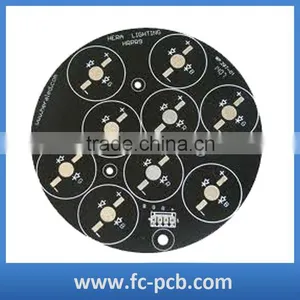

LED aluminum star pcb
FC Electronics provides PCB prototype fabrication and PCB production capabilites with no limits!We produce a wide range of aluminum pcb which used in LED technologies

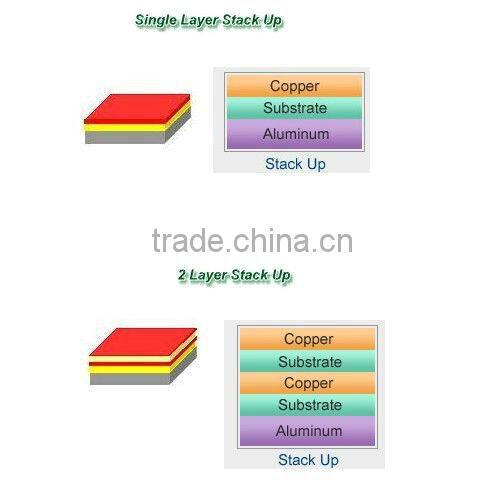

LAYER STACK UP:
1. Circuit layer: the equivalent of an ordinary PCB,copper thickness from 1oz to 4oz.
2. Insulation layer: Insulation is a layer of thermal insulating material with low thermal resistance.Thickness: 0.003 "to 0.006" inch is the aluminum pcb core technology.
3. Based Layer: a metal substrate,usually aluminum or copper may be chosen.
TECHNICAL DATA:
|
Capability |
Product Type |
Al Clad PCB 1 layer~2 layer |
Maximum Panel size |
20"*24" (1170mm*600mm) |
Copper thickness |
0.5oz, 1oz, 2oz, 3oz and 4 oz |
Dielectric Thickness |
0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm |
Substrate Core Thickness |
0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm,2.0mm, 3.0mm and 3.2mm |
Finished Board Thickness |
0.4mm To 4.0mm |
Thickness Tolerance |
+/-10% |
Aluminum Machining |
Drilling,Tapping,Milling,Routing, Die-Punching,break-off tab available |
Min. Finish hole size |
0.25mm |
ing voltage |
2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric) |
Min.Track Width |
0.2mm (8mils) |
Min.Track gap |
0.2mm (8mils) |
Min. SMD pad pitch |
0.2mm (8mils) |
Surface Finishing |
HASL, HASL Leadfree, Immersion gold, Flash gold, OSP |
Soldermask color |
White, Black, others Available |
Legend color |
Black, White, others Available |
Etest |
YES |
Rohs |
YES |
Reference Standard |
IPC-A-600G Class 2 |
Special holes |
Spot facing, Cup holes |
Data Input |
Gerbers, AutoCad, Cam350, PROTEL 99SE,PROTEL DXP, |
DETAILED PRODUCT DESCRIPTION:
Advantage: High Heat dissipation, Electromagnetic Shielding, High Mechanical Strength, Excellent processing performance.
Application: Products are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect.
LEAD TIME FOR PRODUCTION ORDERS:
|
Sample Lead time |
Mass production lead time |
Single sided PCB |
1~3 |
4~7 |
Double sided PCB |
2~5 |
7~10 |
Multilayer PCB |
7~8 |
10~15 |
PCB and Assembly |
8~15 |
15~20 |
QUOTE REQUIREMENTS FOR PCB AND PCB ASSEMBLY:
- Gerber File and Bom List;
- Quantity;
- Technical requirements for quoting reference;
- Clear pictures of PCB or PCB Assembly sample if avaliable.
- Inspection method for PCB Assembly.
