Product Details
>> Summary :
Improving energy efficiency and developing renewable energy have become the two important aspects of energy sustainable development. Wind energy, as one of the “Green Energy” and clean energy, develop rapidly all over the world.

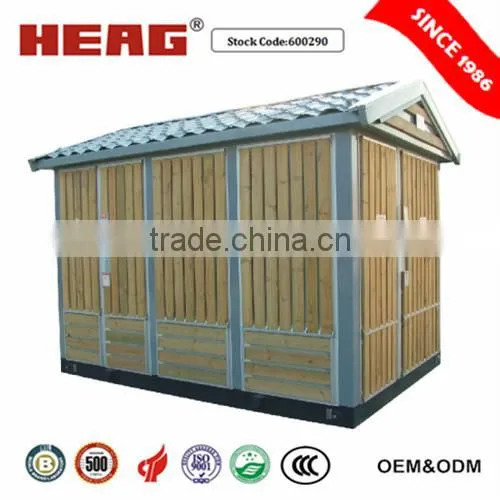

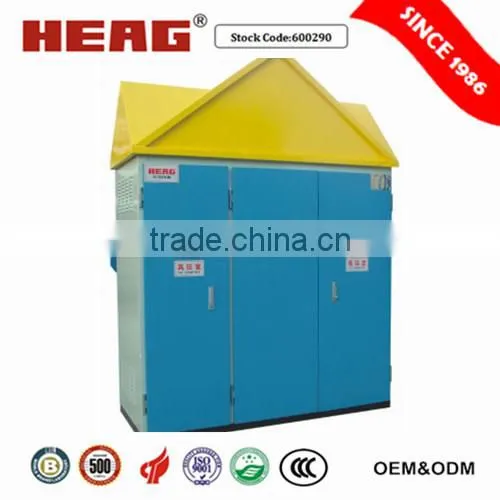

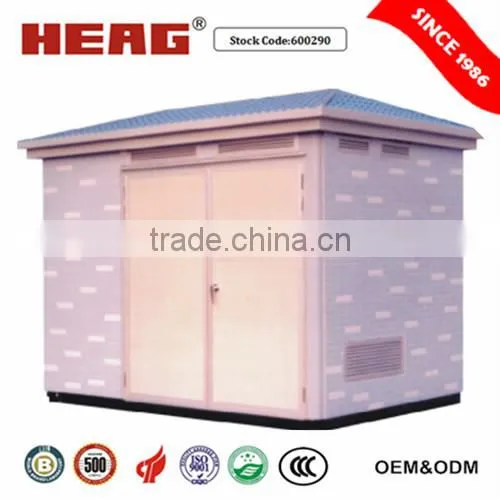

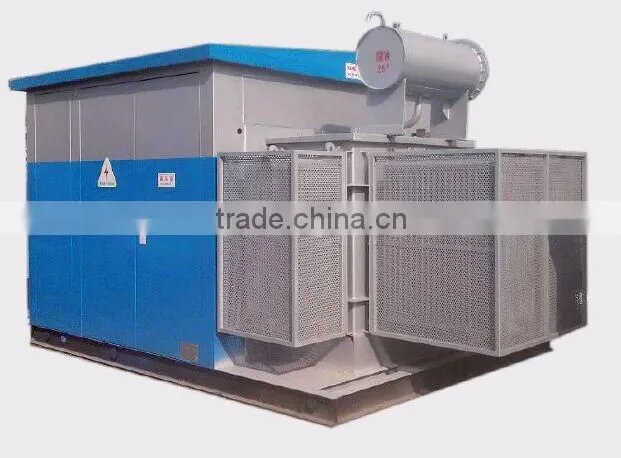

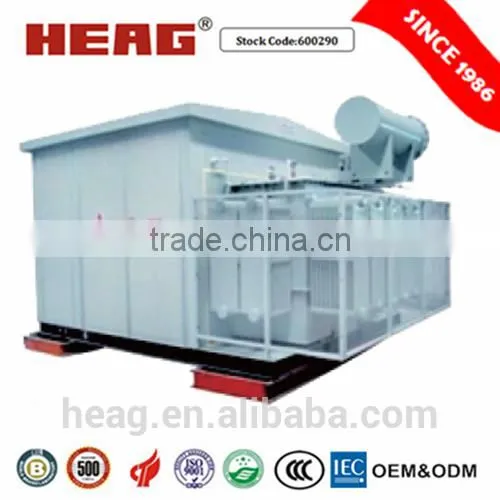

YBFD -40.5/0.69-3300 Combined Substation for Wind Power Generator, is particularly manufactured for the requirements of wind farm. It applies to 40.4kv, 50HZ, three phases AC system. It applies to ring network power supply as well as Radial terminal power supply. Its appearance is a patented product.
>> Technical Specification :
| No | Parameters | unit |
HV Unit | Transformer | LV unit |
| 1 | Rated Voltage | KV | 40.5 | 40.5 | 0.69 |
| 2 | Rated Capacity | KVA | 800~3150 | ||
| 3 | Rated Current | A | 630 | 630~4000 | |
| 4 | Rated Breaking Current | KA | 15~63 | ||
| 5 | Rated Short-time Withstand Current | KA/s | 20/4 | Busbar:50/1 | |
| 6 | Rated Peak Withstand Voltage | KV | 50 | ||
| 7 | Power Frequency Withstand Voltage | KV/min | 95/110 |
HV:85/1 LV:5/1 |
2.5/1 |
| 8 | Rated Making Current | KA | 50 | ||
| 9 | Thundering Impulse Withstand voltage | KV | 185/125 | 200 | 8 |
| 10 | Protection level of Box | IP44D | |||
| 11 | Earthing circuit short-time withstand current | KA/s | 20/4 | ||
| 12 | Internal arc test: | IAC-B |
|||
| 13 | Box level | IOK |
