DDSY39 Electric Meter Prepaid Energy Power Meter

    Main Products

Huayi Electric Co., Ltd(HEAG) is one of leading manufacturers in China mainly for power distribution and transmission line, at present we mainly produce the following 7 categaries:
1. Wind Energy Power Systems;
2. Outdoor Power Transmission and Distribution Systems till 252kV;
3. Indoor Metal-clad switchgear and control systems;
4. Medium voltage equipments and Accessories;
5. Intrument energy meters & Protection Relays;
6. Instrument Current Transformers & Potential Transformers;
7. Mining Electrical equipments and LV electrical Apparatus.

    Product Details

 >> Summary :

DDSY39 (LED) single-phase prepayment static energy met er is which adopts based on special large-scale integrated circuit and SMT technology, adopting industrial elements and components with long lifetime introduced form abroad. It preserves data under power-off situation. This product conforms to IEC62055-21-2005 & GB/T18460: Electricity metering, prepayment systems. and IEC62053 & GB/T18460.3- 2001: class 1 and class 2 static AC active watt-hour meter. It mainly applies to the occasions like-as advancing power purchasing to carry out power prepayment and max. load control. This product has characteristics like-of long service duration, high accuracy, good over-load capacity and small volume.

 >> Technical Specification :

1. Electrical performance:
Class of accuracy: 1.0, 2.0;
Conformed standards: IEC62053 & IEC62055; GB/T17215-2002; GB/T18460.3-2001;
Normal working voltage: 0.9Un~1.1Un;
Limit working voltage: 0.8Un~1.15Un;
Insulating voltage: ≥2000VAC;
Power consumption: ≤2W&10VA;
Power of voltage circuit: ≤1.5W(8VA);
Power of current circuit: ≤3VA;
Start-up: as reference voltage, reference frequency and power factor are 1, load current is 0.4 %Ib and 0.5%Ib, the meter should be metering in continuity.
Shunt running: when voltage circuit is enforced with 115% of reference voltage, without current, the meter light loss indication, meter output no impulse.
Life: 10 years.
2. Ambient condition
Normal working temperature: -30℃ ~+55℃;
Limit working temperature: -40℃ ~+70℃;
Stockpile and transportation temperature: -45℃ ~+70℃;
Relative humidity: annual average ≤80%.

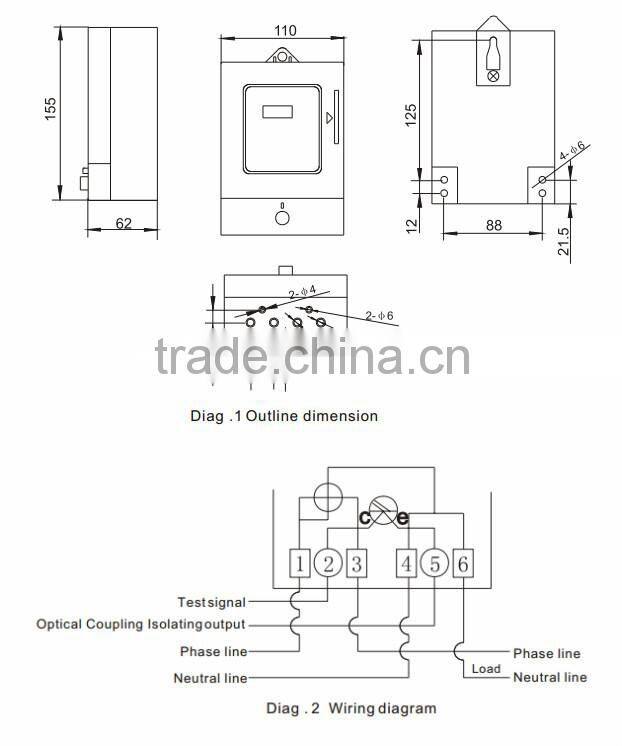

 >> Structure :
