Product Details
>> Summary :
FZW38-12 outdoor AC high voltage vacuum load break switch is used to open and close circuit in rated voltage 12kV, AC 50/60Hz system. It accords with the standards of IEC62271-103 & GB/T3804: 3.6kV~40.5kV AC high voltage load break switch and IEC60694 & GB/T11022: high voltage switch apparatus and control device. The anti-pollution type is especially used in serious pollution area.

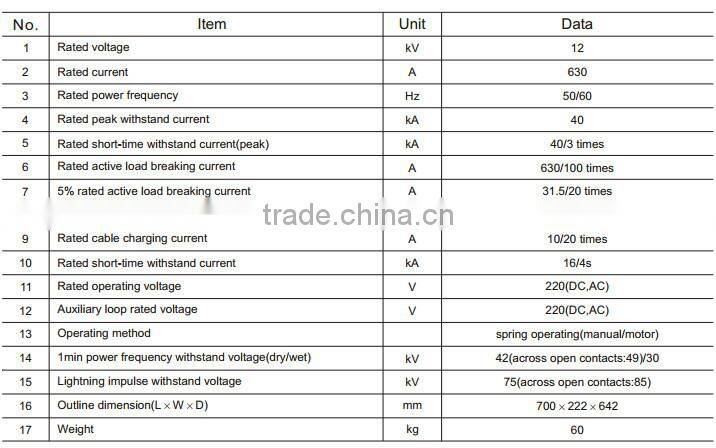

>> Technical Specification :

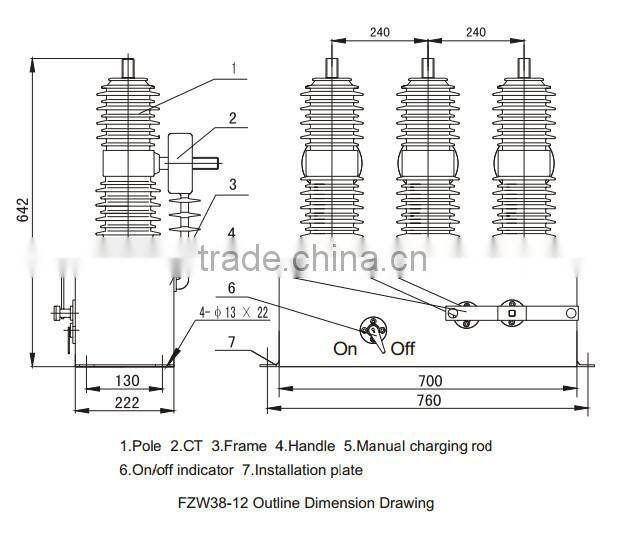

>> Structure :
Related Items
VHY1-12/24 Circuit Breaker JN15-12/24 Earthing Switch FZRN21-12D Combination Apparatus
Why Choose Us
>> Certifications :
>> Package :
Company View
Contact Us
We will be always at your service!
>> FAQ :
1: What certifications do you get?
A: We have ISO, CE, KEMA, SGS, etc.
2: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.
3: When to get the price?
A: We usually quote within 24 hours after getting your inquiry.
if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.
4: Is sample available and free?
A: Sample is available, but sample should be paid in advance. The cost of sample will be refund after further order.
5. How to pay?
A: T/T and L/C are acceptable, and T/T will be more appreciated.
30% deposit before producing, 70% balance before loading by T/T.
6. What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.
7. What about the Package?
A: Standard export package (Wooden carton with inner vacuum package) for long-distant ocean shipment and tough handling is provided. and we can make special designed for you if need.
8.How to contact?
A: Send your inquiry details in the below, Click “send” now!
↓
