FK(R)N12-12D Fuse Switch Disconnector Pole Mounted Fuse Switch Disconnector

    Main Products

Huayi Electric Co., Ltd(HEAG) is one of leading manufacturers in China mainly for power distribution and transmission line, at present we mainly produce the following 7 categories:
1. Wind Energy Power Systems;
2. Outdoor Power Transmission and Distribution Systems till 252kV;
3. Indoor Metal-clad switchgear and control systems;
4. Medium voltage equipment and Accessories;
5. Intrument energy meters & Protection Relays;
6. Instrument Current Transformers & Potential Transformers;
7. Mining Electrical equipment and LV electrical Apparatus.

    Product Details

 >> Summary :

FKN12-12D series air-blast load break switch and FKRN12-12D series air-blast load break switch-fuse combination apparat us are ne w series switchgear applies to three- phase electric distribution system of rated 12kV, acting as protecting and control apparatus for transformers, cable and over head wiring. These series are especially applicable in rural, urban terminal substation and prefabricated substations, as well as ring network power supply. FKN12-12D can break and make load current and over-current. FKRN12-12D can break and make over-current, load current and short-circuit current (limited current fuse).
This product is featured with impact structure, aesthetic appearance, reliable interlock and high insulating level. In the spring storage operation mechanism, ON/OFF speed is free from the influence of the manpower. For the arc-extinguish, electric arc- extinguish inside the insulating cover , the free gas occurs at sparking do not cause descend of insulating level between phases and phase to earth. The insulation cover clapboard separates electrified part thus boost protection grade of ring main unit. The copper-tungsten contact and main contact brings along reliable conductivity and long life. This product achieves sound fame due to easy maintenance and operation as well as reliable performance. It is in compliance with per IEC62271-105.

 >> Technical Specification :

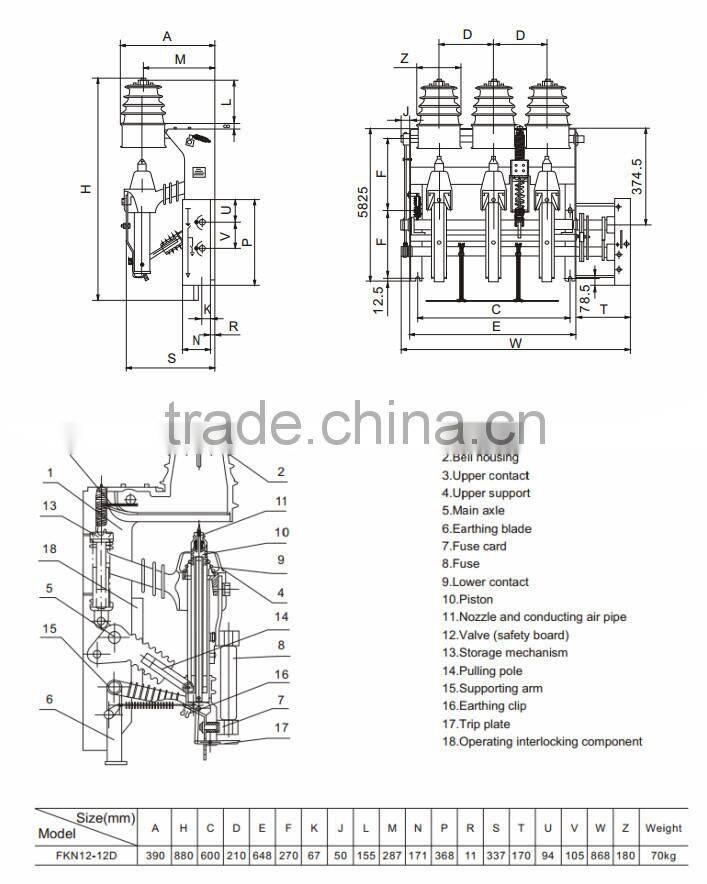

 >> Structure :

    Related Items

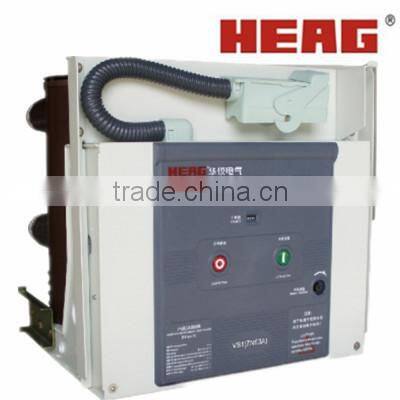

GW4-72.5/126/145 Circuit Breaker            JN15-12/24 Earthing Switch             VS1-12 Circuit Breaker

    Why Choose Us

 >> Certifications :

 >> Package :

    Company View

    Contact Us

 We will be always at your service!

 >> FAQ :

1: What certifications do you get?

 A: We have ISO, CE, KEMA, SGS, etc.

2: Are OEM&ODM available?

A: Yes, we accept OEM and ODM.

3: When to get the price?

A: We usually quote within 24 hours after getting your inquiry.

if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.

4: Is sample available and free?

A: Sample is available, but sample should be paid in advance. The cost of sample will be refund after further order.

5. How to pay?

A: T/T and L/C are acceptable, and T/T will be more appreciated.

30% deposit before producing, 70% balance before loading by T/T.

6. What is the delivery time?

A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.

7. What about the Package?

A: Standard export package (Wooden carton with inner vacuum package) for long-distant ocean shipment and tough handling is provided. and we can make special designed for you if need.

8.How to contact?

A: Send your inquiry details in the below, Click “send” now!

                                                                         ↓
