Product Details
>> Summary :

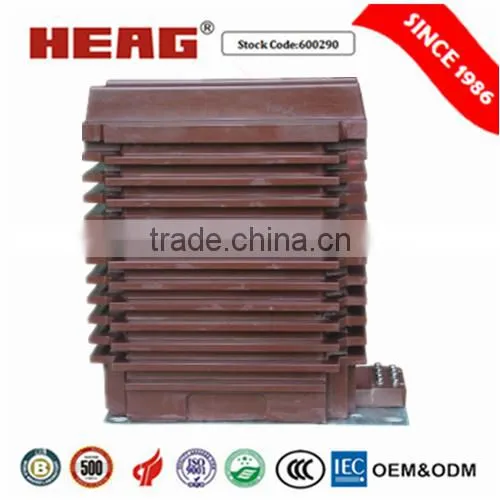

The current instrument transformers LZZBJ9-36 are fully enclosed and cast in epoxy resin. The transformers are designed for electric power systems of rated frequency 50Hz/60Hz and rated voltage of 36Kv. They are used for indoor mounting. The performancs of the products meet standards IEC60044-1 and GB1208-2006. The products are used in metering electric energy, voltage controlling and relay protection applications.
>> Technical Specification :
The LZZBJ9-36 is designed against pollution and condensation. There are two optional versions with different dimensions. The product is substitution for LCZ-35.
1. Rated insulation level: 40.5/95/185KV;
2. Rated secondary winding current: 5A or 1A;
3. The following table shows some other important technical data.

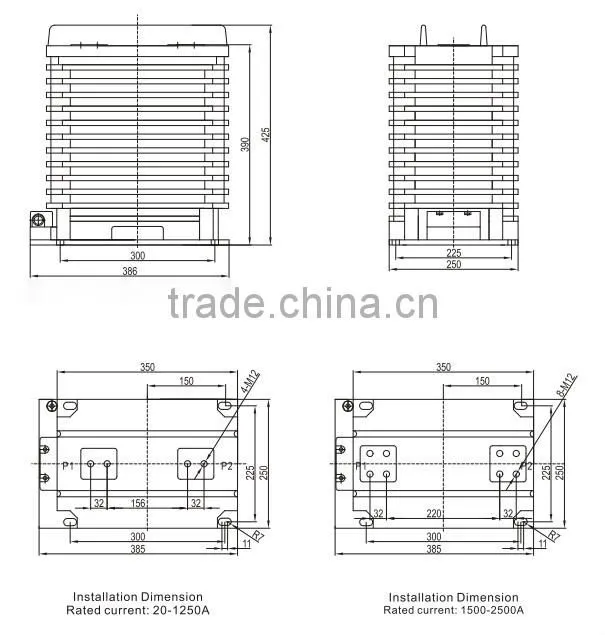

>> Structure :
