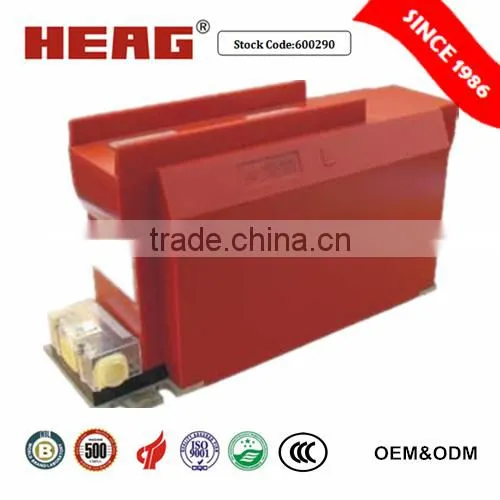

LZZBJ12 11kv Indoor Current Transformer Electronic Transformer

LZZBJ12 11kv Indoor Current Transformer Electronic Transformer thumbnail-1
LZZBJ12 11kv Indoor Current Transformer Electronic Transformer photo-1
Negotiable MOQ: 100 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HEAG current transformer
Model Number:
LZZBJ12-12
Contact Supplier Request Quote Chat Now
Huayi Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HEAG current transformer
Model Number LZZBJ12-12
Usage Current
Phase Three
Coil Structure Toroidal
Coil Number Autotransformer



    Main Products





Huayi Electric Co., Ltd(HEAG) is one of leading manufacturers in China mainly for power distribution and transmission line, at present we mainly produce the following 7 categories:
1. Wind Energy Power Systems;
2. Outdoor Power Transmission and Distribution Systems till 252kV;
3. Indoor Metal-clad switchgear and control systems;
4. Medium voltage equipment and Accessories;
5. Intrument energy meters & Protection Relays;
6. Instrument Current Transformers & Potential Transformers;
7. Mining Electrical equipment and LV electrical Apparatus.



    Product Details



 >> Summary :



Type LZZBJ12-12 current transformer is used for metering and protective relaying purposes for installation in indoor up to 12kV rated voltage frequency 50/60Hz, the current transformer is used for metering and protective relaying action in indoor and especially is suited for using in the narrow case(fixed) ring-network switchgear.



 >> Technical Specification :



1. Rated insulation level: 12/42/75kV;
2. Frequency(Hz): 50/60Hz;
3. Rated primary current: 5-3150;
4. Rated secondary current: 5A;
5. Accuracy classes: 0.5/5P;
6. Metering pole safeguard system: FS<10;
7. 5P rated accuracy limited factor: 5P10;
8. The measurement of partial dis charge lev el is in accordance with IEC60044-1 and IEC 185 Apparent partial discharge level not more than 20PC;
9. Power factor: 0.8 (hysteresis);
10. Rated primary current accuracy classes, rated output and short-time thermal Current see table.

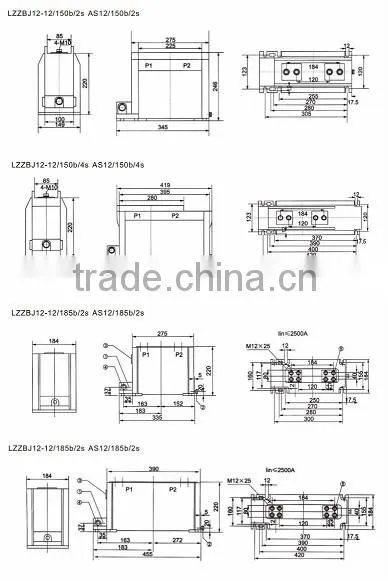

 >> Structure :



LZZBJ12 11kv indoor Current Transformer electronic transformer
