Product Details
>> Summary :

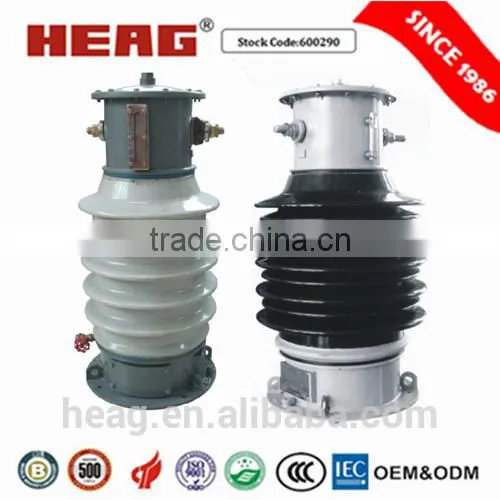

The Current Transformer of type LCWD-36 is oil insulated and outdoor product. It is used for metering energy, current and relay protection in electric system uo to rated frequency 50Hz and 60Hz and rated voltage 36kv.
It has compact structure, small volumen lightweight and its body treated by drying vacuum. It is installed in the bushing filled with transofrmer oil. The bushing's upper hafl-part is the primary winding and its down half-part is the secondary winding. The primary winding's end is led from the two sides of the cabinet's wall. it's starting terminal sign P1 is insulated with the wall by some littleporcelain pipes and terminal sighed P2 is directly connected with the wall. The front of the oil storage cabinet has some oil-dials showing different temperature and graduation.
>> Technical Specification :
1. Rated insulation level: 40.5/95/185kv,
2. Rated primary current: 5A

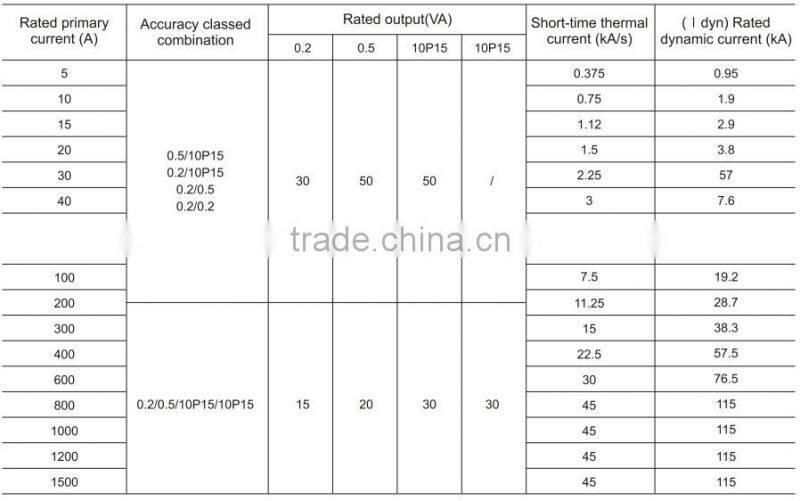

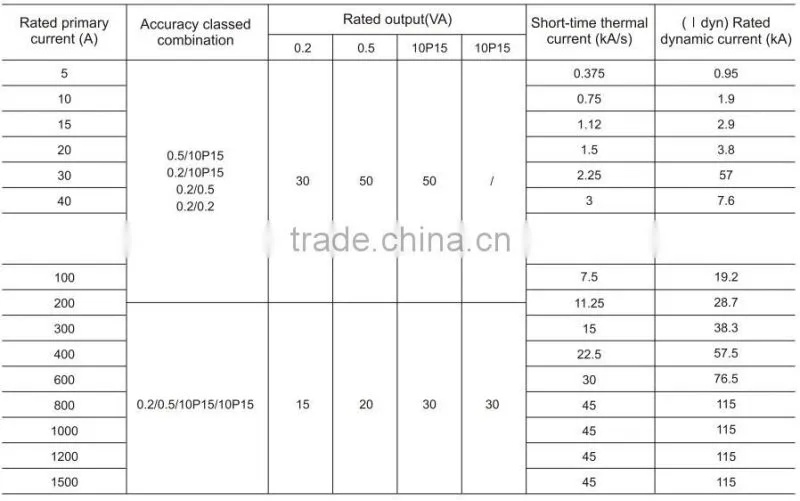

3. Rated primary current, accuracy classes combination, rated output, dynamic and thermal current see form;
4. Creepage distance of outside insulation: general type ≥ 735; W2 type ≥1100.
Note: If users have other special requirements, we may do some relevant adjustment to partial data.

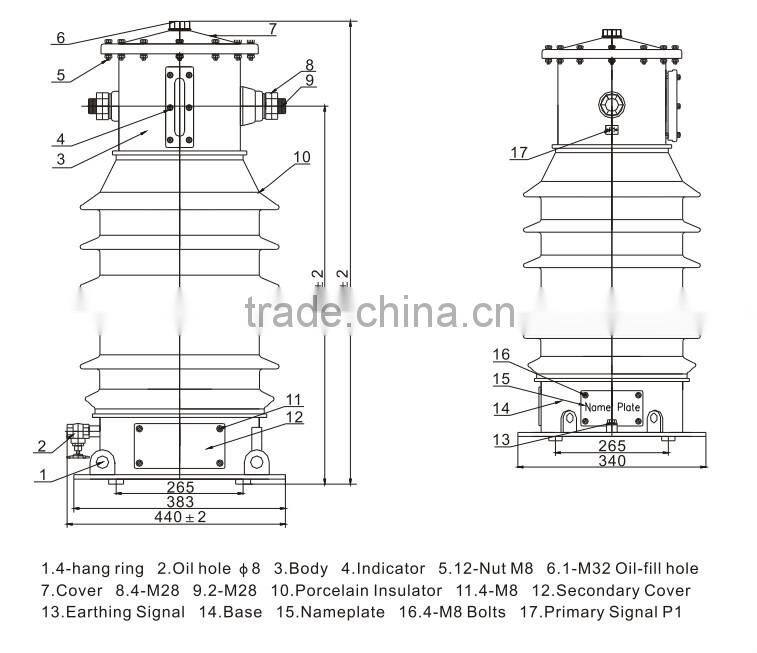

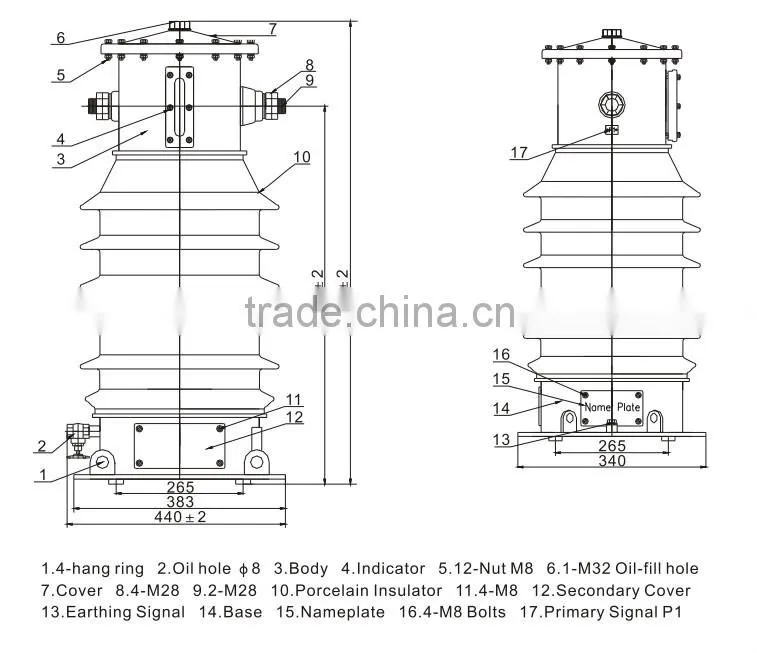

>> Structure :
