Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Cable Manufacturer av Cable Coaxial Cable Electric Electric Wire Cable Network Cable Cable tv Cable Assembly

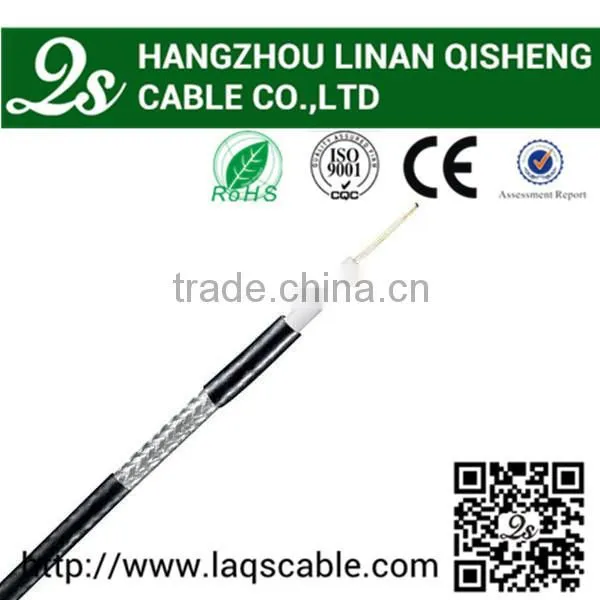

Cable Manufacturer av Cable Coaxial Cable Electric Electric Wire Cable Network Cable Cable tv Cable Assembly

US$ 0.05 - 0.5 MOQ: 15000 Meters

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

RG6

Contact Supplier Request Quote Chat Now

Hangzhou Linan Qisheng Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/ Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name QS

Model Number RG6

Type Bare

Application Other, Overhead, CATV,CCTV,Communication

Conductor Material Other, Copper, BC/CCS/TC/CCA

Conductor Type Solid

Insulation Material Other, PVC, Foam PE/Solid PE

Specifications

Rg59 Coaxial Cable with power cable
1.CE ISO RoHS SGS
2.Quick Delivery
3.Stable High Quality
4.Competitive Price

10years experience of serious of cable manufacturing. High quality, competitive price, welcome for your inquiry.

FOB Price:	US $0.05 - 0.5 / Meter
Min.Order Quantity:	15 Kilometer/Kilometers
DELIVRY TIME:	15-20 days after receiving deposit
Port:	Ningbo/Shanghai
Payment Terms:	L/C,T/T and so on

Quick Details

1) Inner conductor: CCA/CCS/CU

2) Dielectric: SPE/FPE

3) AL Foil: Bonded, non-bonded, single, double

4) Braiding wire material: Cu,Al-Mg, TC

5) Braiding wire diameter: 0.12mm, 0.15mm, 0.16mm

6) Braiding net: 48,64,72,80,96,128 and more

7) Coverage: 40%,50%, 60%, 80% and more

8) PVC Degree: 65,68,70,75

9) Color: Black,white or grey

10) OEM and customers designation are welcome.

PACKING:

1)100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll

(Other lengths available according to client's request)

2) Inner packing: Wooden reel, plastic reel, and paper reel available.

3) Outer packing: Carton box, pull out box, pallet available.

(Other packing available according to client's request. )

COAXIAL CABLE

1) RG series Coaxial Cable: Rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316, etc.

2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.

3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8

4) TRUNK Cable: 412, 500, 540

5) LMR SERIES: LMR200, LMR400, LMR600

6) Combined Cable:RG59+2C

OTHER INFORMATION

RG59 COAXIAL CABLE WITH POWER CABLE DATA SHEET

1)Construction

Inner Conductor:	0.81±0.01mm CCS
Insulation:	3.65±0.05mm Foam PE
Shield:	Al Foil/Bonded Al Foil
Braid Coverage:	40%-95%Al-Mg/CCA
Jacket:	6.00±0.05mm PVC
Jelly/APD	Per Customers Special Requirement
Power Wires	270.3mm CCA/BC
Power Cable Jacket	4.95±0.05mm PVC

2)Characteristics

Sparker Test:	4000VAC
Impedance:	75±3 Ohm
Capacitance:	50±3pF/m
Velocity of Propagation:	85%
Return Loss:	20dB min (5-2300Mhz)

3)Attenuation:

Attenuation	[@68°F.(20°C.)]
Frequency(Mhz)	Maximum (dB/100 ft.)	Maximum (dB/100m)
5	0.58	1.9
50	1.5	4.9
100	2.0	6.5
200	2.8	9.2
400	4.1	13.6
700	5.6	18.4
900	6.2	20.3
1000	6.5	21.4
1450	8.0	26.2
1800	8.5	27.9
2100	9.5	31.1
2250	10.0	34.0
3000	11.4	37.5
