lina manufacturer China making cable jacket PVC granules applied in cable
- 300 Metric Ton / Metric Tons per Month
- Ningbo /Shanghai
- T/T
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Qisheng/OEM | Model Number: | QSPVC01 |
Insulation Material: | PVC | Type: | Low Voltage | Application: | Other, Industrial, cable jacket |
Conductor Material: | Copper | Jacket: | PVC |
Product Description
Specifications
1.CE ISO RoHS ETL SGS2.Quick Delivery
3.Stable High Quality
4.Competitive Prices
5.10years experience
Eco-friendly plastic raw material,Industrial application
Specification:

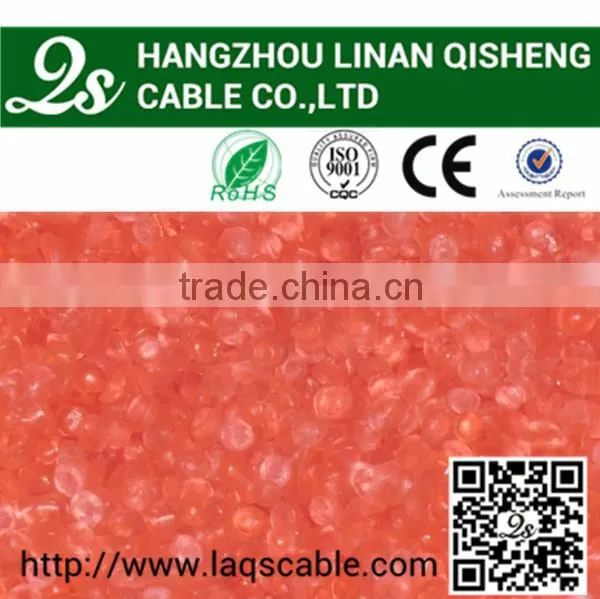

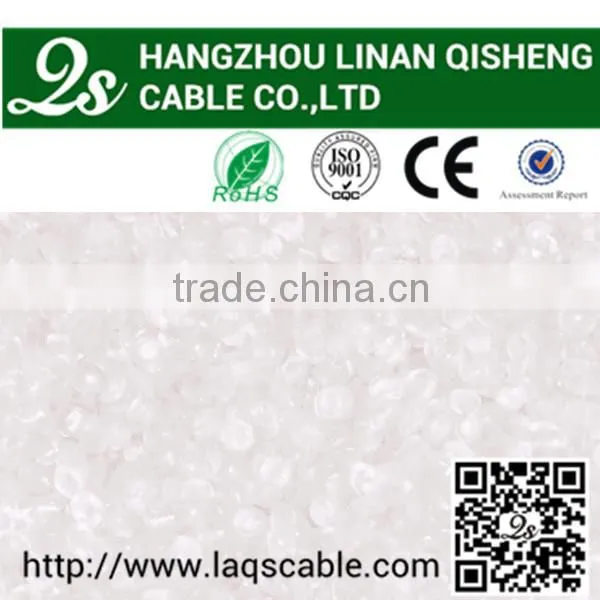

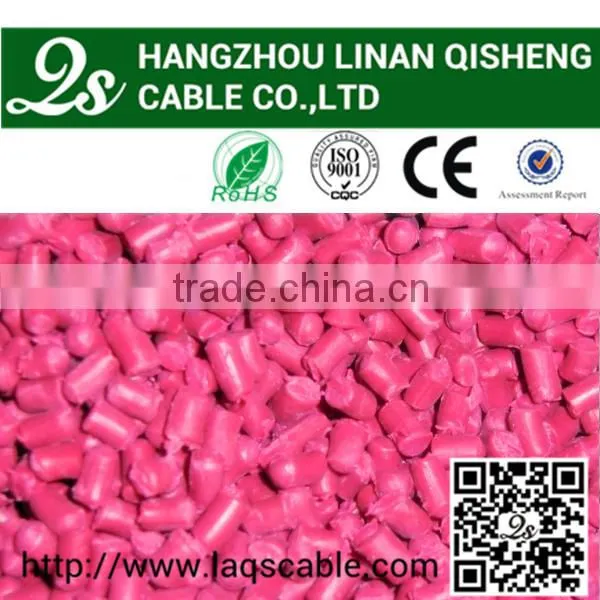

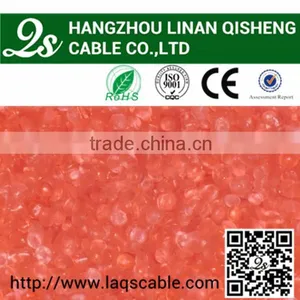

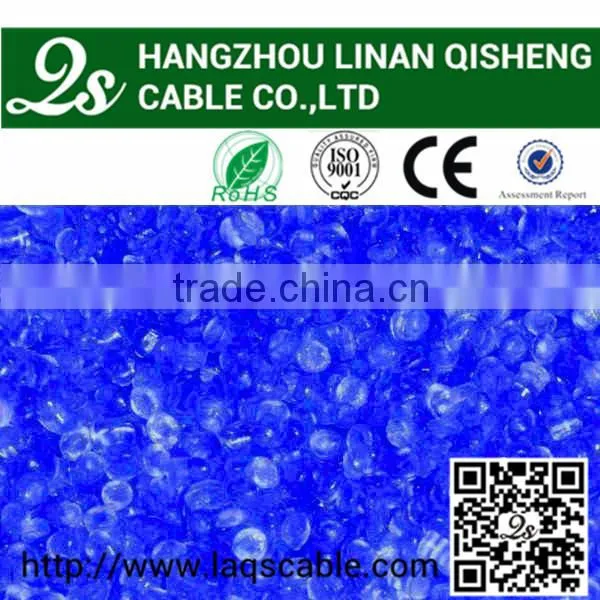

PVC granules for cable:
1. 70 degree C
2. High flame retardant CMR
3. PVC jacket compound
4. low smoke and low halogen
PVC granules for cable :
1. Applications and cable specifications of pvc granules for cable:
High flame retardant PVC jacket compound for cables and wires with temperature rating of conductor at 70 degree C. And pass the CMR grade burning test. Meeting low smoke and low halogen requirements.
2. Description of pvc granules for cable:
Flame retardant PVC jacket compound for wires and cables, based on PVC resin, is made into granula by mixing, plastification and granulation with adding plasticizer, stabilizing agent, flame retardant and etc. The products meet various special requirements, such as different hardness, UV stable, environment friend (RoHs, REACH, PAHs, chlorinated alkanes free, phthalate free, and etc.), sub-shine and fog surface, low temperature resistant, PS/ABS transfer proof, rodent-repellent, termite-repellent, and etc.
3. Processing of pvc granules for cable:
It is recommended that compound should be processed with common extruder having a minimum L/D ratio of 20.
The following temperature(°C) profile of extruder is recommended:
Zone | Zone 1 | Zone 2 | Zone 3 | Zone 4 | Head | Die |
Temperature degree C | 140 | 160 | 170 | 175 | 180 | 175 |
4. Storage and transport of pvc granules for cable:
Packing: 25kg/bag, PE membrane inside bag and craft outside bag
Avoiding in direct sunlight and weathering
Storage place should be in clean, cool, dry and ventilated conditions
5. Properties of pvc granules for cable
Item | Unit | Standard Value | |||
7033N | 7331N | 2833N-40 | 2833N-48 | ||
Tensile Strength | ≥MPa | 15 | 15 | 15 | 14 |
Elongation at Break | ≥ % | 180 | 180 | 180 | 180 |
Impact Brittleness Temperature | degree C | -25 | -15 | -15 | -8 |
Volume Resistivity, at 20 degree C | ≥Ω*m | 1.0*108 | 1.0*108 | 1.0*108 | 1.0*108 |
Dielectric Strength | ≥MV/m | 18 | 18 | 18 | 18 |
Hot Deformation | ≤ % | 50 | 50 | 50 | 50 |
Thermal Stability Time at 200 degree C | ≥ min | 50 | 60 | 80 | 80 |
Oxygen Index | ≥ % | 32 | 36 | 40 | 48 |
Thermal Aging | |||||
Aging Temperature | degree C | 100±2 | 100±2 | 100±2 | 100±2 |
Aging Time | h | 168 | 168 | 240 | 240 |
Tensile Strength after aging | ≥MPa | 15 | 15 | 15 | 14 |
Variation on Tensile Strength | % | ±20 | ±20 | ±20 | ±20 |
Elongation at Break after aging | ≥ % | 180 | 180 | 180 | 180 |
Variation on Elongation at Break | % | ±20 | ±20 | ±20 | ±20 |
Loss of Mass | ≤ g/m2 | 23 | 23 |
our company was founded in 2004,is located in linglong economic development zone,lin'an city ,Zhejiang province ,total area of factory is over 3,000 square meters ,we have many years experience in PVC granule producing and the PVC granules are often used in our own cable jacket,we can supply the PVC granules with good price and high quality ,i look forward to our cooperation .
Entrance
application
If u are interested in our products please feel free to contact me ,these are my contacts following :
skype:xiaqingen
mobile/whatsapp:008618667002950
QQ:505688385
telephone:0086057161109618
My work time :7am-10pm( beijing time ).
