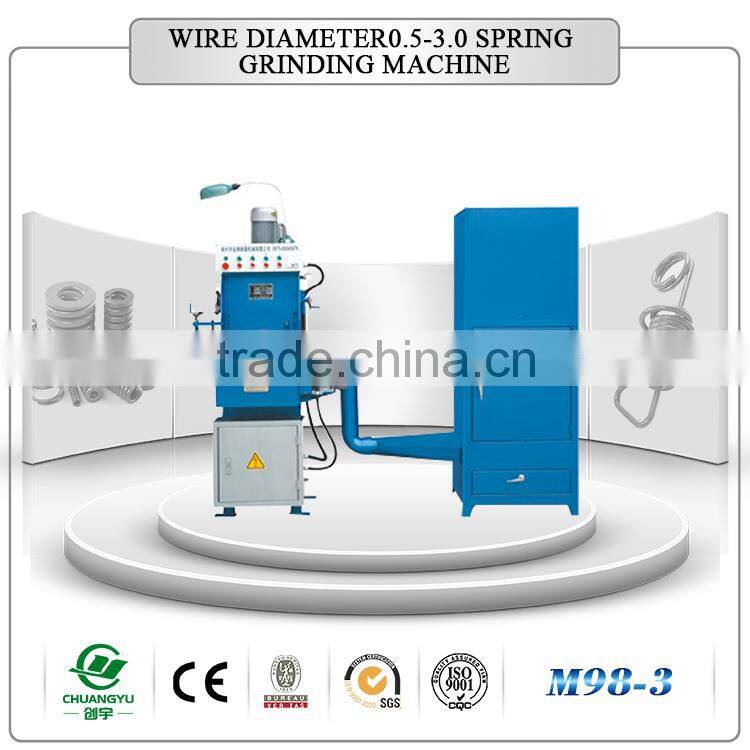

Chuangyu High Precision Mechanical Spring Grinding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Chuangyu
Model Number:
M98-3
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Chuangyu Best Selling Mechanical Spring End Grinding MachineNegotiableMOQ: 1 Set -
New Design Mechanical Spring End Grinding MachineNegotiableMOQ: 1 Set
-
Top Grade High Precision Mechanical Spring End Grinding MachineNegotiableMOQ: 1 Set
-
Best Selling High Efficiency Mechanical Spring End Grinding MachineNegotiableMOQ: 1 Set
-
Chuangyu High Output Mechanical Spring Grinding MachineNegotiableMOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
Chuangyu
Model Number
M98-3
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
spring grinding machine1) Wire Diameter 0.5-3.0
2) Outside Diameter of Coil 4.5-40.0
3) Spring Height 5-90
| Model | M98-3 |
| Steel Wire Dia.(mm) | Φ0.5-Φ3.0 |
| Outside Dia of Coil(mm) | Φ4.5-Φ40.0 |
| Spring Height(mm) | 5-90 |
| Top Grinding Head(r/min) | 90 |
| Lower Grinding Head(r/min) | 40 |
| Dimensions(mm) | Φ300XΦ127X40 |
| Feeding Speed | 0.85-2r/min |
| Top Grinding Head | 0.75KW 4P 1400r/min |
| Lower Grinding Head | 0.75KW 4P 1400r/min |
| Feeding Table | 0.37KW 4P 1400r/min |
| Cleaner | 1.5KW 2P 2800r/min |
| Net Weight of Machine(KG) | 600 |
| Power | AC 380V/50Hz |
| Main Machine Size(mm) | 1100*660*1750 |
| Dust Collector Size(mm) | 1100*600*1630 |
|
|
|
Zhejiang Shengzhou ChuangYu Machinery Co.,Ltd. covers an area of 68000 square meters, has 380 employee, and own development research center. The produce has the feature of "fast debugging, precise and accurate, stable and reliable, easy operation".
The machine is enjoyed by Tianjin JL Railway Transport Equipment Ltd., South Huiton Co.,Ltd., China Jianzhong Nuclear Fuel Co., Ltd., Inner Mongolia First Machinery Group Corporation and so on. Combined with social new technology, new material and new equipment constantly emerging, product update and specification extension, making the CNC spring machinery for higher precision, more complex spring and higher automation degree.
| Packaging | In plywood case or according to your request |
| Shipment | Within 4 weeks after receving your deposit |
- Can you send me some spring samples for checking?
- Sure. Before you place the order, samples can be sent to you for checking. What's more, overseas installation and the consequent training is available.
- What payment is acceptable?
- Your payment can be made via L/C,D/A,D/P,T/T,Western Union, Paypal. If you have other preference, please negotiate.
