Specifications
1.CE ISO RoHS SGS2.Quick Delivery
3.Stable High Quality
4.Competitive Price

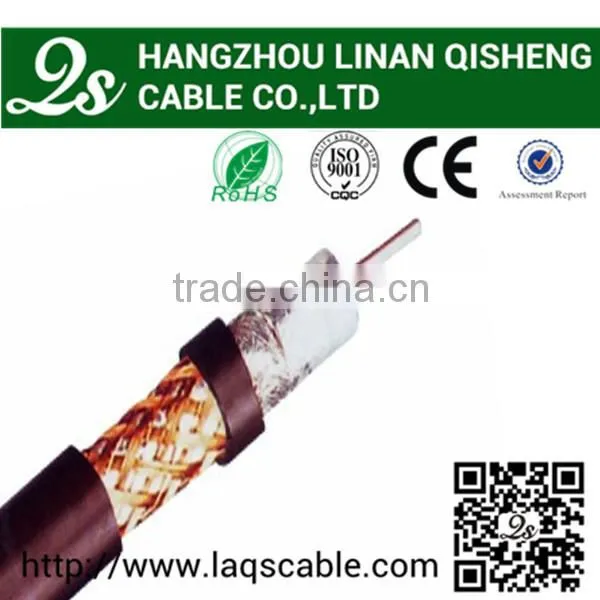

RG8 COAXIAL CABLE
Product Category:50 Ohms Cable
50 Ohm RG8
Physical specification
7x0.7BC+6.4Sold PE+144x0.12BC+9.5PVC
50 Ohm RG8:
1) Optimal structural return loss
2) Remarkable impedance stability
3) Less attenuation
4)CE,RoHS,reach.
Description:
1) Construction
Center Conductor: 7X0.70mm Bare Copper
Dielectric: 6.4mm Solid PE
Shield: Bonded Al Foil
Braid Coverage: 96% Bare Copper
Jacket: 9.5mm PVC
2) Characteristics
Impedance: 50+/-2 Ohms
Capacitance: 29.5+/-3 pF/Ft
Velocity of Propagation: 66%
SRL: 15dB (10 to 300 MHz) 100% Swept Tested
3) Attenuation (dB/100M)
10MHz 2.0
20MHz 3.0
50MHz 4.8
100MHz 7.8
200MHz 10.6
500MHz 17.2
800MHz 24.0
1000MHz 27.5
4) Mechanical Properties
Minimum Bending Radius 50mm
Weight +/-127 kg/km
Applications:
1) CATV-community antenna television
2) CCTV-closed-circuit television
3) DBS-direct broadcasting satellite
Entrance
Our Workshop
Packaging
shipping
Our products
we also have other products for you reference :
Coaxial Cable:
RG58,RG59, RG6, RG7,RG8, RG8X,RG11,RG213,RG214,RG174.
RG179,RG316, 17vatc, 19vatc, QR400, QR500, QR540, KX6, KX8,
CT100, CT125, CT165, BT3002, SAT602, SAT502,SAT703, 3C-2V,
5C-2V, 7C-2V,3D-2V, 5D-2V, 3D-FB, 5D-FB,7D-FB,8D-FB, 10D-FB etc.
*Lan Cable:CAT5, CAT5e UTP/FTP/SFTP, CAT6 UTP/FTP/SFTP, CAT6A, etc.
*Electric Wire
*Speaker Cable
*Control Cable
*Combined Cable
*Patch cord
hot sale network cable cat.6 cat.6 network cable
hot sale coaxial cable rg58 hot sale coaxial cable rg6
