Specifications
1.CE ISO RoHS ETL SGS2.Quick Delivery
3.Stable High Quality
4.Competitive Prices
We are OEM with 10 year-experience we can supply all kinds of coaxial cable with good quality and competitive price .

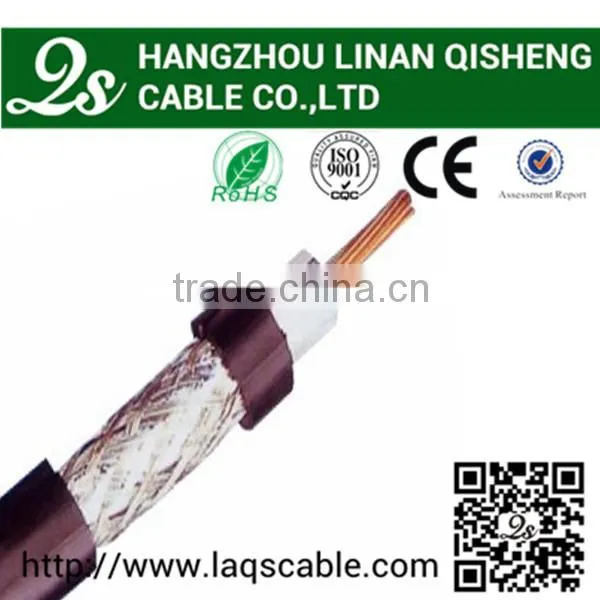

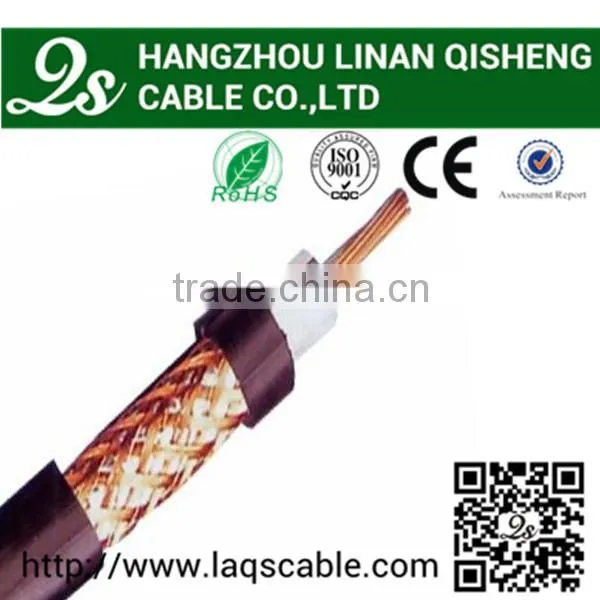

RG6 coaxial cable
1)Construction
| Inner Conductor: | 1.02±0.01mm CCS |
| Insulation: | 4.80±0.05mm Foam PE |
| Shield: | Al Foil/Bonded Al Foil |
| Braid Coverage: | 40%-95%Al-Mg/CCA |
| Jacket: | 7.00±0.05mm PVC |
| Jelly/APD | Per Customers Special Requirement |
2)Characteristics
| Sparker Test: | 4000VAC |
| Impedance: | 75±3 Ohm |
| Capacitance: | 50±3pF/m |
| Velocity of Propagation: | 85% |
| Return Loss: | 20dB min (5-2300Mhz) |
3)Attenuation:
| Attenuation | [@68°F.(20°C.)] | |
| Frequency(Mhz) | Maximum (dB/100 ft.) | Maximum (dB/100m) |
| 5 | 0.58 | 1.9 |
| 50 | 1.5 | 4.9 |
| 100 | 2.0 | 6.5 |
| 200 | 2.8 | 9.2 |
| 400 | 4.1 | 13.6 |
| 700 | 5.6 | 18.4 |
| 900 | 6.2 | 20.3 |
| 1000 | 6.5 | 21.4 |
| 1450 | 8.0 | 26.2 |
| 1800 | 8.5 | 27.9 |
| 2100 | 9.5 | 31.1 |
| 2250 | 10.0 | 34.0 |
| 3000 | 11.4 | 37.5 |
our company is engaged in cables making, our main products comprise all kinds of coaxial cable ,lan cable ,speaker cable, low voltage electric cable etc,with many years of rich experience in cable Industry ,our company is commited to meet the customer's individual request ,always with the "technical innovation ,strict management ,quality first service foremost "the concept of continuous innovation ,to build a global leader in the cable manufacturer's goal.
Entrance
Application
Packing Options:
--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.
--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,
--200m or 250m per Drum, two drums per carton,
--305m/Wooden Drum, one drum per outer carton or pallet loading,
--500m/Wooden Drum, one drum per outer carton or pallet loading,
--1000m or 3000m wooden drum, then pallet loading.
*We can also offer customized OEM packing according to clients' request
shipping
1. Quick Response --All inquiries on our products will be replied within 24 hours.
2. Professional Quotation --All pricing will be made on customers' detailed specifications & requirements.
3. OEM & ODM Service
--We can print your own brand on our cable printing with foot or meter marking.
--Make customized designs for stickers, drums, outer cartons, etc.
4. Stable Quality --All materials and products passed restrict QC procedures, compliant with international standards.
5. Fast Delivery --LCL orders, 15 Days after confirmation; FCL orders, 20 days after confirmation.
6.Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients
we also have other products for you reference :
Coaxial Cable:
RG58,RG59, RG6, RG7,RG8, RG8X,RG11,RG213,RG214,RG174.
RG179,RG316, 17vatc, 19vatc, QR400, QR500, QR540, KX6, KX8,
CT100, CT125, CT165, BT3002, SAT602, SAT502,SAT703, 3C-2V,
5C-2V, 7C-2V,3D-2V, 5D-2V, 3D-FB, 5D-FB,7D-FB,8D-FB, 10D-FB etc.
*Lan Cable:CAT5, CAT5e UTP/FTP/SFTP, CAT6 UTP/FTP/SFTP, CAT6A, etc.
*Electric Wire
*Speaker Cable
*Control Cable
*Combined Cable
*Patch cord
if u are interested in our products please feel free to contact me ,these are my contacts following :
skype:xiaqingen
mobile :008618667002950
QQ:505688385
telephone:0086057161109618
my work time :7am-10pm( beijing time ).
hot sale network cable cat.6 cat.6 network cable
hot sale coaxial cable rg58 hot sale coaxial cable rg6
