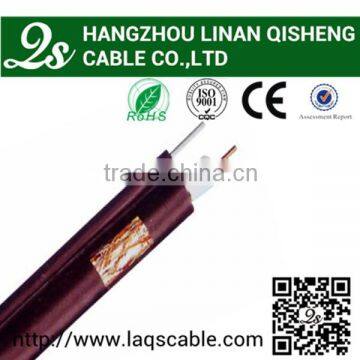

Help CenterCoaxial Cable Rg6,rg11with Messenger OEM
Related Products
-
Factory Outlet Making Coaxial Cable Rg6,rg58,rg59 With Comepetive PriceUS$ 0.05 - 0.5MOQ: 15 Kilometers -
Factory Outlet Approve RoHS,CE,ISO9002 Coaxial Cable Rg59 With Power Line Applied in CCTVUS$ 0.05 - 0.5MOQ: 15 Kilometers
-
10year-experience Manufacturer Producing Coaxial Cable Rg59 With Power Line Applied in CCTVUS$ 0.05 - 0.5MOQ: 15 Kilometers
-
Coaxial Cable Rg8 50ohm With High Quality and Lower Price Supplying Free SampleUS$ 0.05 - 0.5MOQ: 10 Kilometers
-
Coaxial Cable Rg8US$ 0.05 - 0.5MOQ: 10 Kilometers
Specifications
1.CE ISO RoHS SGS2.Quick Delivery
3.Stable High Quality
4.Competitive Price
RG6 COAXIAL CABLE
1)Construction
| Inner Conductor: | 1.02±0.01mm CCS |
| Insulation: | 4.80±0.05mm Foam PE |
| Shield: | Al Foil/Bonded Al Foil |
| Braid Coverage: | 40%-95%Al-Mg/CCA |
| Jacket: | 7.00±0.05mm PVC |
| Jelly/APD | Per Customers Special Requirement |
2)Characteristics
| Sparker Test: | 4000VAC |
| Impedance: | 75±3 Ohm |
| Capacitance: | 50±3pF/m |
| Velocity of Propagation: | 85% |
| Return Loss: | 20dB min (5-2300Mhz) |
3)Attenuation:
| Attenuation | [@68°F.(20°C.)] | |
| Frequency(Mhz) | Maximum (dB/100 ft.) | Maximum (dB/100m) |
| 5 | 0.58 | 1.9 |
| 50 | 1.5 | 4.9 |
| 100 | 2.0 | 6.5 |
| 200 | 2.8 | 9.2 |
| 400 | 4.1 | 13.6 |
| 700 | 5.6 | 18.4 |
| 900 | 6.2 | 20.3 |
| 1000 | 6.5 | 21.4 |
| 1450 | 8.0 | 26.2 |
| 1800 | 8.5 | 27.9 |
| 2100 | 9.5 | 31.1 |
| 2250 | 10.0 | 34.0 |
| 3000 | 11.4 | 37.5 |
Entrance

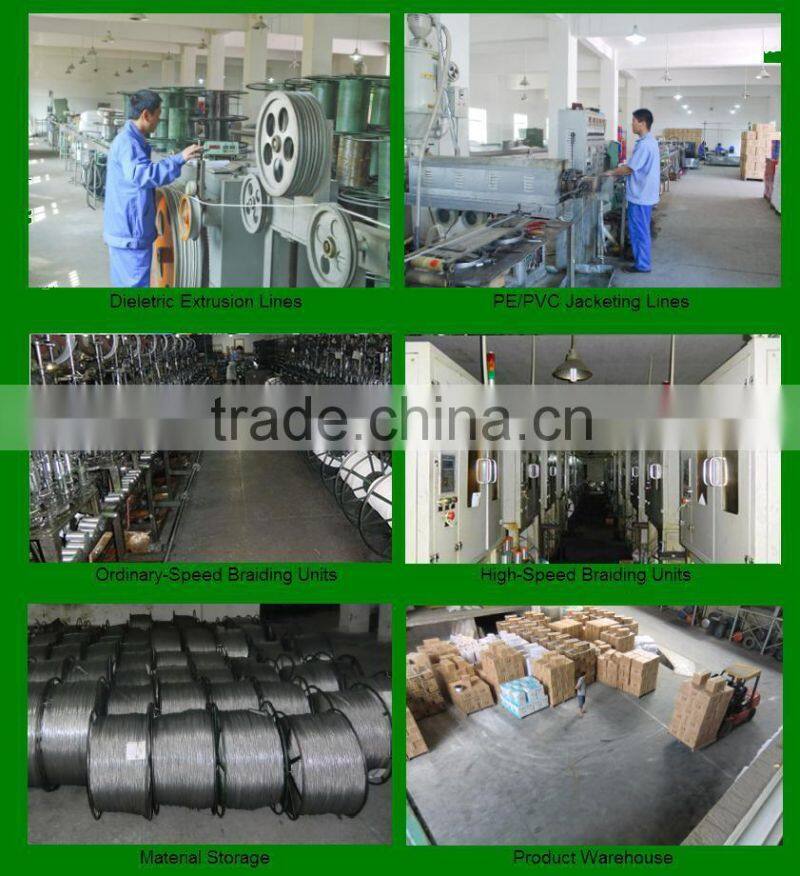

Our Workshop

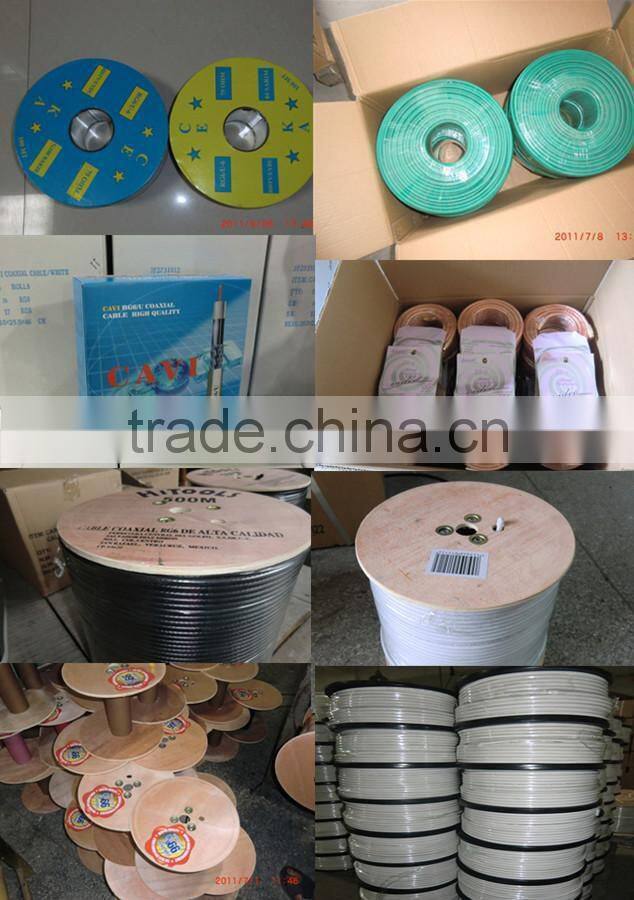

Packaging
shipping
Our products
we also have other products for you reference :
Coaxial Cable:
RG58,RG59, RG6, RG7,RG8, RG8X,RG11,RG213,RG214,RG174.
RG179,RG316, 17vatc, 19vatc, QR400, QR500, QR540, KX6, KX8,
CT100, CT125, CT165, BT3002, SAT602, SAT502,SAT703, 3C-2V,
5C-2V, 7C-2V,3D-2V, 5D-2V, 3D-FB, 5D-FB,7D-FB,8D-FB, 10D-FB etc.
*Lan Cable:CAT5, CAT5e UTP/FTP/SFTP, CAT6 UTP/FTP/SFTP, CAT6A, etc.
*Electric Wire
*Speaker Cable
*Control Cable
*Combined Cable
*Patch cord
